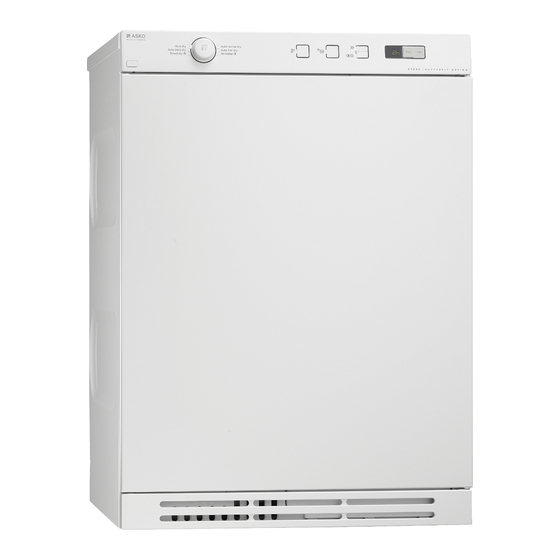

Asko T754HP Operating Instructions Manual
Tumble dryer
Hide thumbs
Also See for T754HP:
- Installation instructions manual (56 pages) ,
- Operating instructions manual (28 pages)
Table of Contents
Advertisement
Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfill your needs for many years
to come. Scandinavian design combines clean lines, everyday functionality,
and high quality. These are key characteristics of all our products and the
reason they are greatly appreciated throughout the world.
To ensure that you get the most out of your new machine, we recommend
that you read the operating instructions before using the machine. The
operating instructions also contain information on how to avoid damaging
the environment.
Operating Instructions
Tumble dryer
ASKO T754HP
WARNING: Read the instructions before using the machine.
Advertisement
Table of Contents
Related Manuals for Asko T754HP
Summary of Contents for Asko T754HP
-
Page 1: Operating Instructions
Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and fulfill your needs for many years to come. Scandinavian design combines clean lines, everyday functionality, and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world. -
Page 2: Table Of Contents
Contents Before using your machine for The machine loses all power during a the first time program Drying takes too long Laundry labels Error messages Safety instructions Technical information Safety Technical data Transport/Winter storage Standard tests Packing material Recycling Service Vented dryers Before contacting the service division Child safety... -
Page 3: Before Using Your Machine For The First Time
Before using your machine for the first time Laundry labels Certain materials are not suitable for tumble- drying. Always check and follow the instructions on each item’s laundry label. You can find more information in the Advice and tips before you tumble-dry chapter. -
Page 4: Safety Instructions
Safety instructions Safety Read the operating instructions and keep them in a safe place! • The machine must not be used for drying items that have been dry-cleaned at home or fabrics that may contain residues of flammable liquids. • The appliance is not intended for use by young children or infirm persons without supervision. -
Page 5: Vented Dryers
Safety instructions To minimize the risk of fire in a tumble • Undergarments that contain metal dryer, the following should be observed: reinforcements should not be placed in a • Items that have been spotted or soaked tumbledryer. Damage to the tumble dryer with vegetable or cooking oil constitute a can result if metal reinforcements come fire hazard and should not be placed in a... -
Page 6: Child Safety
Child safety General WARNING! Do not allow children to play with the tumble dryer. • If the door is opened when a program is running the garments may be very hot, with a risk of burn injuries. • The tumble dryer does not start automatically when the door is closed (if a child pulls the door shut from the inside, for example). -
Page 7: Description Of The Tumble Dryer
Description of the tumble dryer Main power switch Lint filter Condensed water container Outer door Panel Evaporator and filter Serial Number... -
Page 8: Advice And Tips Before You Tumble-Dry
Advice and tips before you tumble-dry Static electricity Here are some tips that may help you before you begin tumble-drying. To reduce the risk of static electricity in the laundry after tumble drying you can: Have the clothes been spun? •... -
Page 9: Tumble Drying
Tumble drying Below are step-by-step instructions to help you achieve the best possible tumble-drying results. Sort your fabrics You will achieve the most uniform drying results if the items are made of the same type of material. Do up zips and buttons, fasten belts, sort the items and adjust the load and temperature. -
Page 10: Select The Program
Tumble drying Select the program Programme selector Start Stop Main power switch Options buttons Display window Select a program by turning the program selector. An LED lights next to the selected program. Use the option buttons to select any options. Guidelines as to what specific Timed dry programs can be used for:... -
Page 11: Program Chart
Tumble drying Program chart Here we present the energy and time consumption of a few different programs. The table shows the effect of using different spin speeds when washing the load. Consumption can vary depending on room temperature, humidity, load, variations in the power supply and selected options. For the consumption values given below, the requirements are as follows: Temperature of intake air: 23 °C... -
Page 12: Selecting Options
Tumble drying Selecting Options Delayed Start By selecting options, you can tailor a drying program to suit your Select a program and then press Delayed Start. requirements. The available options depend on Press the button to select a delayed start of 1 the selected program. -
Page 13: Drying Program Finished
Tumble drying Drying program finished The text "End" is shown on the display for 2 minutes. The machine then turns off. The compressor’s cooling fan continues to run after the program finishes, but stops automatically or when any button/knob is activated. -
Page 14: Care And Cleaning
Care and cleaning Cleaning the lint filter 3. Use your hand or a soft cloth to remove the The lint filter must be cleaned after each load. lint from all sides of the filter. If necessary, 1. Lift the filter from the holder in the door. use a damp sponge and a small amount of washing-up liquid to remove any deposits. -
Page 15: Emptying The Condensed Water Container
Care and cleaning Emptying the condensed water Cleaning the evaporator filter and container evaporator The evaporator filter (A+B) should be cleaned after every 10 uses of the machine and the evaporator (C) when necessary. 1. Turn off the Main power switch and open the outer door. -
Page 16: Cleaning The Outside Of The Machine
Care and cleaning 5. Wipe the net filter (A). Brush the lint from the filter with your hand. Use a soft, dry cloth to NOTE! remove any deposits. Avoid touching the ribs on the evaporator. They are very thin and easily damaged. If the ribs are bent or damaged, the efficiency of the condenser is greatly impaired, as is the drying result. -
Page 17: Troubleshooting
Troubleshooting The machine will not start Drying takes too long • Check that the lint filter is not blocked. See Check the Care and cleaning chapter. • that the door is properly closed. • Empty the condensed water container. Clean •... -
Page 18: Technical Information
Technical information Technical data Height: 850 mm Width: 595 mm Depth: 585 mm Weight (net): 52 kg Cylinder volume: 112 l Max. drying capacity: 7 kg Speed: 50-55 vrt/min Rated power: See type plate. Drum material: Stainless steel Outer casing material: Powder-coated and hot-galvanized sheet steel or stainless steel. -
Page 19: Service
Service Before contacting the service division See the Troubleshooting and Care and cleaning chapters to see whether you can rectify the problem. If you need to contact the service division, make sure that you know the model designation, type designation and serial number. -
Page 20: Installation
Stacking WARNING! The tumble dryer can be placed on top of a ASKO washing machine. Use the two foot cups Do not start the machine until it has been in found in the document bag included with the position for 24 hours. If for some reason the... -
Page 21: Adjusting The Feet
Installation 4. Attach the plastic cups for fixing the tumble 7. Lower the tumble dryer’s front feet into the dryer’s front feet to the washing machine’s plastic cups and adjust the tumble dryer to top cover. This is essential, as only when the ensure it is level. -
Page 22: Condensed Water
Installation Condensed water Electrical installation The machine is supplied as shown in Option 1 Connect the machine by plugging it into an (inset). This means that the condensed water earthed wall socket. The electrical wall socket is pumped into the condensed water container, must be placed outside of the installation area which must be removed and emptied by hand. -
Page 23: Door Hanging
Door hanging 1. Hinge pins (top and bottom) 4. Locking hook 2. Cover plate 5. Hinges (left + right side) 3. Plastic plugs (on the upper and lower edges) 6. Plinth... -
Page 24: Follow These Instructions
Door hanging You can choose whether the door is hung on the 6. Move the plastic plugs on the upper and right or the left. lower edges of the door. Use a flat-bladed screwdriver to remove the plugs. Follow these instructions: 7. - Page 25 Your notes...
- Page 26 Your notes...
- Page 27 Your notes...
-
Page 28: Quick Guide
The text ”End” is shown on the display for 2 minutes. The machine then turns off. Clean the lint filter after each load. Close the door. We reserve the right to make changes. www.asko.com TD70.1 T754HP W AU/NZ en (04-15)
