Dear Customer,
Thank you for choosing this quality product from ASKO. We hope it will meet your
expectations and fulfill your needs for many years to come. Scandinavian design
combines clean lines, everyday functionality, and high quality. These are key charac-
teristics of all our products and the reason they are greatly appreciated throughout
the world.
To ensure that you get the most out of your new machine, we recommend that you
read the operating instructions before using the machine. The operating instructions
also contain information on how to avoid damaging the environment.
Operating Instructions
Tumble dryer

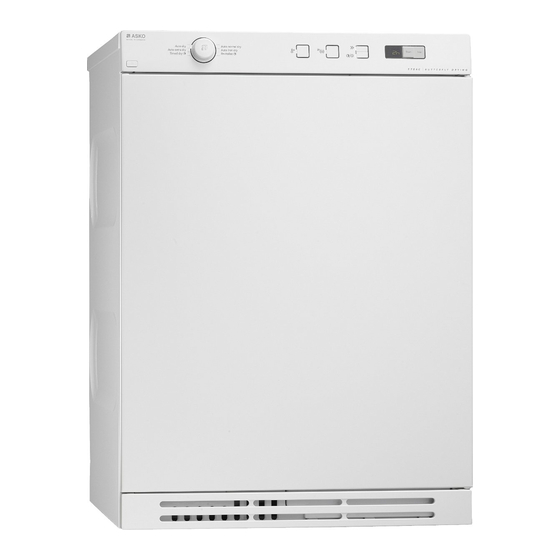

ASKO T754 W
WARNING: Read the instructions before using the machine.
Advertisement
Table of Contents
Related Manuals for Asko T754 W
Summary of Contents for Asko T754 W
-
Page 1: Dear Customer
Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and fulfill your needs for many years to come. Scandinavian design combines clean lines, everyday functionality, and high quality. These are key charac- teristics of all our products and the reason they are greatly appreciated throughout the world. -
Page 2: Table Of Contents
Contents Before using your machine for the Technical information first time Technical data Important safety instructions Service and guarantee Grounding instructions Before contacting the Customer Care Packing material Center Disposal Installation instructions Child safety Positioning the tumble dryer General Adjusting the feet Built-in Description of the tumble dryer Air exhaust... -
Page 3: Before Using Your Machine For The First Time
Before using your machine for the first time Do you need this Use&Care Guide in Spanish? Log on to www.askona.com/customer-care to download. ¿Necesita esta Instrucciones de uso y cuidado en español? Entre en www.askona.com/customer-care. Laundry labels Certain materials are not suitable for tumble drying. -
Page 4: Important Safety Instructions
• The interior of the machine should be cleaned WARNING - To reduce the risk of fire, electric periodically by an authorized ASKO service shock, or injury to persons when using your agent. appliance, follow basic precautions, including •... -
Page 5: Grounding Instructions
Important safety instructions Grounding instructions Installation A) Grounding instructions for a See the section Installation instructions. grounded, cord-connected appliance Packing material In the event of malfunction or breakdown, grounding will reduce the risk of electric shock Please sort waste materials in accordance with by providing a path of least resistance for electric local guidelines. -
Page 6: Child Safety
Child safety General WARNING! Do not allow children to play with the tumble dryer. • If the door is opened when a program is running, the garments may be very hot, with a risk of burn injuries. • The tumble dryer does not start automatically when the door is closed (if a child pulls the door shut from the inside, for example). -
Page 7: Description Of The Tumble Dryer
Description of the tumble dryer Main power switch Outer door Panel Serial number tag and rating plate Lint filter Customer Care Center 1-800-898-1879 www.askona.com... -
Page 8: Advice And Tips Before You Tumble Dry
Advice and tips before you tumble dry Static electricity Here are some tips that may help you before you begin tumble drying. To reduce the risk of static electricity in the laundry after tumble drying, you can: Have the clothes been spun? •... -
Page 9: Operating Instructions
Operating instructions WARNING! To reduce the risk of electric shock or injury to persons, read the "Important Safety Instructions" section before operating this appliance. Below are step-by-step instructions to help you achieve the best possible tumble drying results. Sort your fabrics You will achieve the most uniform drying results if the items are made of the same type of material. -
Page 10: Select The Program
Operating instructions Select the program Start Stop Program selector Display window Main power switch Options buttons Select a program by turning the program selector. An LED lights next to the selected program. Use the option buttons to select any options. Guidelines as to what specific Timed dry programs can be used for:... -
Page 11: Program Chart
Operating instructions Program chart Here we present the energy and time consumption of a few different programs. The table shows the effect of using different spin speeds when washing the load. Consumption can vary depending on room temperature, humidity, load, variations in the power supply, and selected options. For the consumption values given below, the requirements are as follows: Temperature of intake air: 73 °F (23 °C) -
Page 12: Selecting Options
Operating instructions Selecting Options Delayed Start By selecting options, you can tailor a drying program to suit your requirements. Select a program and then press Delayed Start. The available options depend on the selected Press the button to select a delayed start of 1 to program. -
Page 13: Drying Program Finished
Operating instructions Drying program finished The text "End" is shown on the display for 2 minutes. The machine then turns off. NOTE! • Clean the lint filter in the outer door after each load. See the Care and maintenance instructions chapter. WARNING! If the lint filter becomes clogged, the machine’s automatic overheating cut-out may be triggered. -
Page 14: Care And Maintenance Instructions
Care and maintenance instructions Cleaning the lint filter 3. Use your hand or a soft cloth to remove the lint The lint filter must be cleaned after each load. from all sides of the filter. If necessary, use a 1. Lift the filter from the holder in the door. damp sponge and a small amount of washing- up liquid dish soap to remove any deposits. -
Page 15: Troubleshooting
Troubleshooting The machine will not start The machine loses all power during a program Check: The overheating cut-off shuts off the tumble • that the door is properly closed. dryer if the temperature is too high, caused by • that the main power switch is on. lint clogging the lint filter, for instance. -
Page 16: Technical Information
Technical information Technical data Height: 33 1/2'' (850 mm) Width: 23 1/2'' (597 mm) Depth: 23 7/8" (606 mm) Weight (net): 88 lb (40 kg) Cylinder volume: 29,6 gal (112 l) Max. drying capacity: 15 lb (7 kg) Speed: 50-55 rpm Rated power: See serial number tag and rating plate. -
Page 17: Service And Guarantee
Proof of original purchase date from defects in material or workmanship and is required to obtain service under this limited is reported to ASKO within 5 days from date of warranty. purchase. 6. Pickup and delivery. This appliance is intended Residential ASKO Products to be repaired in your home. -
Page 18: Before Contacting The Customer Care Center
The model designation (1) can be found on the Should you need further assistance, you can first page of the operating instructions and on write to ASKO Appliances with any questions or the machine panel. The type designation (2) and concerns at the address below:... -
Page 19: Installation Instructions
WARNING! The tumble dryer can be placed on top of an WARNING - Risk of fire. ASKO washing machine. Use the two foot cups Install the clothes dryer according to the found in the document bag included with the manufacturer's instructions and local codes. - Page 20 Installation instructions 3. Secure the anti-tip device using the screws as 6. Push out the knock-out hole on the back of shown in the picture. the tumble dryer (you don't have to completely remove the knockout, just fold it up far enough for the stacking bracket to fit inside the slot) using a hammer and a screwdriver.
-
Page 21: Adjusting The Feet
Adjusting the feet Install in a closet Screw the feet in or out so that the tumble dryer is ASKO's front panel controls make it possible to both stable and level. install the washers and dryers in a closet. Make sure there is a ½”... -
Page 22: Air Exhaust
NOTE! Asko dryers have a "T-style" exhaust vent that allows you to Vent Excessive duct length and too many bends can... - Page 23 Installation instructions Connecting the exhaust duct to Connecting to a ventilation duct the Left or Right Side Outlet You will need a UL-CSA-approved, 4-inch ridged To connect the exhaust duct to the left or right metal exhaust duct. If a flexible duct is used, it side outlet, follow the steps below: must comply with the Outline for Clothes Dryer 1.
-
Page 24: Electrical Installation
ASKO washers rated 208–240 V have two internal 1. Connect the exhaust duct to a ventilation fuses of 15 A each. exhaust fitting or to a discharge through the The machine should only be connected to a wall. -
Page 25: Electrical Connections
Installation instructions Electrical Connections WARNING! Read the Electrical requirements and grounding instructions before connecting the tumble dryer. Electric models of the dryer are manufactured for a 3-wire connection system. The dryer frame is grounded by a link to the neutral conductor on the dryer terminal block. - Page 26 Installation instructions Connecting a 3-wire Power Cord 5. Connect ground (center) wire of power supply cord to the center, silver-colored terminal WARNING! screw. Tighten screw. 6. Connect the other wires to outer screws. Before starting this procedure, be sure the power 7.
- Page 27 Installation instructions 4. Remove center terminal block screw. 5. Remove ground wire (green with yellow stripes) from external ground connector screw and remove from center terminal block. 6. Connect ground (green) wire of cord to external ground conductor screw. 7. Connect neutral (white) wire of cord under center screw of terminal block.
-
Page 28: Reversing The Door
Reversing the door 1. Hinge pins (top and bottom) 4. Lock hook 2. Cover plate 5. Hinges (left + right side) 3. Plastic plugs (on the upper and lower edges) 6. Toe kick Customer Care Center 1-800-898-1879 www.askona.com... -
Page 29: Follow These Instructions
Reversing the door You can choose whether the door is hung on the 7. Refit the door by loosening the hinge screws right or the left. slightly, affixing the door, and closing it. Tighten the hinges. Replace the Toe kick. Follow these instructions: 1. - Page 30 Notes Customer Care Center 1-800-898-1879 www.askona.com...
- Page 31 Notes Customer Care Center 1-800-898-1879 www.askona.com...
-
Page 32: Quick Guide
The text ”End” is shown on the display for 2 minutes. The machine then turns off. Clean the lint filter after each load. Close the door. We reserve the right to make changes. www.askona.com TD70.1 T754 W US/CA en (01-14)
