3Com WL-603 User Manual page 100

98 C 5: C
HAPTER ONFIGURING THE
R
OUTER
To edit or delete specific existing filtering rules, click on Edit or Delete for
the appropriate filtering rule.

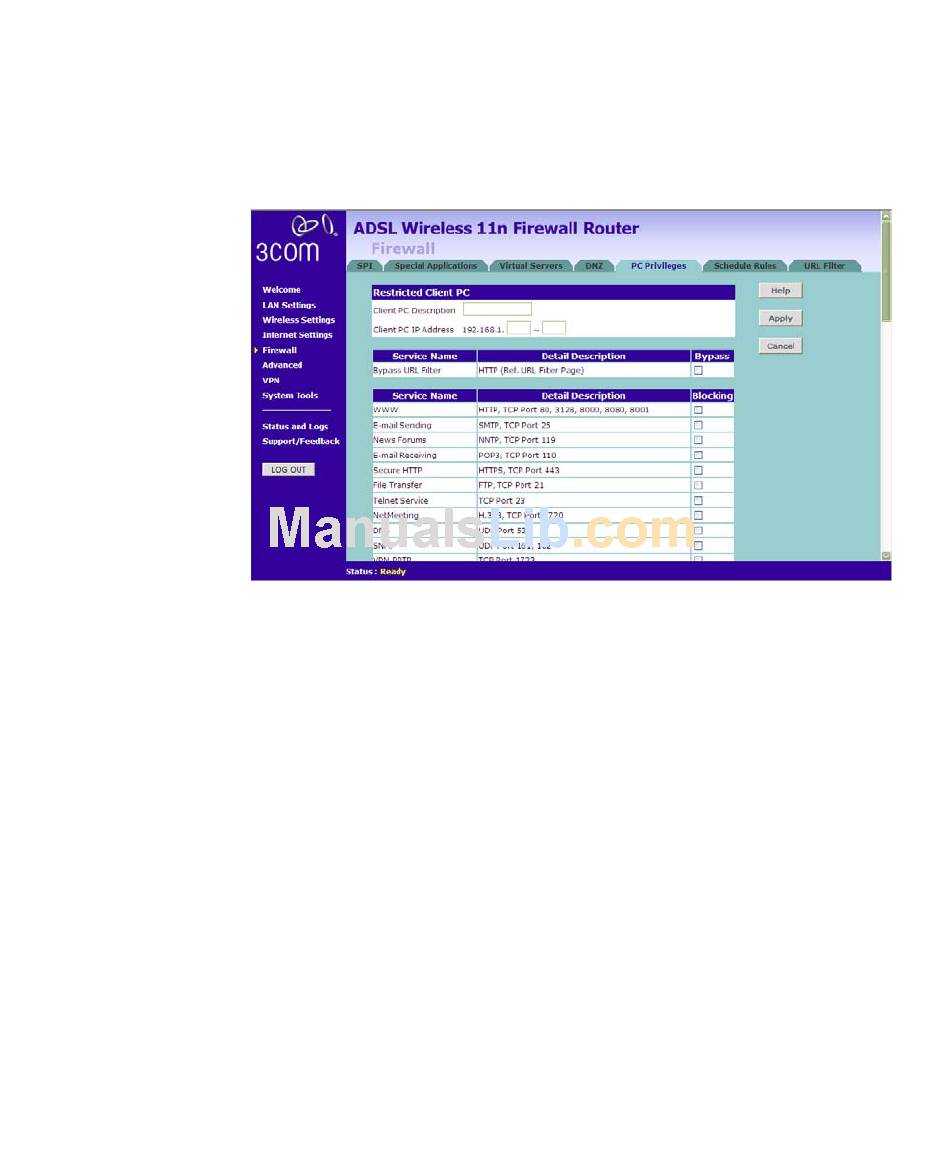

Figure 75 PC Privileges Add PC Screen
1 Enter a description in the Client PC Description field, and the IP address or
IP address range into the Client PC IP Address fields.
2 To bypass the URL Filter, check the corresponding Bypass checkbox. If you
check this option, then the Web sites and keywords defined in this screen
will not be filtered out.
3 Select the services to be blocked. A list of popular services is listed on this
screen, to block a particular service, check the appropriate Blocking
checkbox.
If the service to be restricted is not listed here, you can enter a custom
range of ports at the bottom of the screen, under User Defined Blocked
Ports.
4 If you want the restriction to apply only at certain times, select the
schedule rule to apply from the Schedule Rule drop-down menu.
Note that schedule rules are defined on the Schedule Rules screen
(see page 99).
5 Click Apply to add the settings.
