Swann dvr4-1500 Quick Start Manual

EN
Digital Video Recorder
Quick Start Guide
Welcome!
Lets get started.
C
Connect the DVR to your HDTV (HDMI or VGA)
Connect the HDMI cable (supplied) to the HDMI input on the DVR, and connect the other end to
a spare HDMI input on the TV.
HDMI IN 2/MHL
VGA IN
HDMI IN 1(DVI)
We recommend using the HDMI connection
as it will provide you with the best display quality.
F
Connect to your Home Network
Connect the Ethernet cable (supplied) to the LAN connection on the DVR, and then connect the
other end to a spare port on your router or wireless access point.
It's important that you do this, as this allows you to access the router from your smartphone
or tablet. It also allows the DVR to connect to the Internet to update its internal clock so the
time it shows on the video is always accurate, and to send you email notifications.
A
Congratulations on the purchase of your Swann DVR. This quick start guide will assist you
on getting your DVR up and running as soon as possible. We recommend that you connect
everything and give it a try before you do a permanent installation, to make sure nothing was
damaged during shipping. On the other side is a detailed connection map which illustrates the
various connections on the DVR.
VIDEO IN
A
A)
Video Inputs
B) Video Out
C) HDMI
QH1550230114E | © Swann 2014 1 1
D
Connect the DVR to your TV (RCA/Composite)
Connect the BNC to RCA video cable (supplied) to the video output on the DVR, and connect the
other end to a spare video input on the TV.
If your HDTV has a VGA input
or you have a Monitor with a
VGA connection, connect a
VGA cable (not supplied) to
the VGA output on the DVR,
and connect the other end to
the VGA input on the HDTV or
Monitor.
AUDIO IN
HDMI
VIDEO
OUT
LAN & USB
VIDEO IN VGA AUDIO OUT 12V
If you are using the HDMI cable for connection, you can skip this step.
4
G
Connect the mouse (supplied) to a spare USB port on the DVR.
7

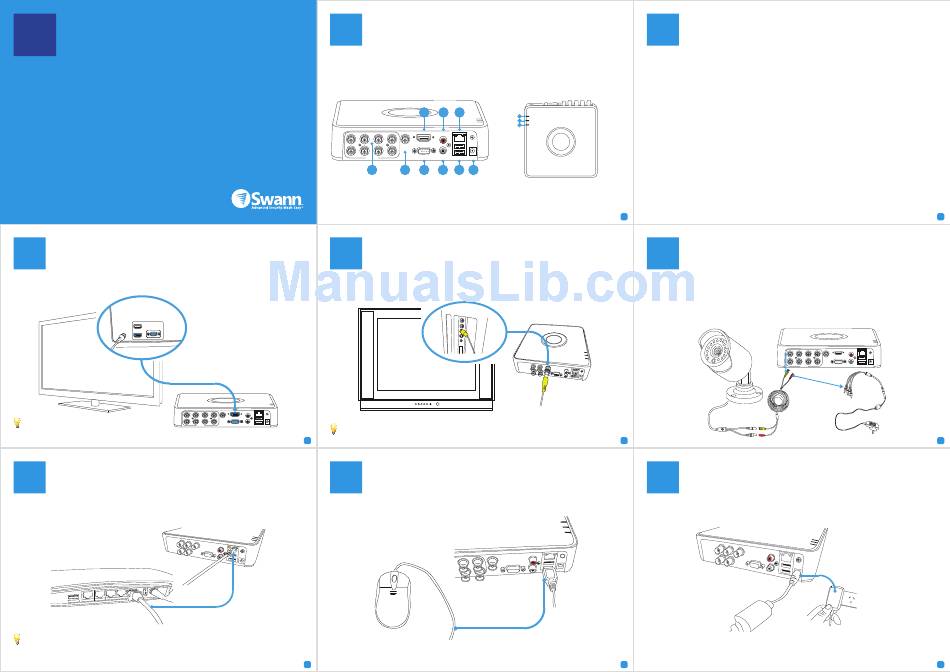

Getting to know your DVR
C E G
J
K
L
AUDIO IN
HDMI
VIDEO
OUT
LAN & USB 12V
VGA AUDIO OUT
B D F H I
D) G) J)
VGA LAN Power LED
E) Audio In H) USB K) LAN LED
F) Audio Out I) Power L) HDD LED

Connect the Mouse

B
What does this mean?
Here are explanations for the various connections and lights on the DVR -
A) Video Inputs – This where you connected the included cameras.
B) Video Out – If you have an older analogue TV, connect this to an available video input.
C) HDMI – If you have a digital TV with HDMI input, connect this to an available input.
D) VGA - If you have a digital TV or a monitor with VGA input, connect this to an available input.
E) Audio In
– For connecting a microphone for two-way communication (like an intercom).
F) Audio Out
- For connecting speakers.
G) LAN – Connect this to your home network so your DVR can connect to the Internet.
H) USB – Connect the mouse here, able to connect a Flash Drive to backup recorded events.
I) Power – This is where you connect the power adapter.
J) Power LED – When the DVR has power, this light will turn on.
K) HDD LED – This will flash when the hard drive is working.
L) LAN LED
– This will flash when there is network activity.
2
E
Connect your Cameras
Included in the box is a set of video & power cables for each camera provided. You will see a
label on each end, denoting which end is plugged into which connection. Connect the yellow
connection for video and the red connection for power. Connect the yellow connection on the
other end of the cable to each of the video inputs on the DVR. Use the supplied power splitter
to connect to the red connection and then connect the power adapter to the power splitter as
illustrated.
VIDEO IN
Connect the
camera to the
video and power
cable.
5
H
Connect the Power Adapter
Connect the power adapter (supplied) to the power input on the DVR. There will be a label on
the power adapter indicating that it is for the DVR and not the cameras.
All the connections have now been completed. You're now ready to run through "The Setup
Wizard" to configure your DVR.
8
3
Connect the
p r o v i d e d
AUDIO IN
power splitter
HDMI
VIDEO
OUT
to the video
LAN & USB 12V
VGA AUDIO OUT
and power
cable, then
connect this
to the power
adapter.
6
9
