Swann DVR4-1160 Setup Manual

A

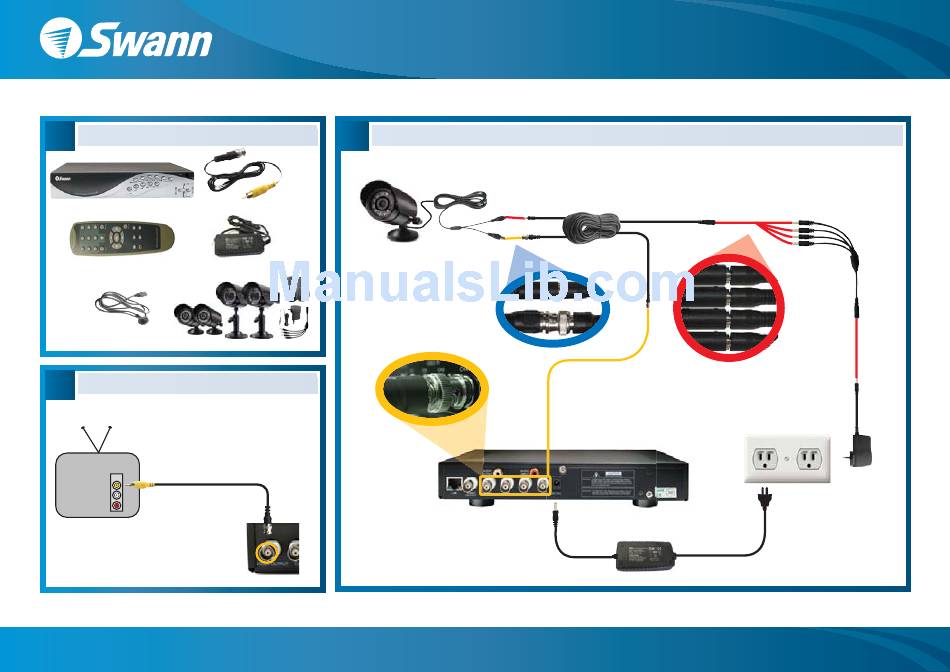

Easy Set Up Components
DVR4-1160 Unit
Remote
Control
Power Adapter
Cable Cameras and Accessories Optional
C
Connecting the DVR to TV
1
Connect the RCA end of the
RCA to BNC cable to the
back of the TV INPUT
socket
2
Connect the BNC plug end
Back of TV
of the cable to the top
VIDEO INPUT socket on
the back of the DVR
INPUT
3
Tune your TV to the
correct INPUT - this is
sometimes labelled A/V,
input, source, L1, L2, etc.
- consult TV manual for details
Swann Communications • Toll Free Technical Support: USA - 1-800-627-2799, Australia - 1300 13 8324 • Email: tech@swannsecurity.com
Easy Setup Guide
B
RCA Cable
Cameras Optional
DVR Power
Adapter
Back of DVR
1
Connect the camera cable's BNC
socket & DC socket to the BNC
plug & DC plug on the extension cable.
2
Connect the other end of the BNC plug of
the extension cable to the camera
connections on the back of the DVR.
DVR4-1160

Camera Connections

3
Connect the DC power sockets on the extension
cables to the power splitter's DC plugs.
4
Connect the power
splitter's DC socket
to the DC plug on
the power supply.
5
Plug in the DVR and
camera power adapter to
power outlets.
SR342-LPM-50010-220609
