Hilti PSA 81 Operating Instructions Manual
Charger, ac adapter, motor vehicle power/adapter
Hide thumbs
Also See for PSA 81:
- Operating instructions manual (17 pages) ,
- Original operating instructions (288 pages) ,
- Operating instructions manual (433 pages)
Related Manuals for Hilti PSA 81
Summary of Contents for Hilti PSA 81
- Page 1 PSA 81/82/85, PUA 81/82 Operating instructions Mode d’emploi Manual de instrucciones Manual de instruções Printed: 07.07.2013 | Doc-Nr: PUB / 5070471 / 000 / 00...
- Page 2 Printed: 07.07.2013 | Doc-Nr: PUB / 5070471 / 000 / 00...
- Page 3 Printed: 07.07.2013 | Doc-Nr: PUB / 5070471 / 000 / 00...
-
Page 4: Table Of Contents
ORIGINAL OPERATING INSTRUCTIONS PSA 81/82, PSA 85, PUA 81, PUA 82 batteries, charger, ac adapter, motor vehicle power adapter 1 These numbers refer to the corresponding illustra- It is essential that the operating instruc- tions. The illustrations can be found on the fold-out tions are read before the using the appli- cover pages. -
Page 5: Description

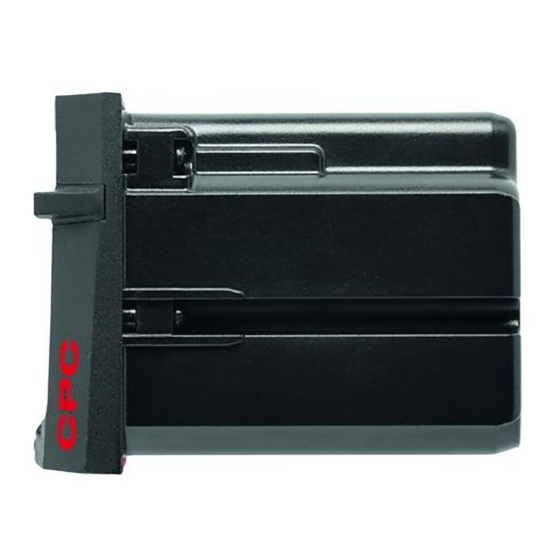

2.1 Use of the product as directed The appliance and its ancillary equipment may present hazards when used incorrectly by untrained personnel The PSA 81 battery powers the Hilti PS 1000 X-Scan. or when used not as directed. This rechargeable Li-ion battery can be charged (after... -
Page 6: Charging Indicators
3.1 PSA 81 battery The PSA 81 battery is equipped with five LEDs that indicate the state of charge. The battery’s state of charge can be displayed by pressing the button on the top of the battery. Up to four green LEDs then light for a few seconds;... -
Page 7: Technical Data
0.24 kg (0.53 lb) Dimensions (L x W x H) 119 x 77 x 21 mm (4.7 x 3.0 x 0.8") PUA 81 AC adapter (for PSA 81 and PRA 84 batteries, PSA 100 monitor) Rated supply current 115…230 V AC frequency 47…63 Hz... -
Page 8: Safety Instructions
0.54 kg (1.19 lb) Dimensions (L x W x H) 143 x 143 x 48 mm (5.6 x 5.6 x 1.9") PUA 82 AC motor vehicle power adapter (for PSA 81 and PRA 84 batteries, PSA 100 monitor) Input voltage 11…36 V... - Page 9 Check that the tool or appliance is switched off before fitting the battery. Use only the Hilti bat- 5.3 Proper organization of the work area teries approved for use with the tool or appliance.
-
Page 10: Before Use
The battery must be charged for at least 2 hours before initial use. 6.2 Charging a battery Insert the PSA 82 at the rear of the Hilti PSA 100 DANGER monitor. Use only the specified Hilti batteries, Hilti mains... - Page 11 5 minutes. WARNING Press the spring catch in until the PSA 82 battery can Do not remove the PSA 81 battery while the tool is be removed without resistance. in operation. This could cause loss of data. Remove 7.3 Options for charging the battery...
-
Page 12: Care And Maintenance
1 blinking) before the battery cells suffer damage. water. Charge the batteries with the Hilti chargers approved NOTE for use with Li-ion batteries. Do not use any other liquids as these may damage NOTE the plastic components. -
Page 13: Disposal
Most of the materials from which Hilti tools or appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, Hilti has already made arrangements for taking back old tools and appliances for recycling. -
Page 14: Manufacturer's Warranty
