For 24 hour mode (same set of programmes for each day of the week)
a) Press PROG (Fig 2) 3 times to show the 1
(Event 1) (Fig.11)
b) Use + or – buttons (Fig.3) to adjust the TIME (press and hold to change in
10 min increments)
c) Use L or M buttons (Fig.8) to adjust the TEMPERATURE
d) Press PROG (Fig.2) to move to next preset time & temperature (Event 2)
e) Repeat steps b, c & d for programming Events 3, 4 5 & 6
Programming your HOT WATER
To set the hot water programme press the PROG button (Fig.2) until Event A (1st
ON) appears on the display (Fig.13).
b) Use + or – buttons (Fig.3) to adjust the TIME (press and hold to change in 10
minute increments)
c) Use L or M buttons (Fig.8) to adjust the TEMPERATURE
d) Press PROG (Fig.2) to move to Event b - 1st OFF
e) Repeat steps b, c & d for programming Events C & d (2nd ON & 2nd OFF)
NB. Right hand LED will be lit when the Water programme is running
Returning to RUN mode
Press PROG until the colon in the LCD display starts to flash (Fig.14)

Temporary User Overrides

The TP9 has several useful overrides which can be selected without affecting
the thermostat programming
• Temporary override of programmed temperature – press L or M (Fig.8)
until required temperature is displayed (override will automatically cancel at
beginning of next programmed event)
•
+1HR = if pressed while the programme is on, the hot water will remain on
for an extra hour. If it is pressed whilst the programme is off, the hot water
will come on immediately for 1 hour then go off (Fig.15)
•
Frost Protection – a constant low temperature can be selected whilst away
from home - press L L L L L & M M M M M together (Fig.16) until display resembles (Fig.17)
Hot Water only (during summer) - press L L L L L & M M M M M together (Fig.16) until
•
display resembles (Fig.18)
Summer Time / Winter Time Clock
•
To change from Summer to Winter (clocks back) - press and hold - (Fig.19)
•
To change from Winter to Summer (clocks forward) - press and hold + (Fig.19)
Low Battery
If the unit is disconnected from the mains supply a low battery symbol will flash
in the LCD display (Fig.20). Programmes will be retained for 15 days. On the
16th day of continuous disconnection the display will show just a colon. When
powere is eventually restored your programmes will be remebered - you will
only need to reset the time and the day of the week.
st
pre-set time and temperature

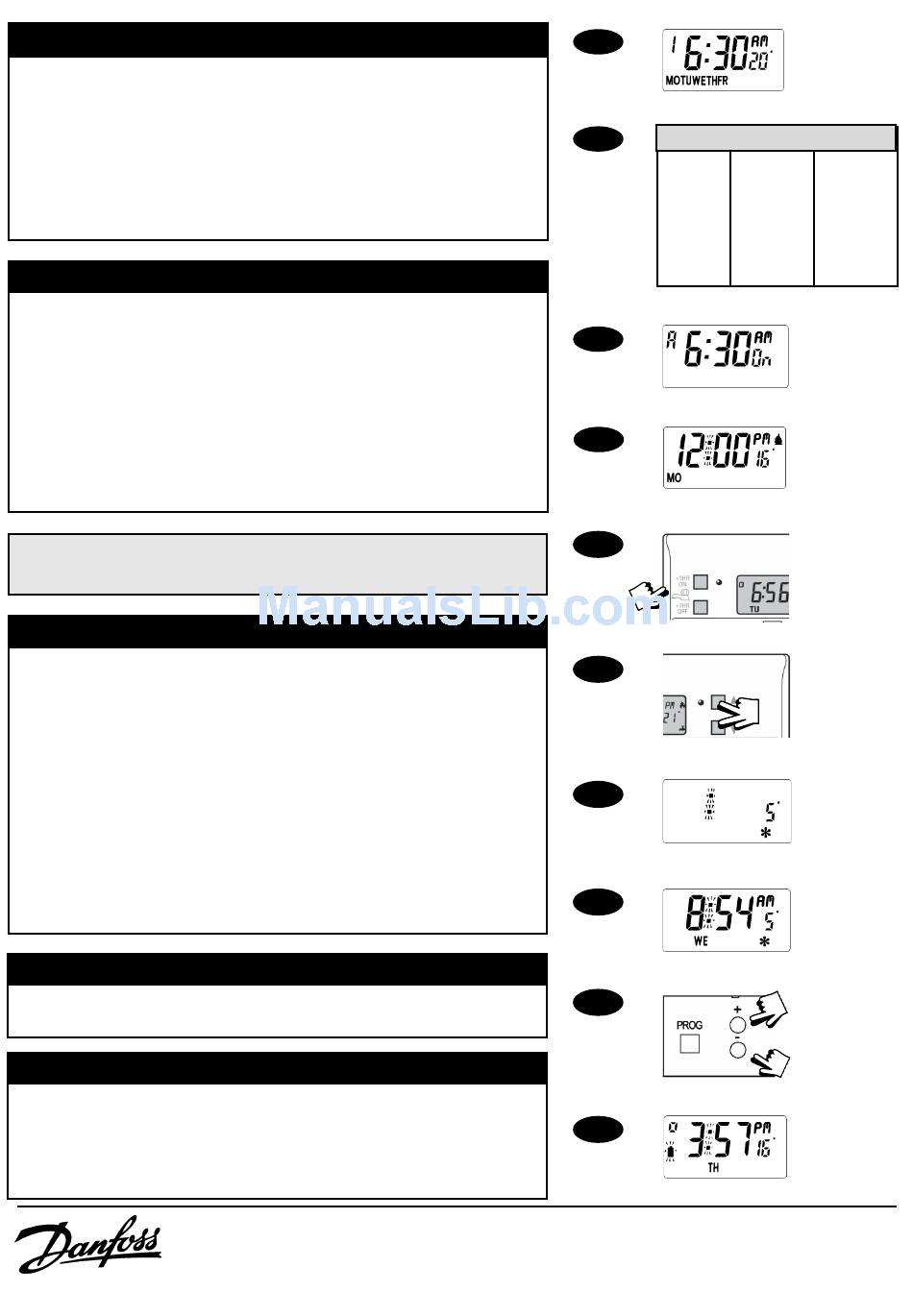

Fig.11
Fig.12 Domestic Hot Water Times
Setting Function
A
b
C
d
Fig.13
Fig.14
Fig.15
Fig.16
Fig.17
Fig.18
Fig.19
Fig.20
Email: danfossrandall@danfoss.com
Website: www.danfoss-randall.co.uk
Pre-set
On 6:30AM
Off 8:30AM
On 5:30PM
Off 10:30PM
Clocks forward
(Spring)
Clocks back
(Autumn)
