Danfoss TP9000 Si User Instructions

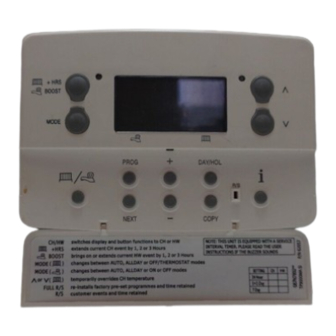

The TP9000 is a programmable room thermostat with combined hot water time
control.
A programmer allows you to set On and Off time periods to suit the lifestyle of the
occupier.
A room thermostat works by sensing the air temperature, switching on the heating
when the air temperature falls below the thermostat setting, and switching it off
once this set temperature has been reached. A programmable room thermostat
lets the occupier choose what times they want the heating to be on and what
temperature it should reach while it is on. It will allow you to select different
temperatures in your home at different times of the day (and days of the week) to
meet your particular needs.
The TP9000 controller is also unique in that it also controls the hot water timings in
your home.
Before beginning programming, you should reset the unit. Open the flap on the front
of the clock. Press the RESET button using a non-metallic object (e.g. end of a bic biro
pen top). (Fig 1)
A. Setting the correct Time and Day
The time and date are factory set and do not need to be set.
B. Accepting the Factory Settings
The TP9000 comes ready programmed with a set of Hot Water times and Central Heating
times and temperatures to suit the average household. If you wish to alter these settings
follow instructions below.
Your unit is set to operate in 7 day mode.
7 day – different settings for each day of the week
Please follow the instructions below:
C. Programming your central heating - 7 day mode
• A)Press the CH/HW button until the CH mode is selected (Fig 2a)
• B) Press PROG to show the 1st pre-set time and temperature (Event 1 Mon) (Fig 2b)
C) Use + or – buttons to adjust the TIME (press and hold to change in 10 min
•
increments). (Fig 3)
• D) Use Λ or V buttons to adjust the TEMPERATURE. (Fig 4)
• E) Press NEXT to move to next preset time & temp (Event 2) (Fig 5)
• F) Repeat steps c, d and e for programming Events 3, 4, 5 & 6.
G) to select the next day, press DAY/HOL and repeat steps c, d, and e (Fig 6)
•
• H) repeat process as necessary to complete programming for all 7 days
To return to normal operating mode press and hold PROG until screen returns to the current
time. (Fig 7)
D. Programming your hot water - 7 day mode
• A)Press the CH/HW button until the HW mode is selected (Fig 8)
• B) Press PROG to show the 1st pre-set time (Event 1 Mon)
• C) Use + or – buttons to adjust the TIME (press and hold to change in 10 min
increments). (Fig 9)
• D) Press NEXT to move to next preset time(Event 2) (Fig 10)
• E) Repeat steps c and d for programming Events 3, 4, 5 & 6.
• F) To select the next day, press DAY/HOL and repeat steps c, d, and e (Fig 11)
• G) Repeat process as necessary to complete programming for all 7 days
To return to normal operating mode press and hold PROG until screen returns to the current time.
(Fig 12)
TP9000 Si
User Instructions
