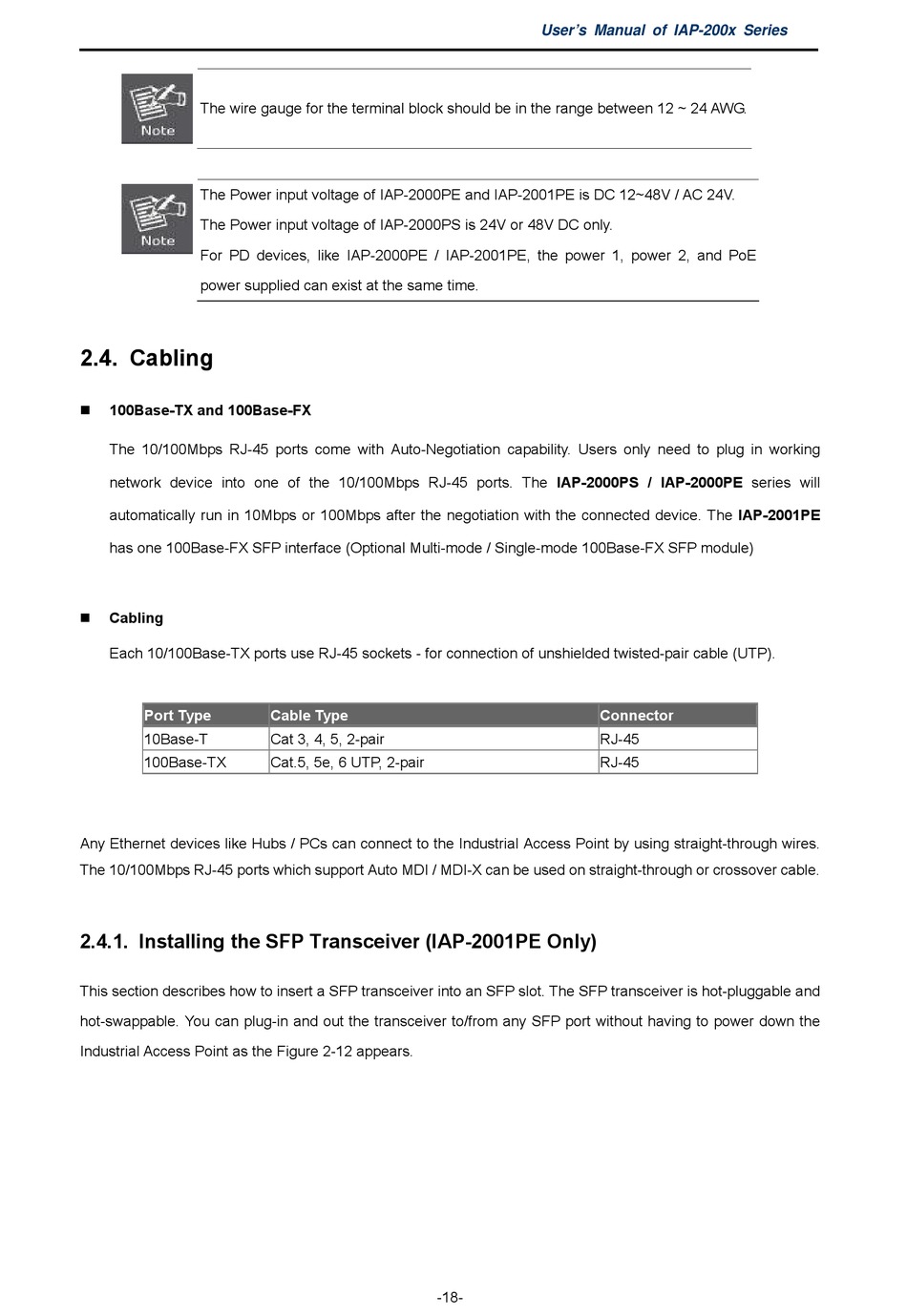

The wire gauge for the terminal block should be in the range between 12 ~ 24 AWG.
The Power input voltage of IAP-2000PE and IAP-2001PE is DC 12~48V / AC 24V.
The Power input voltage of IAP-2000PS is 24V or 48V DC only.
For PD devices, like IAP-2000PE / IAP-2001PE, the power 1, power 2, and PoE
power supplied can exist at the same time.

2.4. Cabling

 100Base-TX and 100Base-FX
The 10/100Mbps RJ-45 ports come with Auto-Negotiation capability. Users only need to plug in working
network device into one of the 10/100Mbps RJ-45 ports. The IAP-2000PS / IAP-2000PE series will
automatically run in 10Mbps or 100Mbps after the negotiation with the connected device. The IAP-2001PE
has one 100Base-FX SFP interface (Optional Multi-mode / Single-mode 100Base-FX SFP module)
 Cabling
Each 10/100Base-TX ports use RJ-45 sockets - for connection of unshielded twisted-pair cable (UTP).
Port Type
10Base-T
100Base-TX
Any Ethernet devices like Hubs / PCs can connect to the Industrial Access Point by using straight-through wires.
The 10/100Mbps RJ-45 ports which support Auto MDI / MDI-X can be used on straight-through or crossover cable.

2.4.1. Installing the SFP Transceiver (IAP-2001PE Only)

This section describes how to insert a SFP transceiver into an SFP slot. The SFP transceiver is hot-pluggable and
hot-swappable. You can plug-in and out the transceiver to/from any SFP port without having to power down the
Industrial Access Point as the Figure 2-12 appears.
Cable Type
Cat 3, 4, 5, 2-pair
Cat.5, 5e, 6 UTP, 2-pair
-18-
User's Manual of IAP-200x Series
Connector
RJ-45
RJ-45
