Summary of Contents for Holman T2

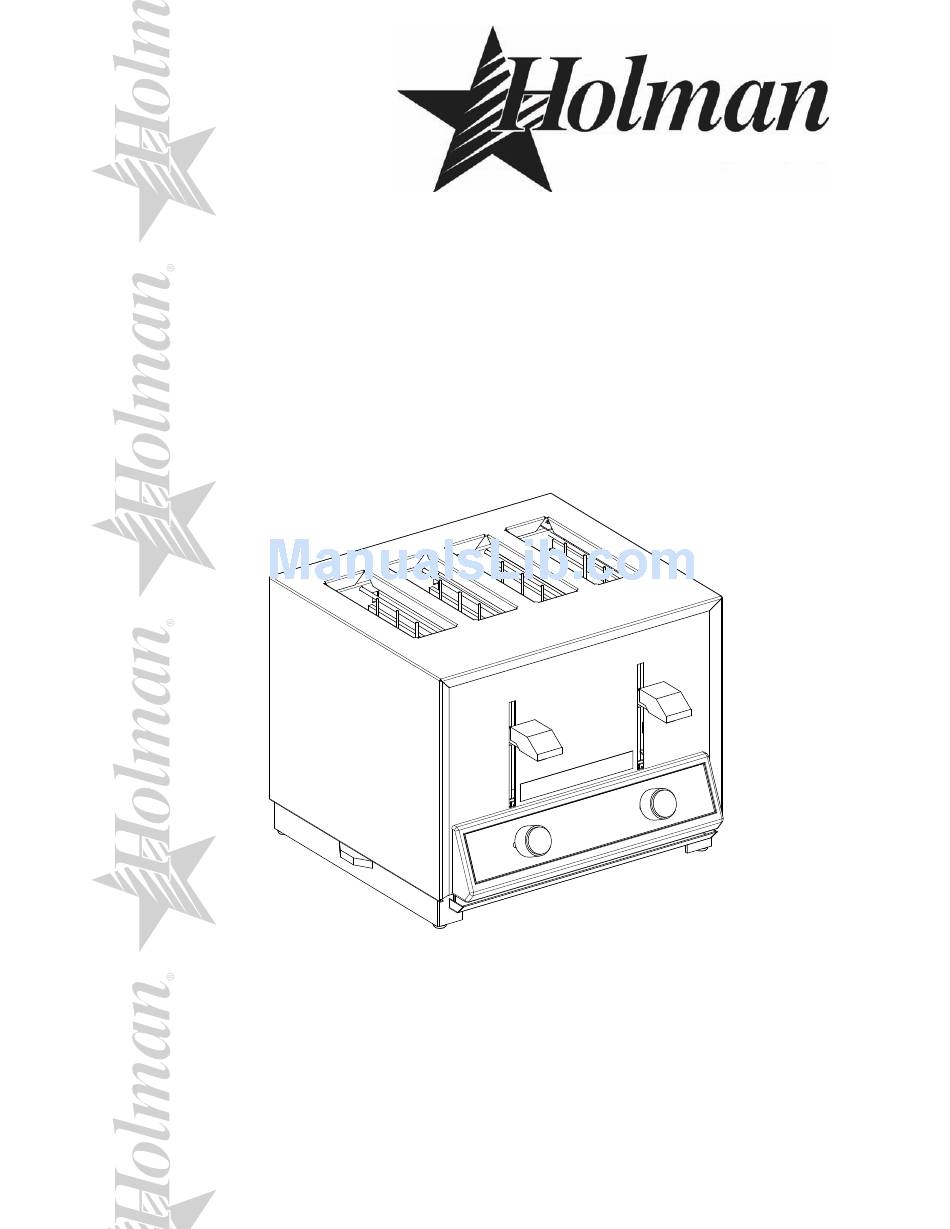

- Page 1 ® SOLID STATE SLOT TOASTER MODEL T2, T4 CT4 & BT4 Installation and Operation Instructions 2M-Z11894 Rev. - 2/05/2013 IL1544...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. - Page 3 Elec Width Depth Height Approx. Ship Model Slots per Hr Supply Cord Width Depth “A” “B” “C” Weight T2-120V 120V 5-15P 6-5/8” 12.3lbs / 5.58kg T2-240V 208/240V 4.8 / 5.4 1.0 / 1.3 6-15P T4-120V 120V 18.3 5-20P 1-1/8” T4-208/240V 208/240V 9.6 / 10.8...
-
Page 4: General Information
GENERAL INFORMATION This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions &... -
Page 5: Operation
Operating Lever Color Selection Knob IL1545 Crumb Tray OPERATION Color Selection For first toasting, set adjustment knob between "Light and Dark." Drop bread in toasting wells. Press down front handle as far as it will go. This automatically lowers the bread, turns on the heating elements and starts the timing. - Page 6 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit.
-
Page 7: Wiring Diagram
WIRING DIAGRAM 208/240V SCHEMATIC 120V TIMER TIMER ELEMENTS SWITCH SOLENOID SOLENOID SOLENOID TIMER MICROSWITCH MICROSWITCH COM. N.O. COM. N.O. TIMER COM. N.O. COM. N.O. SOLENOID SWITCH ELEMENTS ELEMENTS ELEMENTS SWITCH SOLENOID TIMER 15 16 ELEMENTS SWITCH TERMINALBOARD SOLENOID TIMER SCHEMATIC 208/240V TERMINAL BOARD WIRING 12OV MODEL AMPERES PER LINE... - Page 8 NOTES: WIRING SHOWN AS VIEWED FROM THE REAR OF THE APPLIANCE. WIRING DIAGRAM 208/240V SWITCH SOLENOID TIMER TIMER TIMER ELEMENTS SOLENOID SOLENOID ELEMENTS TIMER MICROSWITCH MICROSWITCH COM. N.O. COM. N.O. SOLENOID SWITCH COM. N.O. COM. N.O. SCHEMATIC 120V ELEMENTS ELEMENTS SOLENOID TIMER SWITCH...
- Page 9 MODEL NO. VOLTAGE WATTS AMPERES 1100 208/240 1000/1300 4.8/5.4 TERMINAL BOARD 120V 13 21 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE ® T2 POP-UP TOASTERS SK2395 Rev . - 9/15/2008 WIRING DIAGRAM...
- Page 10 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE ® MODEL: T2, T4, BT4, CT4 POP-UP TOASTERS SK2396 Rev. C 2/05/2013...
-
Page 11: Parts List
2R-39382 KNOB TOASTR CTRL (POP UP) BT4, CT4, T4 2J-35736 ASSY, TIMER CTRL 120/208/ 2J-7604901 ASSY, TIMER CONT 104V T4-208V ASSY, TIMER CONT 120V CT4-240V, T2-240V 2J-7605984 2E-7606512 TIME CONT 120V CT4-120V, T2-120V 2E-7606512 TIME CONT 120V T4-120V A8-7604286 WLDMT, ENCLOSURE CTRL... - Page 12 CHASIS BOTTOM & BACK, ASY BT4, CT4, T4 2W-35327 ASSY, CHASSIS BOTTOM AND BACK 2L-3102164 BASE, TOASTER BT4, CT4, T4 2A-K1DS268 PAD, RUBBER FOOT, ADHSV BT4, CT4, T4, T2 A8-35400 TRAY, CRUMB A8-7001948 BT4, CT4, T4 2E-32323 BOARD, TERMINAL, TU95101 BT4, CT4, T4 2E-35340...
