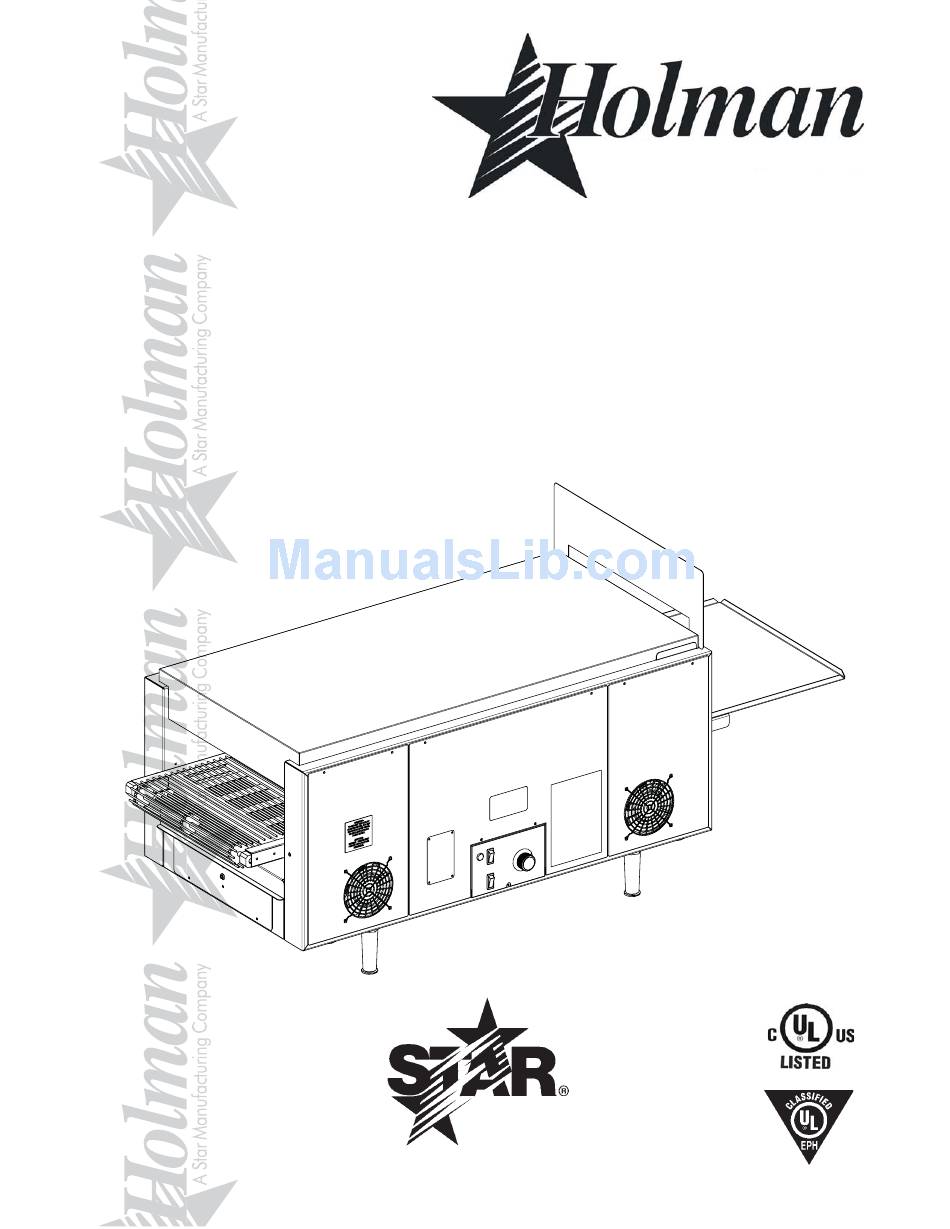

- Page 1 ® CONVEYOR SANDWICH TOASTER MODEL QT14C, QT14CR Installation and Operation Instructions 2M-Z10368 Rev. B 7/11/07 IL1336 QT14C...
-
Page 2: Star Contact Information
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Table Of Contents
Separate service per toaster - 34.6 Amp, 240 VAC, 1 phase, 60/50 Hz Separate service per toaster - 23.0 Amp, 208 VAC, 3 phase, 60 Hz Approximate Weight (QT14C Oven with Legs): Installed - 170 Lbs (77.1 kg) Dimensions: Width: 55"... -
Page 4: General Information Data
DO NOT operate the unit if it was damaged during shipping. The following should be included: Holman Conveyor Sandwich Toaster, Stainless Steel Unload Tray, (four) 4 Stainless Steel Legs, 2 crumb trays, extra Motor, and Magnetic Bake Aid w/Bracket. -
Page 5: Electrical Connection
ASSEMBLY AND INSTALLATION continued ELECTRICAL CONNECTION Have an electrician connect input power to the unit(s) in accordance with local electrical codes. CORD & PLUG IS PROVIDED. VERIFY THE GROUND (EARTH) CONNECTION IS PROPERLY WIRED. NEVER CONNECT UNIT TO POWER WITHOUT PROPER GROUND CONNECTIONS. IMPROPER GROUND MAY RESULT IN SEVERE INJURY OR FATALITY. -
Page 6: Stacking Ovens
CONTROL PANEL CONTROLS STACKING TOASTERS When stacking two Holman QT14/QT14C Conveyor Sandwich Toasters a QT14 Stacking Legs Kit (part no. PS-Z8977) MUST be used to prevent overheating of the control box of the top toaster. 1. Unplug BOTH UNIT power cords from the wall receptacle, and allow to cool. -
Page 7: Daily Operation
DAILY OPERATION 1. Turn Main On/Off switch to the ON position and variable speed control to the desired setting. Allow 30-40 minutes for complete machine warm up. 2. Adjust speed as required during operation to achieve a good bake. 3. When done for the day, turn the On/Off switch to the OFF position. The conveyor will stop and the elements will go off. -
Page 8: Cleaning
CLEANING Preventive maintenance for your toaster consists of the following recommended cleaning procedures. To keep your unit in its top operating condition, these steps should be performed on a daily, weekly or as indicated. Turn power off and allow cooling fans to run until the control box is cooled off. A thermostat in the control box controls the fans. -
Page 9: Weekly
CLEANING continued WEEKLY 1. Turn main power switch to the OFF position, allow cooling fans to run until the control box is cooled off. Disconnect unit from power source and allow to cool. 2. Perform daily cleaning procedures. 3. Using a damp cloth, wipe clean the fan guard located on the control box cover under the unit. -
Page 10: Monthly
CLEANING continued MONTHLY 1. Turn main power switch to the OFF position, allow cooling fans to run until the control box is cooled off. Disconnect unit from power source and allow to cool. 2. Perform daily & weekly cleaning procedures. 3. -
Page 11: Maintenance And Repairs
MAINTENANCE & REPAIRS A. REPLACING ELEMENT NOTE: Replace one element at a time. 1) DISCONNECT POWER SOURCE. Element 2) Remove both the left and right side panels, by removing the truss head screws. Pull the top of each panel out slightly and lift up. 3) Remove the wire terminal from the each end of the element you are replacing. - Page 12 MAINTENANCE PROCEDURES continued 7) Install sprocket on motor shaft & chain after aligning them. See Sprocket Alignment Illustration. NOTE: The two sprockets must line up FLUSH with each other, so the chain does not twist during operation. Also the hub is installed 1/4”...
-
Page 13: Troubleshooting Guide
2) Call the Star Service Help Desk at 1-800-807-9054. C. HI-LIMIT (HEAT) RESET. Your Holman conveyor toaster is equipped with an automatic activated temperature limit switch which interrupts the heater tube connections if the air temperature in the control box exceeds 190°F (88°C) This limit switch can be reset manually by pushing the button in the center of the switch which is located on the right side under the conveyor belt. -
Page 14: Limited Equipment Warranty
Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same. -
Page 15: Wiring Diagrams
50 AMP TWIST LOC PLUG 2 PLC (CALIFORNIA STANDARD) THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC. ® NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED. MODEL: QT14C 208/220/240V, 1Phase STAR MANUFACTURING INTERNATIONAL INC. w/Potentiometer Speed Control SK2220 Rev B 7/09/2007... - Page 16 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
