Replacing the hard drive

To replace the hard drive:
1
2
3
4
5
www.gateway.com
Remove the side panel by following the instructions in
"Opening and closing the case" on page
the .

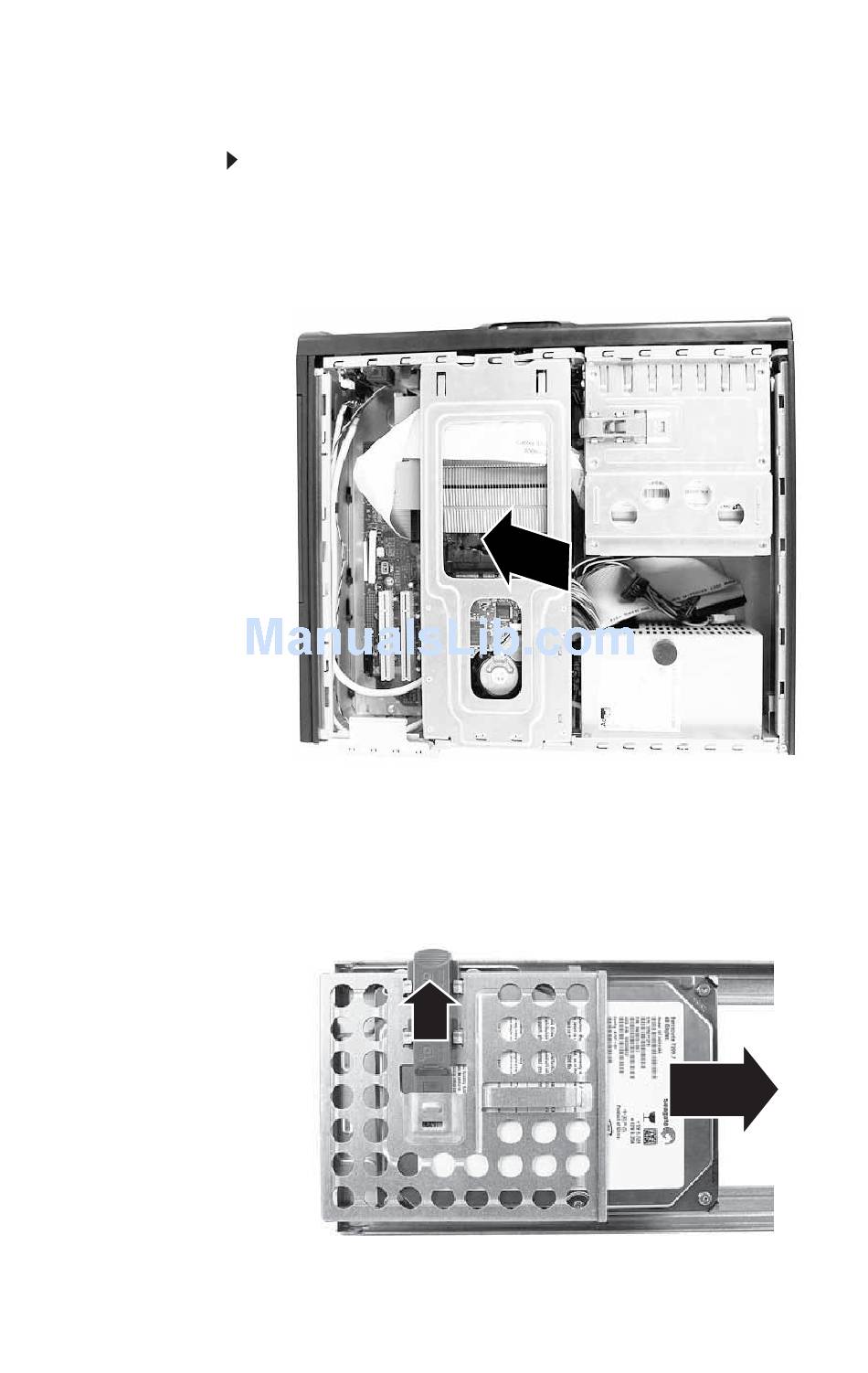

LIft the hard drive bracket out of the chassis.
Disconnect the drive cables, noting their locations and
orientation. (You will reconnect the cables after you
install the new drive.)
Move the drive release latch up (away from the center
of the bracket) to the Unlock position, then slide the drive
out of the drive bracket.
Note any jumper settings on the old drive and set the
jumper on the new drive to be the same.
37, then remove
43
