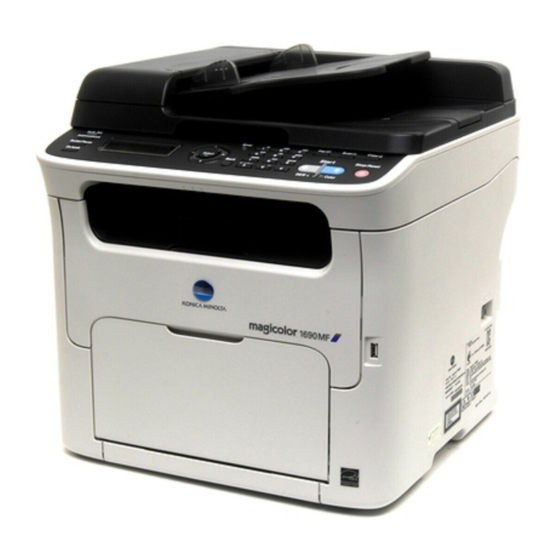

Konica Minolta magicolor 1690MF Quick Manual

1 2
3 4
Item Name
Addressbook key
1
Auto RX indicator
2
Redial/Pause key
3
Onhook key
4
Message Window
5
6 keys
keys
7
Select key
8
Error indicator
9
Back key
10
Keypad
11
Fax key/LED
12
Scan key/LED
13
Copy key/LED
14
Start (B&W) key
15
Start indicator
16
Start (Color) key
17
Stop/Reset key
18
5 6 7 6
8
Function
Displays the information registered in the favorite list, speed dial
destinations and group dial destinations
Lights up when the automatic receiving function is selected
Recalls the last number dialed
Inserts a pause when a number is dialed
Sends and receives transmissions with the receiver on the hook
Displays settings, menus, and messages
Moves up and down through menus, options, or choices
Moves left and right through menus, options, or choices
Press to select the setting that is currently displayed
Indicates an error condition
Clears the specified number of copies and entered text
Press to return to the previous screen
Press to cancel the setting that is currently displayed
Enters desired number of copies
Enters fax numbers, mail addresses, and names of recipients
Enters Fax mode
Lights up in green to indicate that the machine is in Fax mode
Enters Scan mode (Scan to E-mail, Scan to FTP, Scan to a shared
folder on a computer, Scan to PC, or Scan to USB Memory)
Lights up in green to indicate that the machine is in Scan mode
Enters Copy mode
Lights up in green to indicate that the machine is in Copy mode
Starts monochrome copying, scanning or faxing
Lights up in blue when copying and fax transmissions are possible
Lights up in orange when copying and fax transmissions are not
possible, for example, during warm-up or if an error has occurred
Starts color copying, scanning or faxing
Returns the settings to their defaults and stops functions
- 1 -
Quick Guide
7 9 11 12
10 15
A0HF-9235-00
13 14
16 17 18
