La Crosse Technology Radio Controlled Projection Alarm WT-5600 Instruction Manual

La Crosse Technology Radio Controlled Projection Alarm WT-5600 Instruction Manual

Radio controlled projection alarm
Hide thumbs
Table of Contents

Advertisement

Quick Links

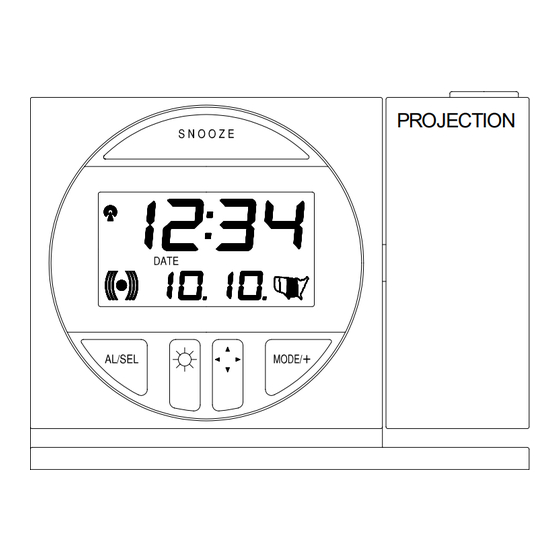

WT-5600
Radio Controlled Projection Alarm
Instruction Manual
PROJECTION

Advertisement

Table of Contents
loading

Related Manuals for La Crosse Technology Radio Controlled Projection Alarm WT-5600

Summary of Contents for La Crosse Technology Radio Controlled Projection Alarm WT-5600

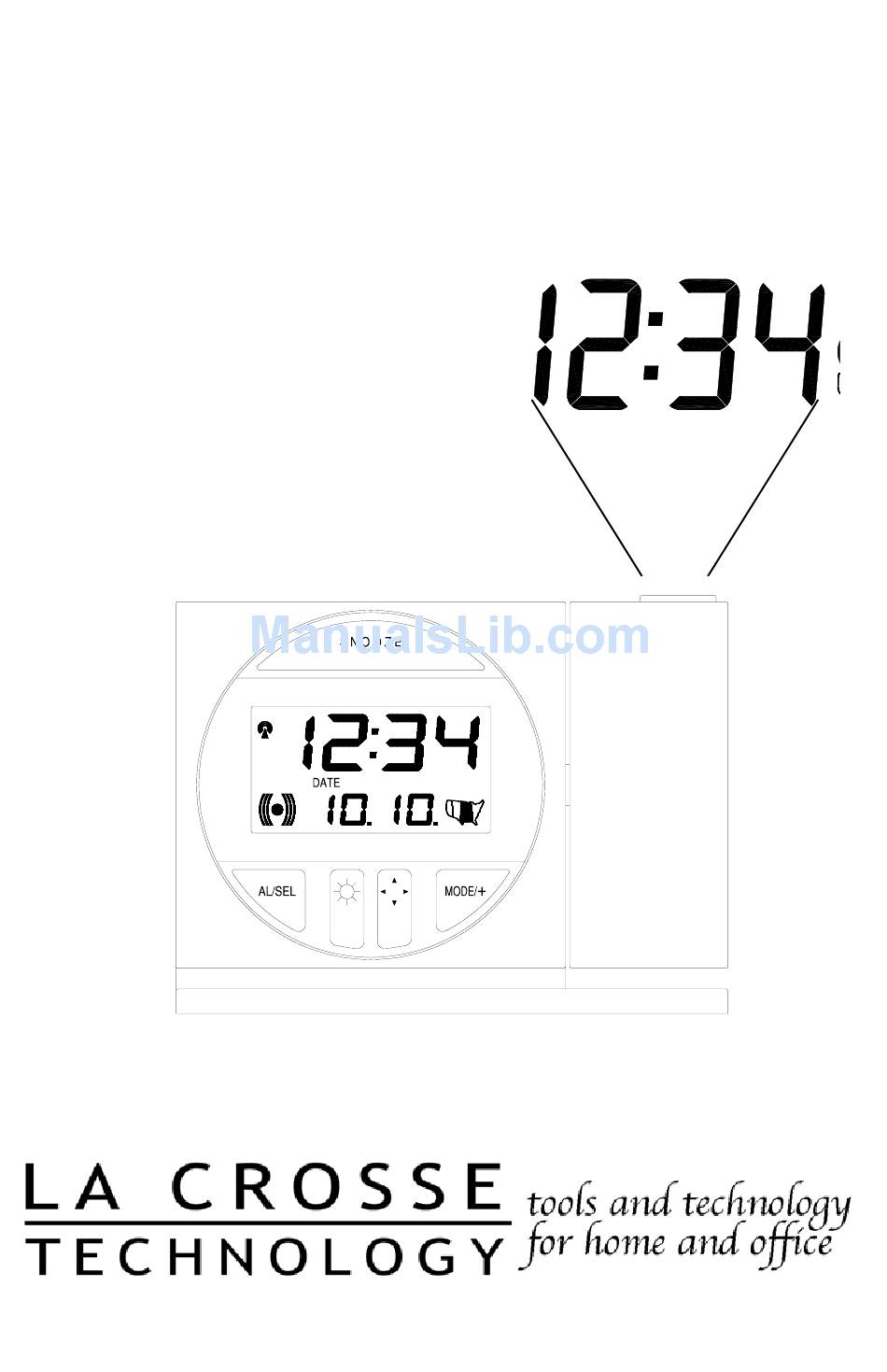

  • Page 1 WT-5600 Radio Controlled Projection Alarm Instruction Manual PROJECTION...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Topic Inventory of Contents About WWVB Quick Set-Up Guide Detailed Set-Up Guide Battery Installation Program Mode Programming Sequence Function Buttons Time Zone Setting Time Setting Date Setting 12/24-Hour Mode DST (Daylight Saving Time) Setting Features & Operations Features Radio-Controlled Time Projection...

  • Page 3: Inventory Of Contents

    INVENTORY OF CONTENTS 1) WT-5600 Alarm Clock 2) AC adapter/transformer 3) Instruction manual and warranty card. ADDITIONAL EQUIPMENT (not included) 1) Two fresh 1.5V AA batteries (optional for alarm clock) FEATURES OF PROJECTION ALARM 1. Radio-controlled time and date 2. Projection of time 3.

  • Page 4: Quick Set-Up Guide

    QUICK SET-UP GUIDE 1) Insert two AA batteries into the Projection alarm and/or plug into wall 2) Wait 10 minutes for WWVB reception. 3) If there is no WWVB reception, manually set the time and date (instructions in the Program Mode). 4) Program the settings.

  • Page 5: Detailed Set-Up Guide

    DETAILED SET-UP GUIDE BATTERY INSTALLATION 1. Remove the battery cover. 2. Observe the correct polarity and install 2 AA batteries. 3. In addition or instead of inserting batteries, the AC adapter can be used. Simply plug the adapter into the receptacle on the bottom of the alarm clock and then plug in adapter.

  • Page 6: Program Mode

    PROGRAM MODE To enter the Program Mode, hold down the “MODE+” button for 2 seconds, until the time zone (“-5” default) flashes in the lower right. The Program Mode Guide is laid out in a manner that allows you to program each function separately, or you can follow the instructions entirely to program the Projection Alarm.

  • Page 7: Time Setting

    -10h -11h, -12h -1h, -2h, -3h From –5h to –8h, a US map with the highlighted time zone will also be displayed to the right of the time display. 4. Press the “AL” button to move to the hour setting or press the “SNOOZE” button to confirm the time zone and return to the display mode.

  • Page 8: Date Setting

    E. DATE SETTING Note: When the WWVB signal is found, that date will over-ride the manually set date. 1. Hold down the “MODE/+” button for 2 seconds (the selected time zone will flash), press the “AL” button three times until the year flashes. 2.

  • Page 9: Radio-Controlled Time

    B. RADIO-CONTROLLED TIME AND DATE 1. The projection alarm will automatically search for the time signal upon initial set-up and every night. 2. When the signal is being received, there will be a “tower” icon flashing to the right of the time display. 3.

  • Page 10: Projection

    C. PROJECTION OF TIME 1. When plugged into an AC outlet, the projection alarm can continuously project the time. 2. When operating on batteries alone, the Projection Alarm will only project when a button is pressed. 3. The projection will auto-focus for display from three to six feet away. A dark surrounding will be necessary to clearly see the projection.
  • Page 11 2. ACTIVATING/DEACTIVATING THE ALARM After entering the alarm-setting mode, the alarm is activated. b. To toggle between activating and deactivating the alarm, press the “AL” button briefly. “(((•)))” will be displayed to the left of the time display when the alarm is activated. When the snooze bar is pressed, the display will show the time the alarm is set to...

  • Page 12: Changing Display Mode

    E. Immediately remove all low powered batteries to avoid leakage and damage. F. Replace with new batteries only and of recommended size. G. Opening the casings invalidates the warranty. Do not try to repair the units. Contact La Crosse Technology for repairs.

  • Page 13: Troubleshooting

    1) Be sure correct time zone and daylight saving time are Solution: selected. Note: For any questions not answered, please contact La Crosse Technology’s Technical Support with the contact information found at the end of this instructional manual. SPECIFICATIONS FOR WT-5720...

  • Page 14: Warranty And Contact Information

    La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above.
  • Page 15 For warranty work, technical support, or information contact: La Crosse Technology 2809 Losey Blvd. S. La Crosse, WI 54601 Phone: 608.782.1610 Fax: 608.796.1020 e-mail: support@lacrossetechnology.com (warranty work) sales@lacrossetechnology.com (information on other products) web: www.lacrossetechnology.com FCC ID: OMO-01RX (receiver) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
