La Crosse Technology WT-5720 Instruction Manual

Radio controlled projection alarm
Hide thumbs
Table of Contents

Advertisement

Quick Links

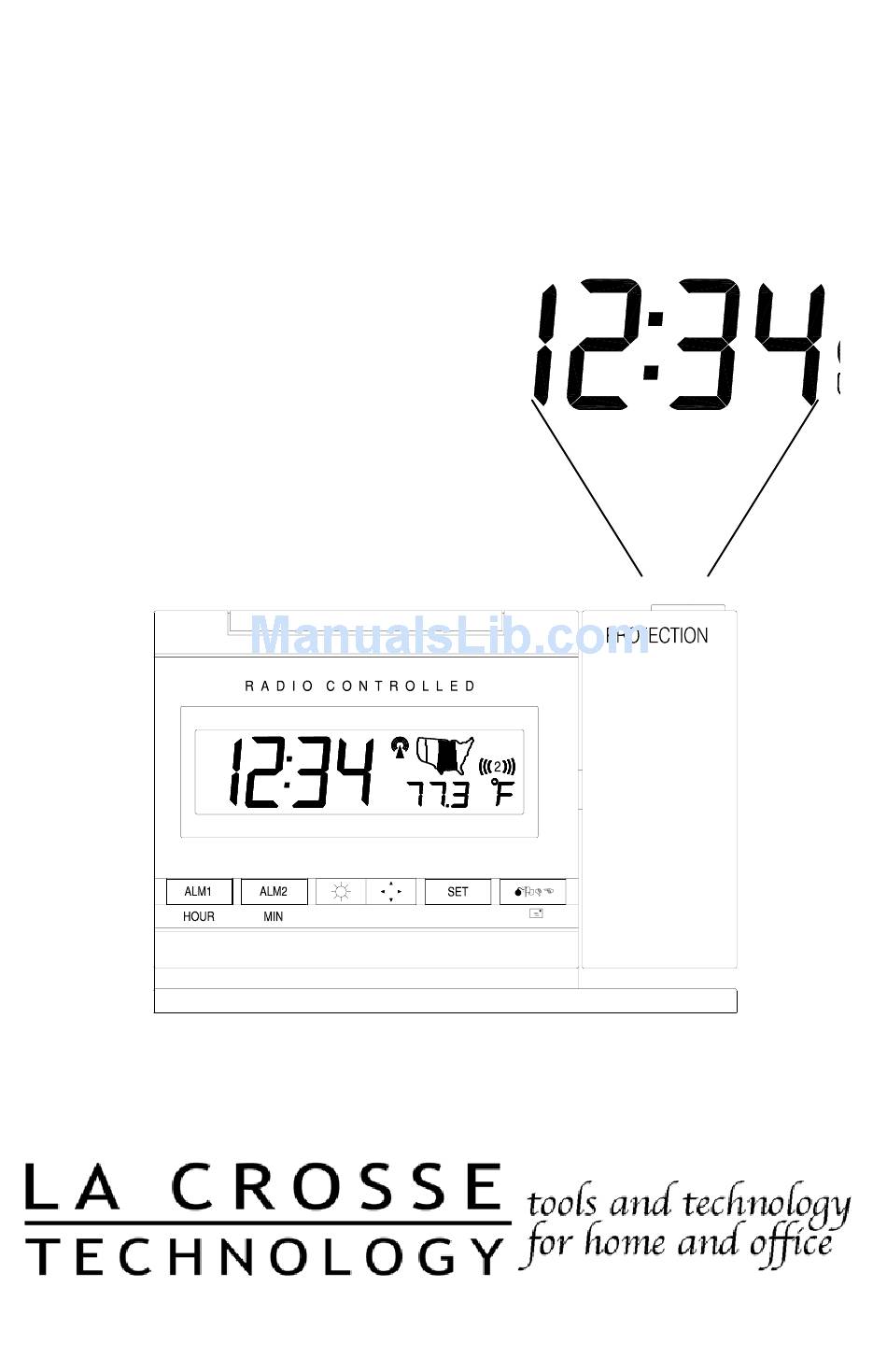

WT-5720
Radio Controlled Projection Alarm
Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for La Crosse Technology WT-5720

Summary of Contents for La Crosse Technology WT-5720

  • Page 1 WT-5720 Radio Controlled Projection Alarm Instruction Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Topic Inventory of Contents/ Additional Equipment About WWVB Quick Set-Up Guide Detailed Set-Up Guide Battery Installation Program Mode Programming Sequence Function Buttons Time Zone Setting DST (Daylight Saving Time) Setting Adjustable Snooze Time Setting Date Setting 12/24-Hour Setting Selecting °F or °C Features &...

  • Page 3: Inventory Of Contents/ Additional Equipment

    INVENTORY OF CONTENTS 1) WT-5720 projection alarm 2) AC adapter/transformer 3) Instruction manual and warranty card. ADDITIONAL EQUIPMENT (not included) 1) Two fresh 1.5V AA batteries (optional for projection alarm) ABOUT WWVB (Radio Controlled Time) The NIST (National Institute of Standards and Technology—Time and Frequency Division) WWVB radio station is located in Ft.

  • Page 4: Quick Set-Up Guide

    3) If there is no WWVB reception manually set the time and date (instructions in the Program Mode). 4) Program the settings. 5) Mount the WT-5720 in a suitable location, where WWVB signal can be received. 6) The projector will activate and remain on if the alarm clock is plugged in. If only batteries are used, the projector will only be activated when a button is pressed.

  • Page 5: Detailed Set-Up Guide

    DETAILED SET-UP GUIDE BATTERY INSTALLATION A. Projection Alarm 1. Remove the battery cover. 2. Observe the correct polarity, and install 2 AA batteries. 3. In addition or instead of inserting batteries, the AC adapter can be used. Simply plug the adapter into the receptacle on the underneath of the alarm clock and then plug in adapter.

  • Page 6: Program Mode

    II. PROGRAM MODE To enter the Program Mode, hold down the “SET” button for 1 second, until the time zone (“-5” default) flashes in the lower right. The program mode guide is laid out in a manner that allows you to program each function separately, or you can follow the instructions entirely to program the projection alarm.

  • Page 7: Dst (Daylight Saving Time) Setting

    5. From –5h to –8h a US map with the highlighted time zone will also be displayed to the right of the time display. -10h -11h, -12h -1h, -2h, -3h 6. Press and release the “SET” button to confirm the time zone setting and to advance to DST (Daylight saving time) setting.

  • Page 8: Time Setting

    5. Press and release the “SET” button to confirm the snooze setting and to advance to manually set the time. F. Time Setting Note: When the WWVB signal is found, that time will over-ride the manually set time. 1. Hold down the “SET” button for 1 second. 2.

  • Page 9: 12/24-Hour Setting

    H. 12/24-Hour Setting Note: Setting to the 24-hour mode (also known as Military Time) will also change the temperature to display in 1. Hold down the “SET” button for 1 second. 2. The selected time zone will flash. 3. Press and release the “SET” button 9 times until the “12” hour time display flashes in the time LCD.

  • Page 10: Features & Operations

    FEATURES & OPERATIONS A. Features 1. Radio-controlled time and date 2. Projection of time 3. LCD light 4. Six modes of date/seconds/temperature display 5. Indoor temperature 6. Remote temperature 7. Dual alarms 8. Adjustable snooze B. Radio-Controlled Time and Date 1.

  • Page 11: Projection

    Projection of Time 1. When plugged into an AC outlet, the projection alarm can continuously project the time. 2. When operating on batteries alone the projection alarm will only project when a button is pressed. 3. The projection will auto-focus for display from three to six feet away. A dark surrounding will be necessary to clearly see the projection.

  • Page 12: Time Alarm

    Time Alarm The projection alarm has two separate alarms for time, “ALM1” and “ALM2”. The alarms have a different sound; ALM1 increases in volume after 25 seconds, and again after 50 seconds. ALM2 is a constant volume. The total duration is 96 seconds for each alarm.

  • Page 13: Changing Display Mode (Viewing Seconds)

    Changing the Display Mode (Day, Seconds, and Temperature) There are six possible display modes to view the day, seconds, and temperature. To change the display (starting at the default of day, date, year): 1. Press and release the “MODE/+” button. 2.

  • Page 14: Maintenance & Care

    4. Immediately remove all low powered batteries to avoid leakage and damage. 5. Replace with new batteries only, and of recommended size. 6. Opening the casings invalidates the warranty. Do not try to repair the units. Contact La Crosse Technology for Repairs.

  • Page 15: Troubleshooting

    Be sure correct time zone and daylight saving time are selected. Solution: Note: For any questions not answered, contact La Crosse Technology with the contact information found at the end of this instructional manual. in the general direction of Ft. Collins, Colorado.

  • Page 16: Specifications

    SPECIFICATIONS FOR WT-5720 Temperature: Measuring range: Checking intervals: Power source: AC Adapter (included) Battery type: Battery life: Dimensions (L x W x H): 32°F to 122°F with 0.2°F resolution (indoor) (0°C to 50°C with 0.1°C resolution) Every 10 seconds indoor Input: 120VAC/60Hz Output: DC 6V/100MA Station: 2 x AA, 1.5V (Alkaline) (optional)

  • Page 17: Warranty And Contact Information

    La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above.
  • Page 18 For warranty work, technical support, or information contact: La Crosse Technology 2809 Losey Blvd. S. La Crosse, WI 54601 Phone: 608.782.1610 Fax: 608.796.1020 e-mail: support@lacrossetechnology.com (warranty work) sales@lacrossetechnology.com (information on other products) web: www.lacrossetechnology.com FCC ID: OMO-01RX (Receiver) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1.
