La Crosse Technology WT-5360U Instruction Manual

La crosse technology 433 mhz radio controlled alarm clock with projection time instruction manual wt-5360u.


WT-5360U
433 MHz
Radio Controlled Alarm Clock
With Projection Time
Instruction Manual

Summary of Contents

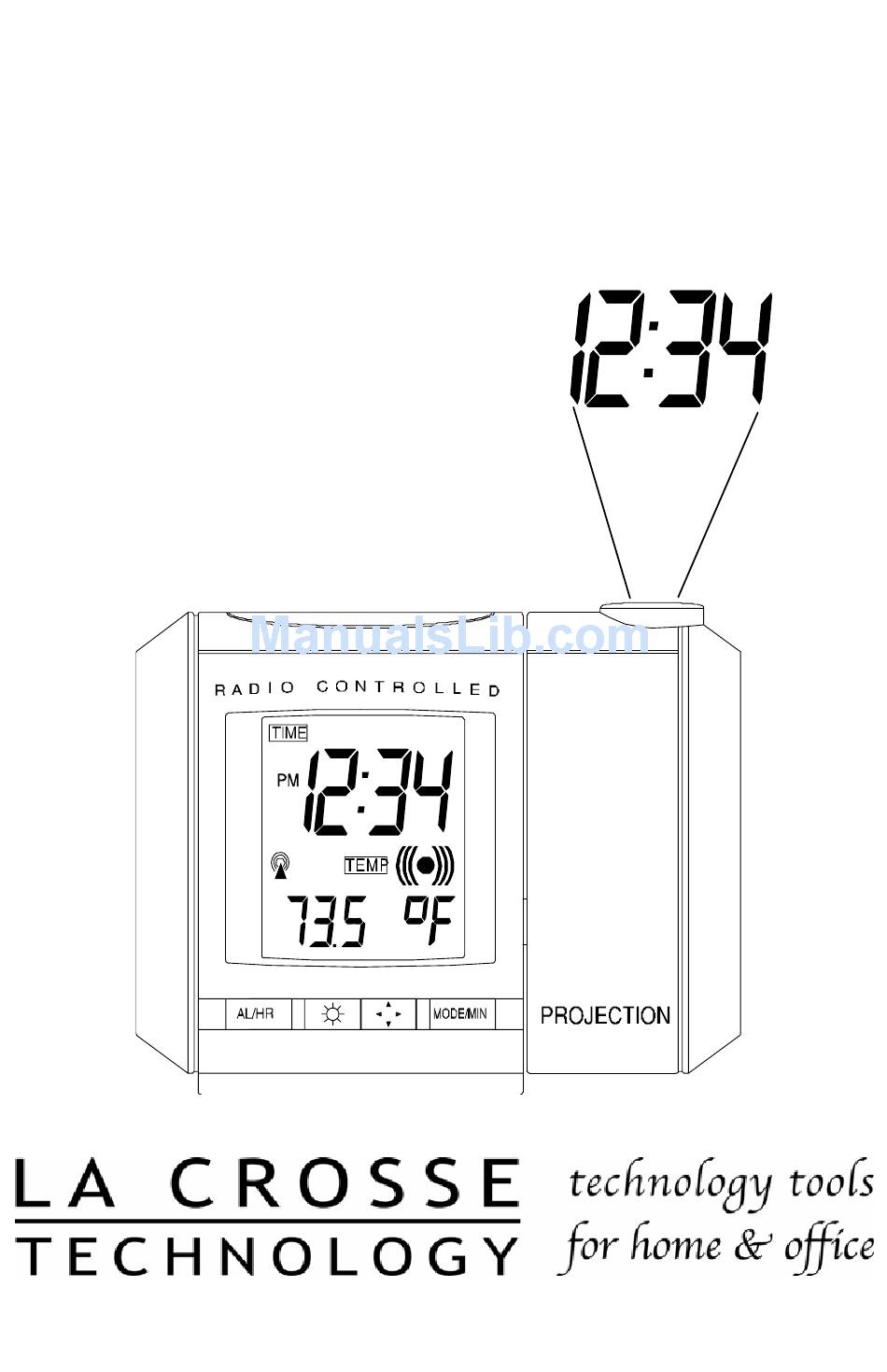

  • Page 1

    WT-5360U 433 MHz Radio Controlled Alarm Clock With Projection Time Instruction Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Topic Inventory of Contents/ Additional Equipment Glossary of Common Terms QUICK SET-UP GUIDE DETAILED SET-UP GUIDE Battery Installation PROGRAM MODE Programming Sequence Function Buttons Time Zone Setting Manual Time Setting Year and Date Setting 12/24-Hour Clock Setting Indoor Temperature Setting Daylight Saving Time (DST) Setting FEATURES &...

  • Page 3: Glossary Of Common Terms

    INVENTORY OF CONTENTS WT-5360 Alarm Clock AC adapter/transformer Instruction manual and warranty card. ADDITIONAL EQUIPMENT (not included) Two fresh 1.5V AA alkaline batteries (optional when using AC adapter) FEATURES OF PROJECTION ALARM CLOCK Operation of these features is in section III. Time Zone Setting Manual Time Display Year Setting...

  • Page 4: Quick Set-up Guide

    I. QUICK SET-UP GUIDE Hint: Use good quality alkaline batteries and avoid rechargeable batteries. 1. We recommend beginning the set-up procedure at night when the WWVB signal is easiest to receive. 2. It is also highly recommended to set the projection alarm in a window or other area free of interference in the area of your home that is closest to Colorado (the source of the WWVB signal).

  • Page 5

    DETAILED SET-UP GUIDE BATTERY INSTALLATION Remove the battery cover on the backside of the projection alarm. Observe the correct polarity, and install 2 AA batteries. In addition to or instead of installing batteries, the AC adapter can be used. Simply plug the adapter into the receptacle on the underneath side of the alarm clock, and then plug in the adapter.

  • Page 6: Function Buttons, Time Zone Setting

    III. PROGRAM MODE To enter the Program Mode, hold down the “MODE/MIN” button for 3 seconds, until the time zone flashes at the bottom of the display. The Program Mode Guide is laid out in a manner that allows you to program each function separately, or you can follow the instructions entirely to program the projection alarm.

  • Page 7: Time Zone Setting, Manual Time Setting, Year And Date Setting

    -10h -11h, -12h -1h, -2h, -3h NOTE: The U.S. time zones will show abbreviations as opposed to the numerical time zone indicator. For example Eastern Time will display “ET” when the Eastern Time Zone is selected Press and release the “SNOOZE” bar to confirm the time zone setting and advance to the Manual Time Setting.

  • Page 8: Hour Clock Setting, Radio Controlled Time, Radio Controlled Time

    12/24-HOUR CLOCK SETTING Hold down the “MODE/MIN” button for 3 seconds; the time zone will appear flashing at the bottom of the LCD. Press and release the “SNOOZE” bar 5 times to advance to the 12/24-hour clock setting. Press and release the “MODE/MIN” button to select either a 12-hour clock or a 24- hour clock.

  • Page 9: Time Projection, Led Backlight, Indoor Temperature, Time Alarm

    When the time signal has been received successfully, the tower icon will remain steady until midnight. The projection alarm will search for a signal every night when reception is best. It is possible that your projection alarm may not be exactly on the second due to the variance in the quartz.

  • Page 10: Time Alarm, Calendar, Second Display, Maintenance & Care, Maintenance & Care

    Remove all low powered batteries immediately to avoid leakage and damage. Replace with new batteries only--and of recommended size. Opening the casings invalidates the warranty. Do not try to repair the units. Contact La Crosse Technology for Repairs. TROUBLESHOOTING The Projection is faint...

  • Page 11: Specifications

    La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above.

  • Page 12: Warranty

    La Crosse Technology, Ltd will pay ground return shipping charges to the owner of the product to a USA address only. Your La Crosse Technology, Ltd warranty covers all defects in material and workmanship with the following specified exceptions: (1) damage caused by accident, unreasonable use or neglect (including the lack of reasonable and necessary maintenance);...

  • Page 13

    Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. La Crosse Technology Made in China WT-5360 FCC ID: OMO-01RX (Receiver), THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
