15B+/17B+/18B+
Users Manual

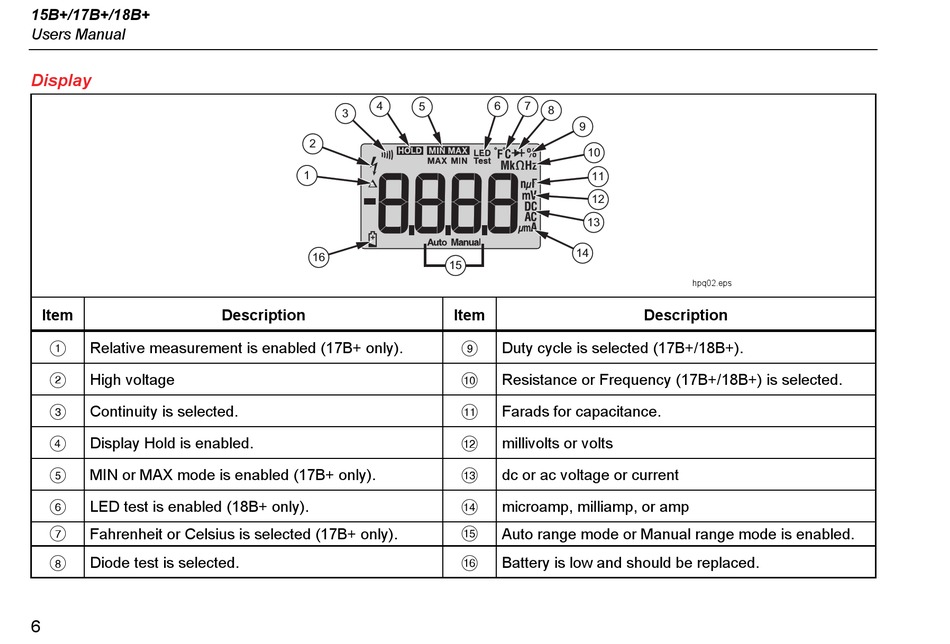

Display

Item
Relative measurement is enabled (17B+ only).

High voltage

Continuity is selected.

Display Hold is enabled.

MIN or MAX mode is enabled (17B+ only).

LED test is enabled (18B+ only).

Fahrenheit or Celsius is selected (17B+ only).

Diode test is selected.

6
4
3
2
1
16
Description
6 7
5
8
9
10
11
12
13
14
15
Item
Duty cycle is selected (17B+/18B+).

Resistance or Frequency (17B+/18B+) is selected.

Farads for capacitance.

millivolts or volts

dc or ac voltage or current

microamp, milliamp, or amp

Auto range mode or Manual range mode is enabled.

Battery is low and should be replaced.

hpq02.eps
Description
