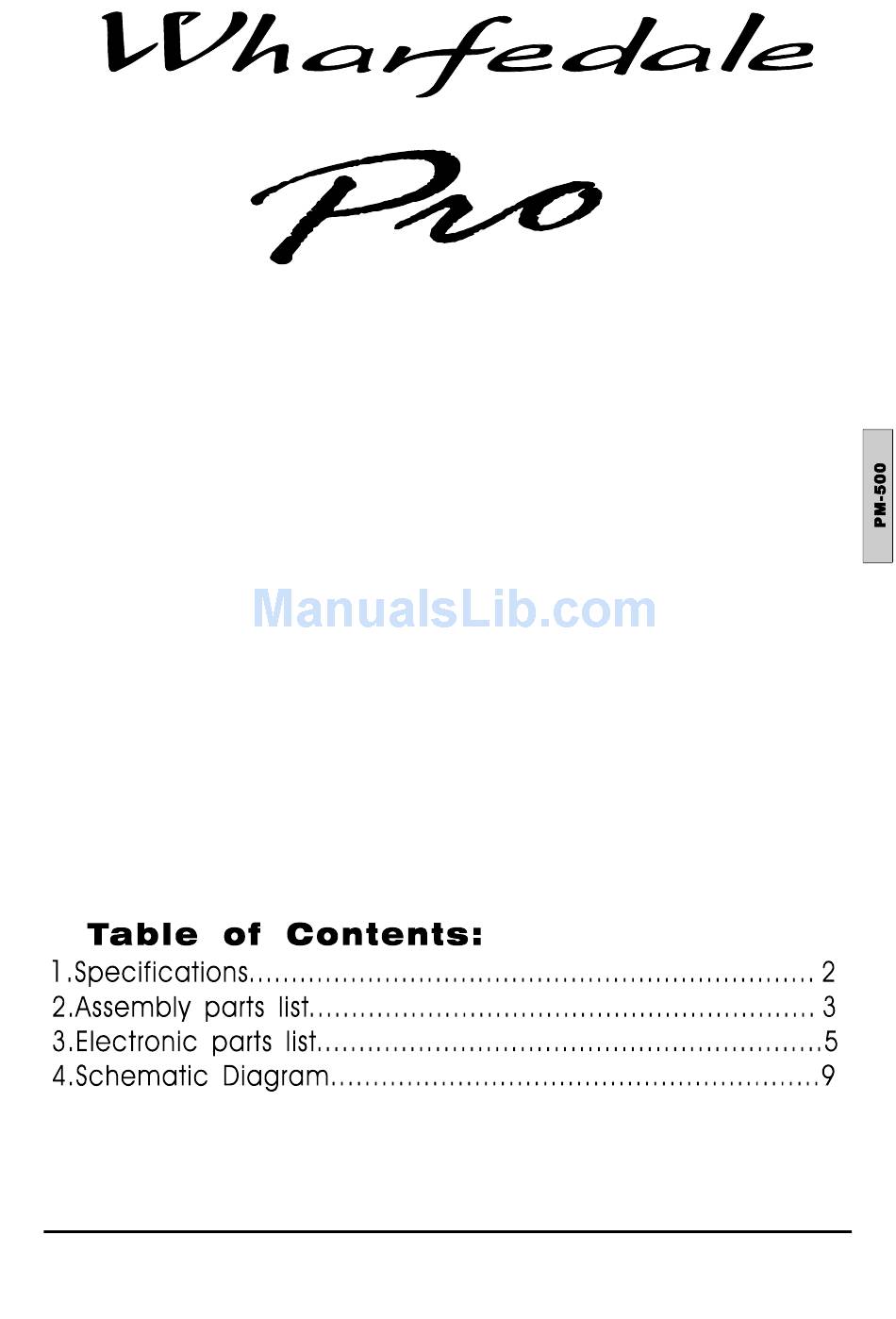

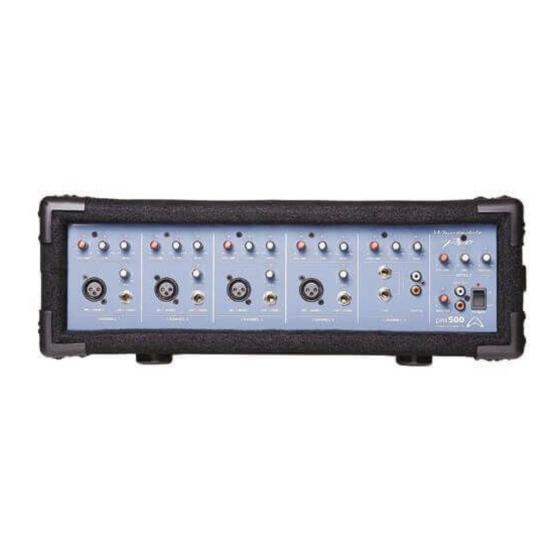

- Page 1 Service Manual : PM-500 Professional Audio Mixers...
-
Page 2: Specifications
1.SPECIFICATIONS INPUTS BALANCED MIC LINE CHAMMELS INPUT IMPEDANCE LOW Z(BALANCED) 2KOHMS LINE 16KOHMS MAIN OUT UNBA.TRS FREQUENCY RESPONSE 20TO25KHz MAXIMUM CHANNEL GAIN LOW Z(BALANCED) 40dB LINE 20dB MAXIMUM INPUT LEVEL LOE Z(MIC) LINE 20dB MAXIMUM OUTPUT LEVEL MAIN 18dBv RECORD OUT 5dBv MASTER EQ HI EQ... -
Page 3: Assembly Part List
3.ASSEMBLY PART LIST PART NAME DESCRIPTION 088-1245000000 MAIN P.C.B 088-1245002200 ECHO P.C.B 088-1245000300 AMP P.C.B 088-1245003800 IMPROT P.C.B 022-1076902014 TRANSFORMER 041-2013000000 SWITCH R130-22C-11P 215-1247000011 KNOB ASHE 215-1247000022 KNOB 215-1247000033 KNOB ASHE 309-1245000001 MAIN FRAME 307-3000602401 CUPREOUS POLE 344-1245000001 PM500 CABINET 226-3800601111 RUBBER FOOT 524-3022080811A... -
Page 4: Electronic Parts List
4.ELECTRONIC PARTS LIST PART NAME DESCRIPTION 088-1245000000 MAIN PCB PM-500 053-1245001300 P.C.B 93*423mm 001-1001105050 RESISTOR 100 O1/4W 001-1002105050 RESISTOR 1K 1/4W 001-1003105050 RESISTOR 10K 1/4W 001-1004105050 RESISTOR 100K 1/4W 001-1202105050 RESISTOR 1.2K 1/4W 001-2202105050 RESISTOR 2.2K 1/4W 001-1203105050 RESISTOR 12K 1/4W... - Page 5 4.ELECTRONIC PARTS LIST 009-2700507000 CAPACITOR 27PF/50V 009-3300507000 CAPACITOR 33PF/50V 009-3320507000 CAPACITOR 0.0033UF/50V 009-4730507000 CAPACITOR 0.047UF/50V 009-2200507000 CAPACITOR 22PF/50V 009-5610507000 CAPACITOR 560PF/50V 017-0160000000 NJM4558D 019-0311122001 222-0200503011 LAMPSTANDARD 020-5022127315 POTENTIOMETER L=30mm EVU J84 F3053Y 020-5032111115 POTENTIOMETER S.ROT/VR 50KB 30MM P 048-1700000000 SOCKET NYS139 K3Y1 048-1800000000 SOCKET...
- Page 6 4.ELECTRONIC PARTS LIST 008-3302005017 CAPACITOR 3300PF/50VZ5U ± 20% f 5 008-3902005017 CAPACITOR 3900PF/50VZ5U ± 20% f 5 008-5601005017 CAPACITOR 560PF/50VZ5U ± 20% f 5 014-8230100001 CAPACITOR 0.082UF/50VJ 017-0150000000 PT2399 017-0950000000 HPC7805H LM7805CK NEC TO-220 8P WAFER/S PH=2.5 H=8.5mm 056-4108001144 WIRE 001-1002103050 RESISTOR 1K 1/8W...
- Page 7 4.ELECTRONIC PARTS LIST 006-4794051163 CAPACITOR 4.7UF/50V 20% 006-4704081163 CAPACITOR SM47UF/50V 20% 006-4704051143 CAPACITOR SM47UF/25V 20% 006-2224163053 CAPACITOR 2200UF/35V 20% 006-2204061163 CAPACITOR SM22UF/50V 20% 006-4724224073 CAPACITOR SM4700UF/63V 20% T 25*40mm 008-2201010014 CAPACITOR 220PF 100VJ 008-1001010014 CAPACITOR 100PF 100V 008-1501010014 CAPACITOR 150PF 100V 008-4701010014 CAPACITOR 470PF 100V...
- Page 8 4.ELECTRONIC PARTS LIST 306-1102000002 RADIATOR (C102.10M) 305-1245000001 BRACKET 527-3022100811A SCREW SP(+)3*10MC H BZn 513-3005050800A WASHER 517-3000000800A WASHER 500-3050240800A 088-1245003800 IMPORT P.C.B 053-1018001206 P.C.B 50*30mm 049-1304113124 SOCKET LS-2036 055-0402220322 WIRE 1JS5001/-02/220...
- Page 9 5.SCHEMATIC DIAGRAM...
- Page 10 5.SCHEMATIC DIAGRAM...
- Page 11 5.SCHEMATIC DIAGRAM...
- Page 12 5.SCHEMATIC DIAGRAM...
- Page 13 5.SCHEMATIC DIAGRAM...
- Page 14 5.SCHEMATIC DIAGRAM...
