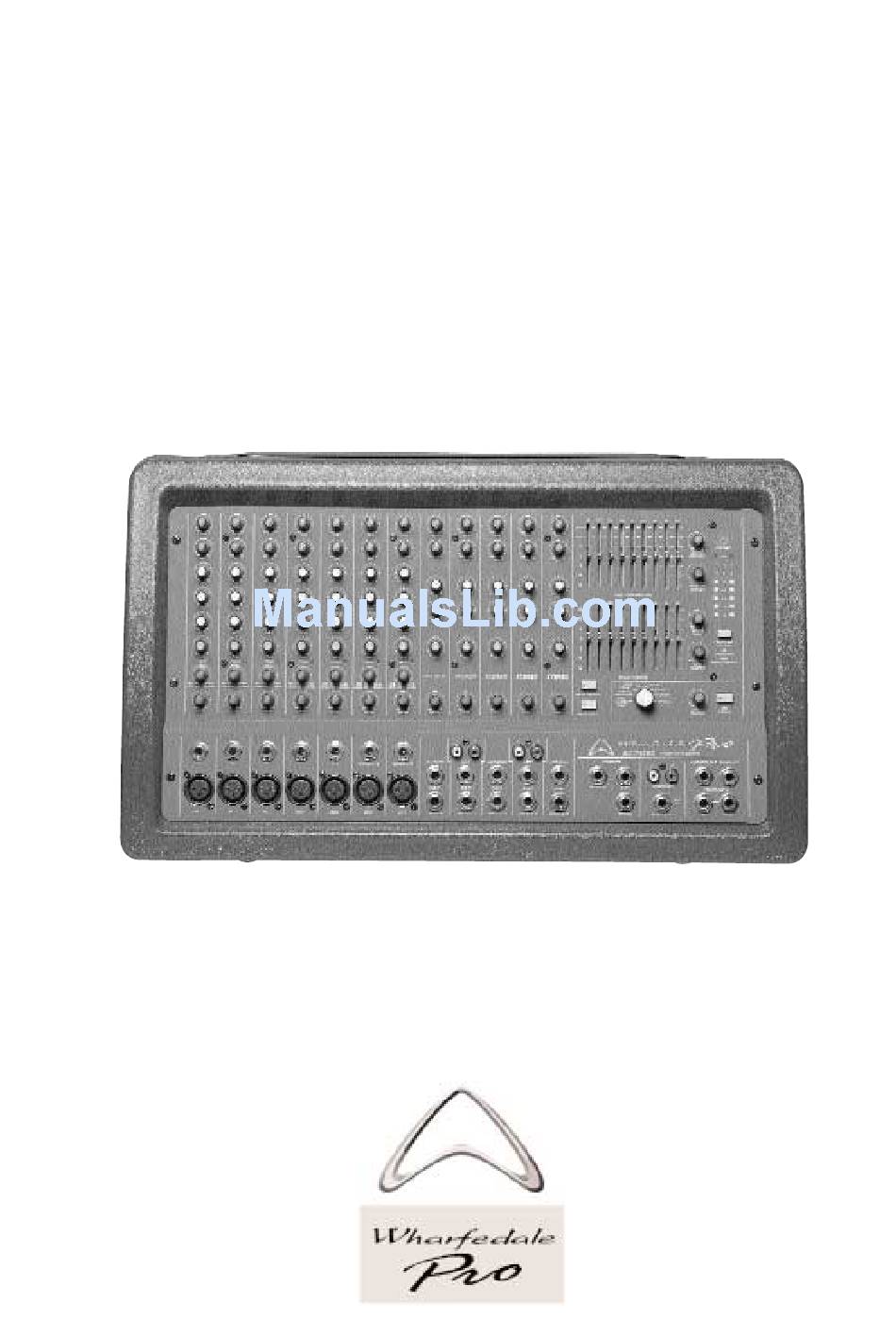

- Page 1 BX SERIES MIXER INSTRUCTION MANUAL: BX1060SD BX1360SD BX1780SD...
- Page 3 Wharfedale Professional dealer of distributor. Be aware that warranty details dif- fer from country to country. Unpacking: All Wharfedale Pro Products are fully checked before leaving the factory. After unpacking please inspect the units for any physical damage. Please retain the shipping carton if possible and internal packing mate- rial in case the unit needs to be returned.
-
Page 4: Table Of Contents
CONTENTS: Page 1 Introduction Page 2 BX1060SD Features and Controls Page 7 BX1360SD/1780SD Features Page 10 General Operating Instructions Page 12 Club Mono PA System Setup Page 13 Club Stereo PA System Page 14 Club Stereo PA System with Subwoofer... -
Page 5: Introduction

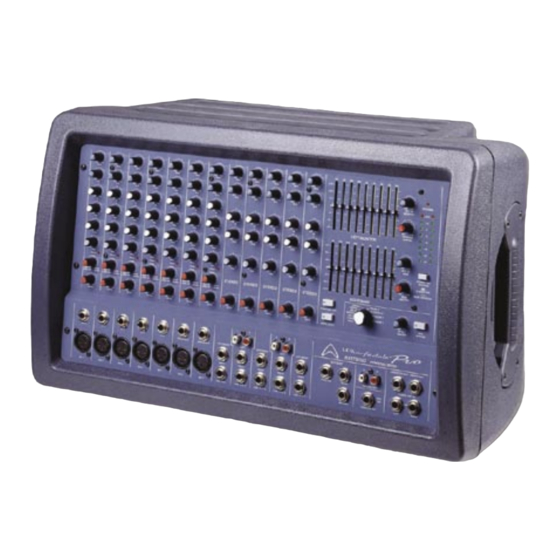

The Wharfedale Pro BX Series comprises three compact stereo powered mixers with built in stereo digital effects with 8 presets and two graphic equalisers as well as two low noise high efficiency power amplifiers. -
Page 6: Bx1060Sd Features And Controls
BX1060SD FEATURES AND CONTROLS: 1. Low Z input with phantom power (balanced): The microphone inputs are electronically balanced for maximum noise suppression and have characteris- tics matching all low impedance dynamic microphones. Condenser microphones may also be connected with 48Volt DC Phantom Power activated via the phantom power switch in the master section. - Page 7 8. Tone control: The LOW, MID and HIGH EQ controls independently adjust the bass, middle and treble frequencies for each channel. The LOW EQ control allows for up to +15dB of boost or cut at 80Hz or below. The center detented posi- tion indicates that there is no boost or cut.
- Page 8 17. Main /Left Equalizer: The graphic equalizer is used to shape the overall frequency response for the main output signal by up to+12dB. It affects the MAIN OUT- PUT signal and the speaker output. Frequency response is flat when a slider is in the center position.
- Page 9 27. Effect Send/Effect Return: The effects send jack is a 1/4” connector that produces an unbalanced line-level signal. This signal is fed from the internal EFX bus, just after the EFX master level control to connect an external effect processor. To return the signal use the same type of cable and insert into the Effect Return jack.
- Page 10 33. Monitor Output: This jack is used to connect to an external monitor amplifier and speakers from the internal monitor bus, just after the MONITOR MASTER and PRE EQUALIZER. 34. Power on /off Switch: This switch turns the power on and off, the LED will illuminate when the Power is On.
-
Page 11: Bx1360Sd/1780Sd Features
Key to BX1360/1780SD Features: 1. Low Z input with phantom power (balanced) 2. Hi Z input for high output source (balanced) 3. Super Hi-Z input (balanced) 4. Stereo line level input (unbalanced) 5. Level control 6. Gain control 7. Peak indicator LED 8. - Page 12 12. Power on LED 13. EFX TO MAIN 14. EFX to MONITOR 15. Effect preset select 16. EFX MASTER send 17. EFX BYPASS 18. Monitor/Left Equalizer 19. Main/Right Equalizer 20. Stereo Mix/Main Monitor switch 21. Main Master Level 22. Monitor Master Level 23.
- Page 13 33. Power on /off Switch 34. Fuse 35. A/C power Inlet 36. Cooling FAN 37. Speaker output Page 9...
-
Page 14: General Operating Instructions
General Operating Instructions: 1. Ensure the Power Switch is set to “OFF” before connecting setup. 2. Select either ‘Stereo Mix’ or ‘Main Monitor’ by pressing the routing button. 3. Connect your external components. You can connect a low-impedance microphone to the 3-pin XLR type MIC inputs on the front panel on channel 1-7 or connect a high impedance unbalanced microphone to the Hi-Z jack on channel 1-4, or to the super Hi-Z jack. - Page 15 and harmony vocal channels. 16. Make sure you increase the input channel volume level on this input to what will be during normal use. 17. Use the MAIN/MONITOR EQ in the master section to adjust the overall tone balance. 18. Feedback during a performance is usually caused by one of the monitors. The main PA speaker is less likely to feedback because the mics are further away from the main PA speakers.
-
Page 16: Club Mono Pa System Setup
CLUB MONO PA SYSTEM SETUP PAGE 12... -
Page 17: Club Stereo Pa System
CLUB STEREO PA SYSTEM SETUP PAGE 13... -
Page 18: Club Stereo Pa System With Subwoofer
CLUB STEREO PA SYSTEM WITH SUBWOOFER PAGE 14... -
Page 19: Club Stereo Pa System With Powered Monitors
CLUB STEREO PA SYSTEM WITH POWERED MONITOR SPEAKERS PAGE 15... -
Page 20: General Specifications
Temp (Heatsink Temp ≥ 90 degrees) Foot switch: Digital effect mute on/off EFX bypass: Digital effect on/off Power consumption: BX1060/1360SD: 1000W BX1780SD: 1300W Dimensions(WxHxD): 600*390*400mm Weight: BX1060SD: 17.8kg BX1360SD: 18.2kg BX1780SD: 19.2kg PAGE 16 Supplied accessories: AC power cord & owners manual... - Page 21 Unbalanced 30KΩ -12dB(195mV) +14dB(3.8V) Stereo RCA input 35KΩ -12dB(195mv) 1360/1780SD Effect Return Phone jack unbalanced 10KΩ -12dB(195mV) TAPE Input BX1060SD 30KΩ -12dB(195mV) AUX Input BX1060SD Phone jack Unbalanced 30KΩ -12dB(195mV) OUTPUT SPECIFICATIONS: Output Connector type Actual source Nominal impedance Output level...
