- Page 1 MIXERS C O N N E C T 502/802/502USB/802USB Wharfedale PRO Manuale d’Istruzioni...
- Page 2 SOMMARIO Importanti istruzioni ed avvertenze pag. 2 Introduzione e presentazione – interfaccia USB “ Funzioni Connect 502-802 e USB “ Utilizzo canali mono “ Utilizzo canali stereo “ Utilizzo sezione Master “ Utilizzo pannello posteriore “ Schema collegamenti “ Specifiche tecniche “...
- Page 3 INTRODUZIONE – pag. 4 del manuale originale Congratulazioni per l’acquisto del vostro mixer della serie Connect che sono il risultato di molti anni di esperienza nell’utilizzo, nella progettazione e nella fabbricazione di apparecchiature professionali audio. Da quando Gilbert Briggs costruì il suo primo altoparlante nel 1932 ad oggi Warfedale ha sempre mantenuto lo stesso standard di qualità...
- Page 4 FUNZIONI DI CONNECT 502 – pag. 6 del manuale 1 canale Mono Mic/Line e 2 canali Stereo Controlli del guadagno in ingresso sui canali Mic/Line EQualizzatore a due bande (solo canale Mono) Ingressi ed uscite Jack stereo da 1/8” e RCA ...
- Page 5 UTILIZZO DEI CANALI STEREO 1. Ingresso bilanciato/sbilanciato TRS per il canale sinistro o per sorgenti di linea mono. 2. Ingresso bilanciato/sbilanciato TRS per il canale destro di sorgenti di linea stereo. 3. Controllo del guadagno: per ottenere il miglior rapporto segnale/rumore ed una gamma dinamica adeguata (solo per il modello Connect 802).
- Page 6 Dalla pagina 14 alla 17 si possono consultare gli schemi a blocchi dei modelli Connect per gli addetti ai lavori. °°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°°° SPECIFICHE TECNICHE Modello Connect 502 – 802 Massimo livello di uscita + 22 dBu Massimo livello di uscita cuffia >150 mw@ 32 ohms Distorsione armonica totale <...
- Page 7 (± 15dB) ±1.5 dBu 80Hz shelving Indicatore di meter LED doppio a 4 segmenti (uscita di +4dB=0dB) main L/R Alimentazione 220/240 Volt 50 Hz Dimensioni 509mmx143xxx183.8mm (Connect 502) 509mmx208mmx183.8mm (Connect 802) Peso 0,64kg (Connect 502) 0,92 kg. (Connect 802)
- Page 8 OPERATING MANUAL AND USER GUIDE www.wharfedalepro.com...
-
Page 9: Table Of Contents
Important Warnings & Safety Information ................2 Introduction ........................4 About The Connect Series ....................4 Common Features ......................4 USB Interface ........................5 Connect 502 Features ...................... 6 Connect 802 Features .......................6 Connect 502 USB Features....................6 Connect 802 USB Features....................6 Mono Channel Walkthough ....................7 Stereo Channel Walkthough ....................7... -
Page 10: Important Warnings & Safety Information
CONNECT 502/802/502USB/802USB IMPORTANT WARNINGS & SAFETY INSTRUCTIONS Read these instructions Follow all instructions Keep these instructions Heed all warnings Do not use this apparatus near water Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 11 OPERATING MANUAL AND USER GUIDE ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR 19. - This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
-
Page 12: Introduction
Connect Series mixer. ABOUT THE CONNECT SERIES The Connect Series from Wharfedale Pro are high quality compact mixers that are suitable for a wide range of applications. Professional big mixer features such as Phantom powered, balanced XLR microphone inputs give you full functionality and great sound in an ultra compact and cost effective package that is ideal for live sound, home studio recording and fixed installations. -
Page 13: Usb Interface
OPERATING MANUAL AND USER GUIDE USB INTERFACE The USB connector enables computers with USB connectivity to interface directly with the Connect mixer for full duplex recording and playback. In recent years the introduction of USB connectivity has ushered a new appreciation of the capabilities of computer audio, helping to fuse both digital and analogue and open up endless possibilities for the recording musician. -
Page 14: Connect 502 Features

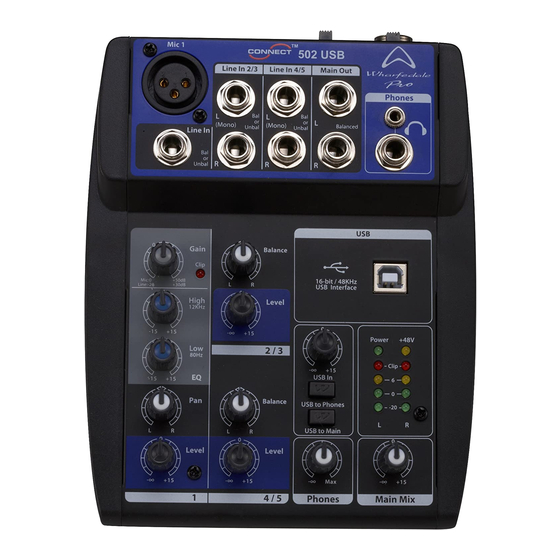

• 2 Band EQ (Mono Channel Only) • 2 Track Stereo Inputs And Outputs With ⅛” And RCA Jacks • 2 Track Destination Switches CONNECT 502 USB FEATURES • 1 Mono Mic/Line Channel and 2 Stereo Channels • Input Gain Controls On Mic/Line Channels •... -
Page 15: Mono Channel Walkthough
OPERATING MANUAL AND USER GUIDE MONO CHANNEL WALKTHOUGH Balanced XLR input for connecting microphones Balanced/Unbalanced TRS input for line level sources Gain control for calibrating sources and applying correct gain structure Clip LED. Shows when clipping is occurring High EQ centred at 2KHz Mid EQ centred at 1KHz (Connect 802 only) Low EQ centred at 80Hz Used to spatially place the channel within the stereo field... -
Page 16: Master Section Walkthough
CONNECT 502/802/502USB/802USB MASTER SECTION WALKTHOUGH Balanced/unbalanced TRS main outputs For connecting headphones 2-Track inputs for playback devices (/8” jack takes priority) 2-Track outputs for recording devices (/8” jack takes priority) ALT. DESCRIPTION DATE Indicates +48v phantom power activity 502 USB... -
Page 17: Rear Panel Walkthough
OPERATING MANUAL AND USER GUIDE REAR PANEL WALKTHOUGH AC Supply input, use only the supplied Wharfedale Pro authorised power supply Turns the Connect Mixer on or off Switches the global +48V phantom power on or off How to use FX... - Page 18 CONNECT 502/802/502USB/802USB CONNECT 502 DIMENSIONAL DRAWING...
- Page 19 OPERATING MANUAL AND USER GUIDE CONNECT 802 DIMENSIONAL DRAWING...
- Page 20 CONNECT 502/802/502USB/802USB CONNECT 502 USB DIMENSIONAL DRAWING...
- Page 21 OPERATING MANUAL AND USER GUIDE CONNECT 802 USB DIMENSIONAL DRAWING...
-
Page 22: Block Diagram
CONNECT 502/802/502USB/802USB CONNECT 502 BLOCK DIAGRAM... - Page 23 OPERATING MANUAL AND USER GUIDE CONNECT 802 BLOCK DIAGRAM...
- Page 24 CONNECT 502/802/502USB/802USB CONNECT 502 USB BLOCK DIAGRAM...
- Page 25 OPERATING MANUAL AND USER GUIDE CONNECT 802 USB BLOCK DIAGRAM...
-
Page 26: Specifications
CONNECT 502/802/502USB/802USB SPECIFICATIONS Model CONNECT 502 Maximum Output Level +22dBu Maximum Headphone Output Level >50mw @ 32 ohms <0.0025% @ +4dBu Frequency Response 20Hz-20kHz ±dB Hum and Noise -27dB Mic Pre Equivalent Input Noise -95dBu Residual Noise Maximum Input Levels... - Page 27 OPERATING MANUAL AND USER GUIDE Model CONNECT 802 Maximum Output Level +22dBu Maximum Headphone Output Level >50mw @ 32 ohms <0.0025% @ +4dBu Frequency Response 20Hz-20kHz ±dB Hum and Noise -27dB Mic Pre Equivalent Input Noise -95dBu Residual Noise Maximum Input Levels Mic In: +0dBu Line In: +20dBu 2TK IN: +20dBu...
- Page 28 CONNECT 502/802/502USB/802USB SPECIFICATIONS Model CONNECT 502 USB Maximum Balanced Output Level Main /4" Jack Balanced out +2dBu +/-dBu (1%T.H.D. at 1kHz ) Headphone output 50mw +/-5mw @ 32ohms THD+N <0.025% @ + 4dBu +/-0.5dBu Frequency Response 20Hz~20kHz +/-2dB Hum and Noise 20Hz-20Khz(150R)
-
Page 29: Wharfedale Pro Limited Warranty
0.92kg / .9kg WHARFEDALE PRO LIMITED WARRANTY Wharfedale Pro Connect Series products are warranted of manufacturing or material defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorized Wharfedale Pro dealer or distributor for information. - Page 30 IAG HOUSE, Sovereign Court, Ermine Business Park Huntingdon, Cambs, PE29 6XU, England www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2011 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group.
