Service Manual :

PM-600

Professional Audio

Mixer s

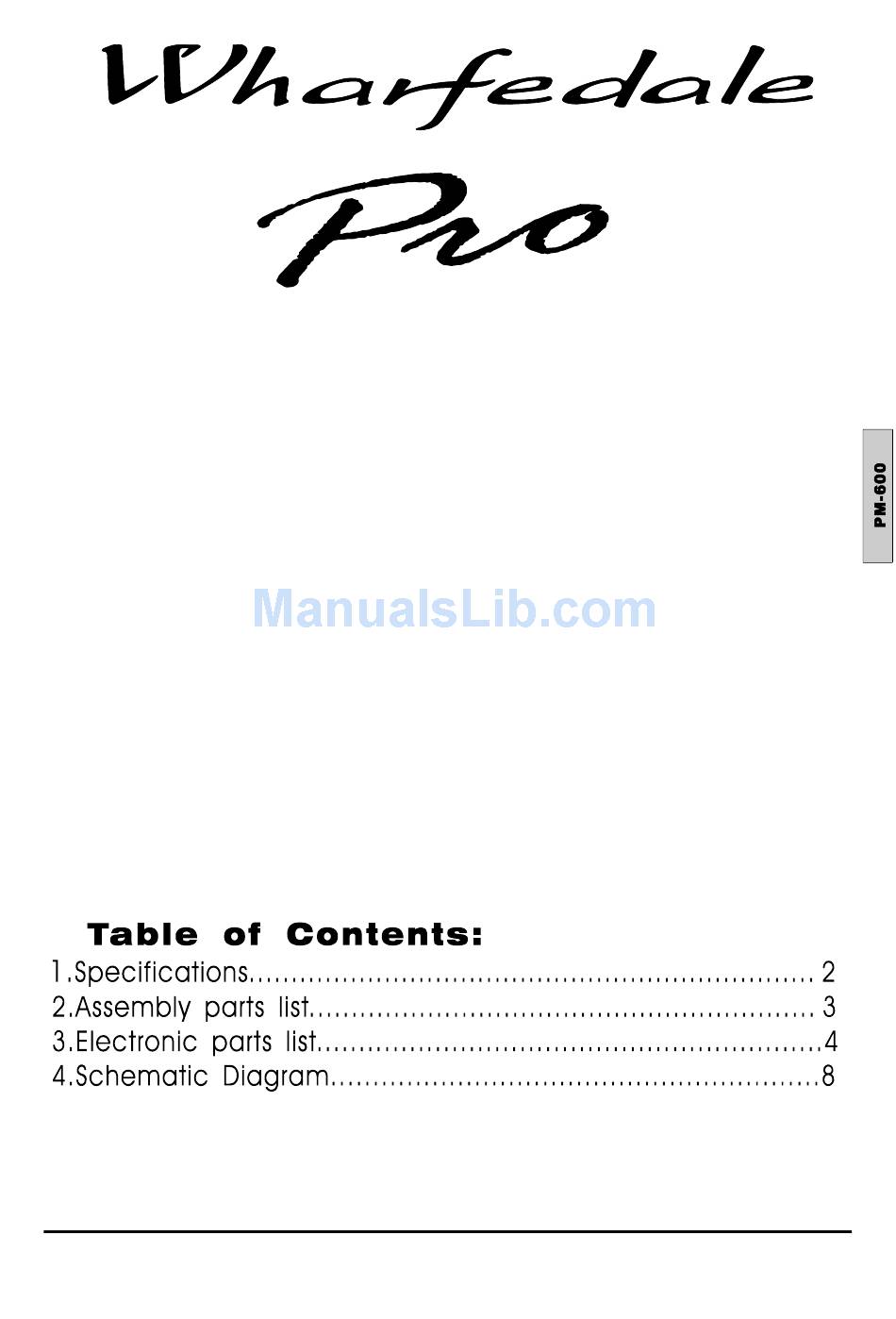

Table of Contents

Page 1 Service Manual : PM-600 Professional Audio Mixer s...
Page 2: Specifications
1.SPECIFICATIONS INPUTS BALANCED MIC LINE CHAMMELS INPUT IMPEDANCE LOW Z(BALANCED) 2KOHMS LINE 16KOHMS MAIN OUT UNBA.TRS FREQUENCY RESPONSE 20TO25KHz MAXIMUM CHANNEL GAIN LOW Z(BALANCED) 40dB LINE 20dB MAXIMUM INPUT LEVEL LOE Z(MIC) LINE 20dB MAXIMUM OUTPUT LEVEL MAIN 18dBv RECORD OUT 5dBv MASTER EQ HI EQ...
Page 3: Assembly Part List
2.ASSEMBLY PART LIST PART NAME DESCRIPTION 088-1247000000 MAIN P.C.B 088-1247000300 AMP P.C.B 088-1245003800 IMPROT P.C.B 022-1076902156 TRANSFORMER 215-1247000011 KNOB ASHEN 215-1247000022 KNOB 215-1247000033 KNOB SAHEN 309-1247000001 MAIN FRAME 310-1069010001 METAL GRILLLE 524-3022080811A SCREWS SK(+)3*8MC HBZn 524-3003080811A SCREWS SK(+)3*8DA HBZn 537-4001120801A SCREWS MP(+)4*12MC BZn 500-4070320800A...
Page 4: Electronic Parts List
3.ELECTRONIC PARTS LIST PART NAME DESCRIPTION 088-1247000000 MAIN P.C.B 088-1247000300 AMP P.C.B 088-1247003800 IMPROT P.C.B 017-0150000000 PT2399 017-0160000000 NJM4558D 017-0950000000 HPC7805H LM7805CK NEC TO-220 020-2032111115 POTENTIOMETER S.ROT/VR 20KB 30MM P L=30mm EVU J84 020-5022127315 POTENTIOMETER F3053Y 020-5032111115 POTENTIOMETER S.ROT/VR 50KB 30MM P 017-0190000000 L7815CV+15 OUT 017-1830000000...
Page 5: Schematic Diagram
4.SCHEMATIC DIAGRAM...
Page 6 4.SCHEMATIC DIAGRAM...
Page 7 4.SCHEMATIC DIAGRAM...
Page 8 4.SCHEMATIC DIAGRAM...
