Summary of Contents for Wharfedale Pro Pro PM500

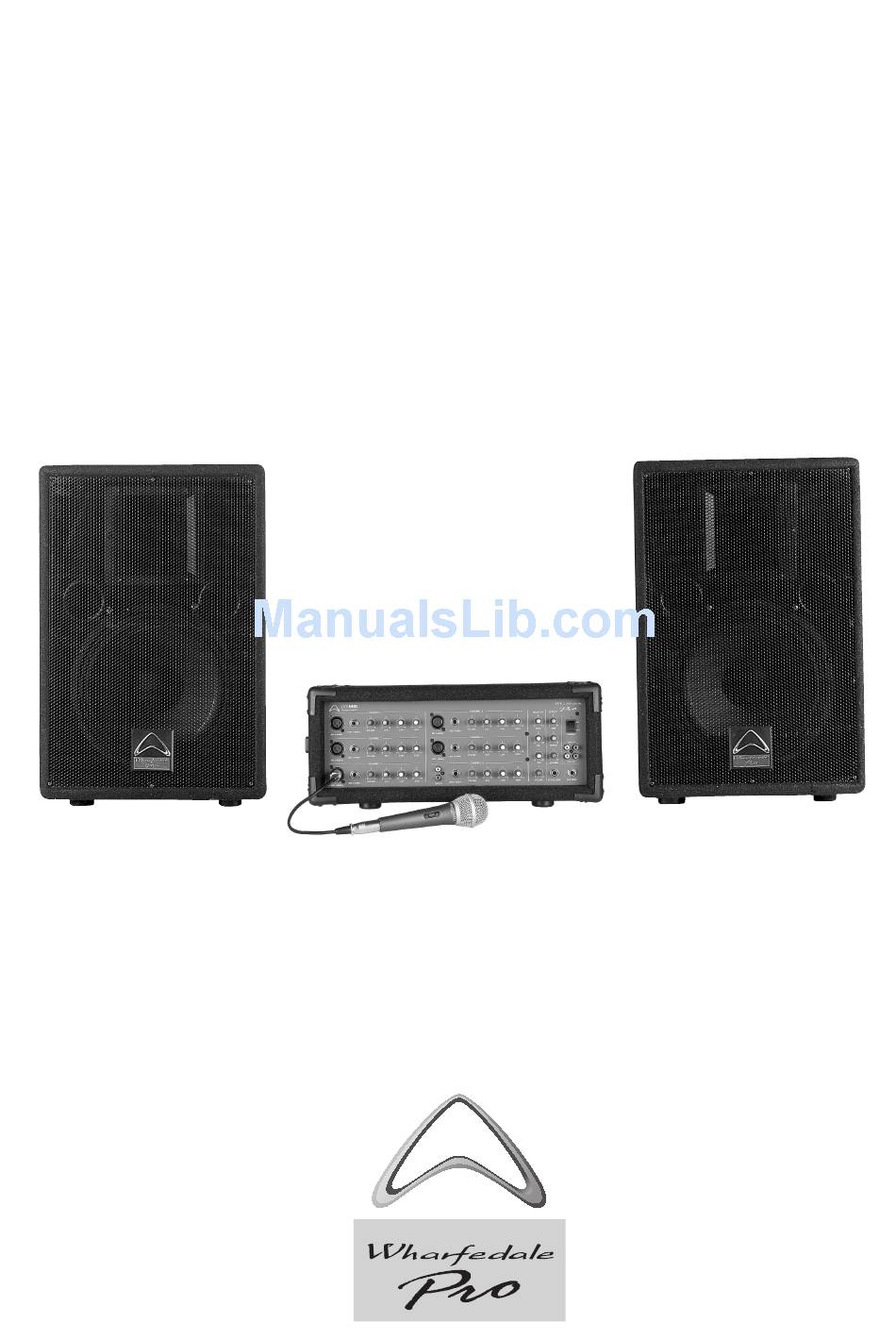

- Page 1 PM SERIES POWERED MIXERS: PM500 SYSTEM PM600 SYSTEM...
- Page 2 ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. Wharfedale Professional Limited Warranty: The PM Series of Powered Mixers are warranted to be clear of manufacturing or materials defects for a period of one year from the original date of purchase. In the event of malfunction, contact your authorised Wharfedale Professional dealer of distributor.
- Page 3 WHARFEDALE PROFESSIONAL PM SERIES POWERED MIXERS CONTENTS: PAGE 3: INTRODUCTION FEATURES PM500 AND PM600 GETTING STARTED WITH YOUR PM SYSTEM PAGE 4: FEATURES PT LOUDSPEAKERS PAGE 5: CHANNEL STRIP DESCRIPTION PAGE 6: DIGITAL DELAY SECTION MASTER CONTROL PAGE 7: TAPE IN AND RECORD OUT...

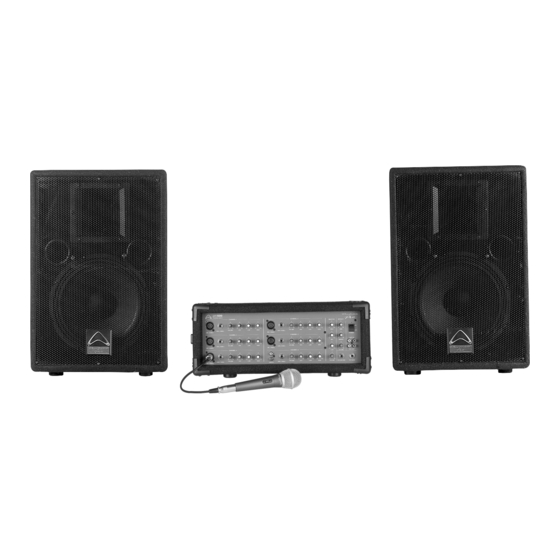

- Page 4 WHARFEDALE PROFESSIONAL PM SERIES POWERED MIXERS INTRODUCTION: Congratulations on the purchase of your PM System from Wharfedale Professional. The PM System is available in a choice of two versions - the PM 500 and the PM 600. The PM500 System comprises 1 x PM 500 powered mixer, two PT10 two way 10”...
- Page 5 PM600 comes with a pair of PT12 loudspeakers. The PT series are high output, high efficiency loudspeakers featuring Wharfedale Pro proprietary drive unit and a purpose built high quali- ty Electro-Dynamic high frequency driver. With built in high frequency driver overload protection, the PT series are perfect for life on the road.
- Page 6 WHARFEDALE PROFESSIONAL PM SERIES POWERED MIXERS CHANNEL STRIP DESCRIPTION PM500: 1. VOLUME: Determines volume level of the channel in the mix. 2. LOW EQ: The LOW EQ control gives 15db of boost or cut at 80Hz. By turning the knob to the right (boost) instruments such as guitars can be given more clarity, or vocals can be ‘warmed’.
- Page 7 WHARFEDALE PROFESSIONAL PM SERIES POWERED MIXERS MASTER SECTION DESCRIPTION PM500 AND PM600: DIGITAL DELAY SECTION: The built in digital delay will process the sig- nal from the input channels and feed to the master output. The effects of digital delay...
- Page 8 WHARFEDALE PROFESSIONAL PM SERIES POWERED MIXERS TAPE IN AND REC OUT PM500 AND PM600: The TAPE IN sockets allow cassette recorders or CD players to be added to the Main output. The RECORD OUTPUT provides a signal output to a cassette deck and home audio equipment.
- Page 9 WHARFEDALE PROFESSIONAL PM SERIES POWERED MIXERS REAR PANEL DESCRIPTION PM600: PM600: 1. MAIN LINE OUT: This unbalanced insertion point allows the main output to be sent to an external signal processor or power amplifier. The insert is a 1/4' phono jack socket which is nor- mally bypassed.
- Page 10 WHARFEDALE PROFESSIONAL PM SERIES POWERED MIXERS APPLICATIONS: PM600 PT LOUDSPEAKERS Power Amplifier Graphic EQ LEVEL VOCAL MIC GUITAR CD PLAYER AUDIO CASSETTE KEYBOARD PM Series Instruction Manual Page 9...
- Page 11 WHARFEDALE PROFESSIONAL PM SERIES POWERED MIXERS DIMENSIONS: PM600 475mm/18.7” including carpet box End view 188mm 7.4” 241mm Front view 9.5” PM600 RM 485mm/19” including rack mounts End view 145mm 5.7” Front view 228mm 8.9” PM500 475mm/18.7” including carpet box 155mm End view 6.1”...
- Page 12 MODEL PM500 MIXER PM600 MIXER POWER AMP - MAX OUTPUT IN WATTS 4 OHMS 120 WATTS 230 WATTS INPUTS BALANCED MIC LINE CHANNELS INPUT IMPEDANCE LOW Z (BALANCED) 2K/OHMS 2K/OHMS LINE 16K/OHMS 16K/OHMS MAIN OUT UNBAL. TRS UNBAL. TRS FREQUENCY RESPONSE (+/-3dB) 20Hz to 25KHz 20Hz to 25KHz MAXIMUM CHANNEL GAIN...
- Page 13 MODEL NAME PT-10 PT-12 FREQ RESP +/- 6 dB 65Hz-20KHz 50Hz-20KHz SENSITIVITY 1W@1M 95dB 97dB NOMINAL COVERAGE HOZ 90º 90º NOMINAL COVERAGE VERT 60º 60º INPUT POWER (WATTS) CONTINUOUS MUSIC PEAK MAX SPL PEAK 119dB 121dB NOMINAL IMPEDANCE 8Ω 8Ω PRODUCT DIMS (MM) SHAPE TRAP...
- Page 14 WHARFEDALE PROFESSIONAL IAG HOUSE, SOVEREIGN COURT, ERMINE BUSINESS PARK HUNTINGDON, PE29 6XU, UNITED KINGDOM www.wharfedalepro.com 911.383...
