The DIAGNOSTIC MODE for mode GWL08 now incorporates both the switch test mode and the
data display mode. You no longer have to use the advance button to toggle between them.
To enter the DIAGNOSTIC MODE:
1. Turn the power on at the power point and off at the console.
2. Press and hold the WASH TEMPERATURE DOWN then press the POWER button. The
machine will give 2 short beeps
3. The different levels of information can now be extracted by using the SPIN SPEED UP or the
SPIN SPEED DOWN buttons.
DATA DISPLAY
Press the SPIN SPEED UP button until the HOLD and SLOW SPIN LED's are on, (Binary count 3).
The WASH PROGRESS LED's will now display the fault code.
By using a BINARY NUMBERING SYSTEM each unique fault code can be given a number.
3.1 EXAMPLES OF BINARY CODE
Note: The detailed fault code will only be displayed for 1 cycle after the fault has been rectified.
3.0 DIAGNOSTIC MODE

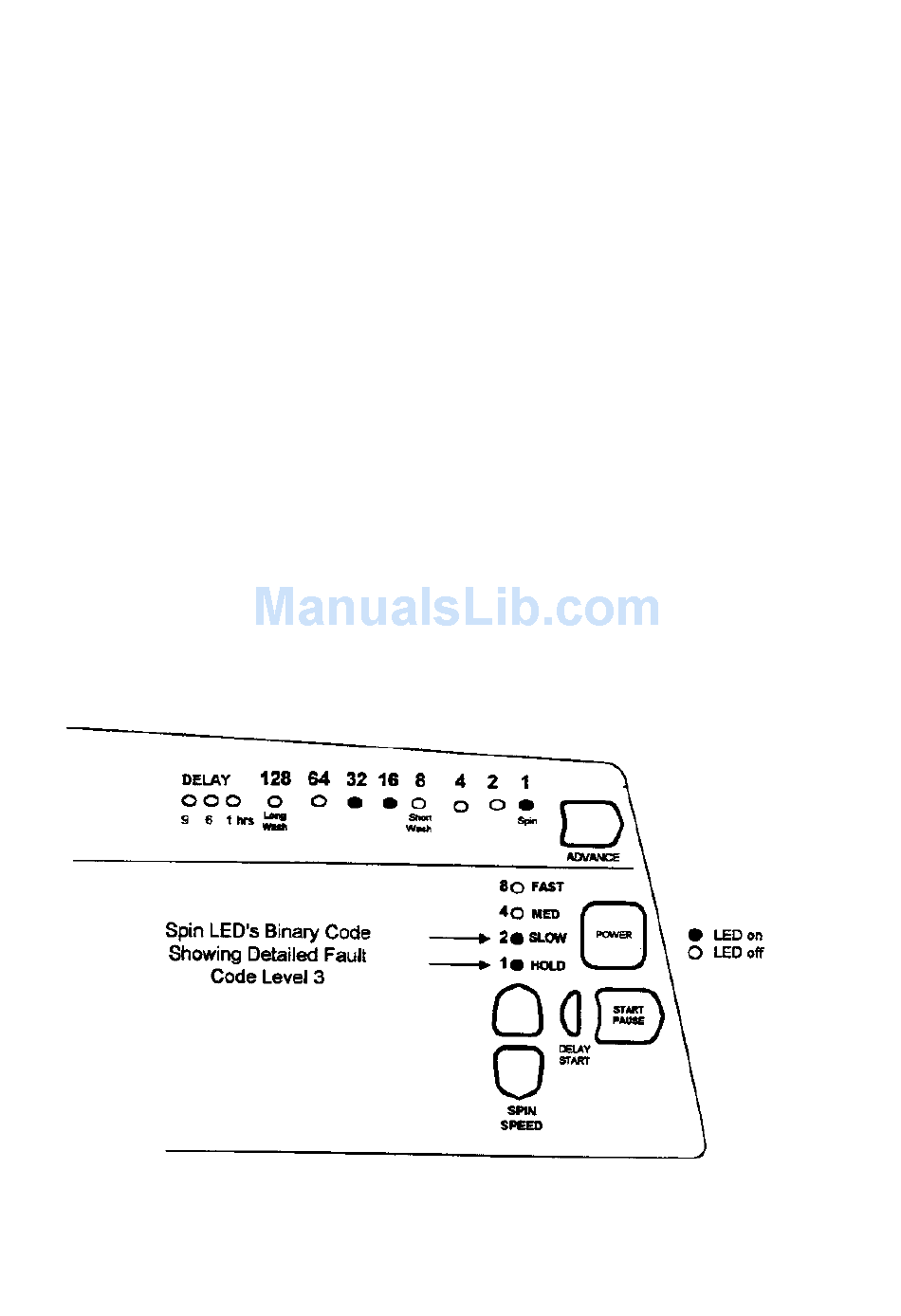

Wash Progress LED's Binary Code
Detailed Fault Code
5
32+16+1=49
