UPER ERVER 1027GR-TRF/1027GR-TRFT User's Manual
2-4

Installing the System into a Rack

This section provides information on installing the SC118GQ chassis into a rack
unit with the rails provided. There are a variety of rack units on the market, which
may mean that the assembly procedure will differ slightly. You should also refer to
the installation instructions that came with the rack unit you are using.
Note: This rail will fi t a rack between 26" and 33.5" deep.

Identifying the Sections of the Rack Rails

The chassis package includes two rack rail assemblies in the rack mounting kit.
Each assembly consists of two sections: an inner fi xed chassis rail that secures
directly to the server chassis and an outer fi xed rack rail that secures directly to
the rack itself.

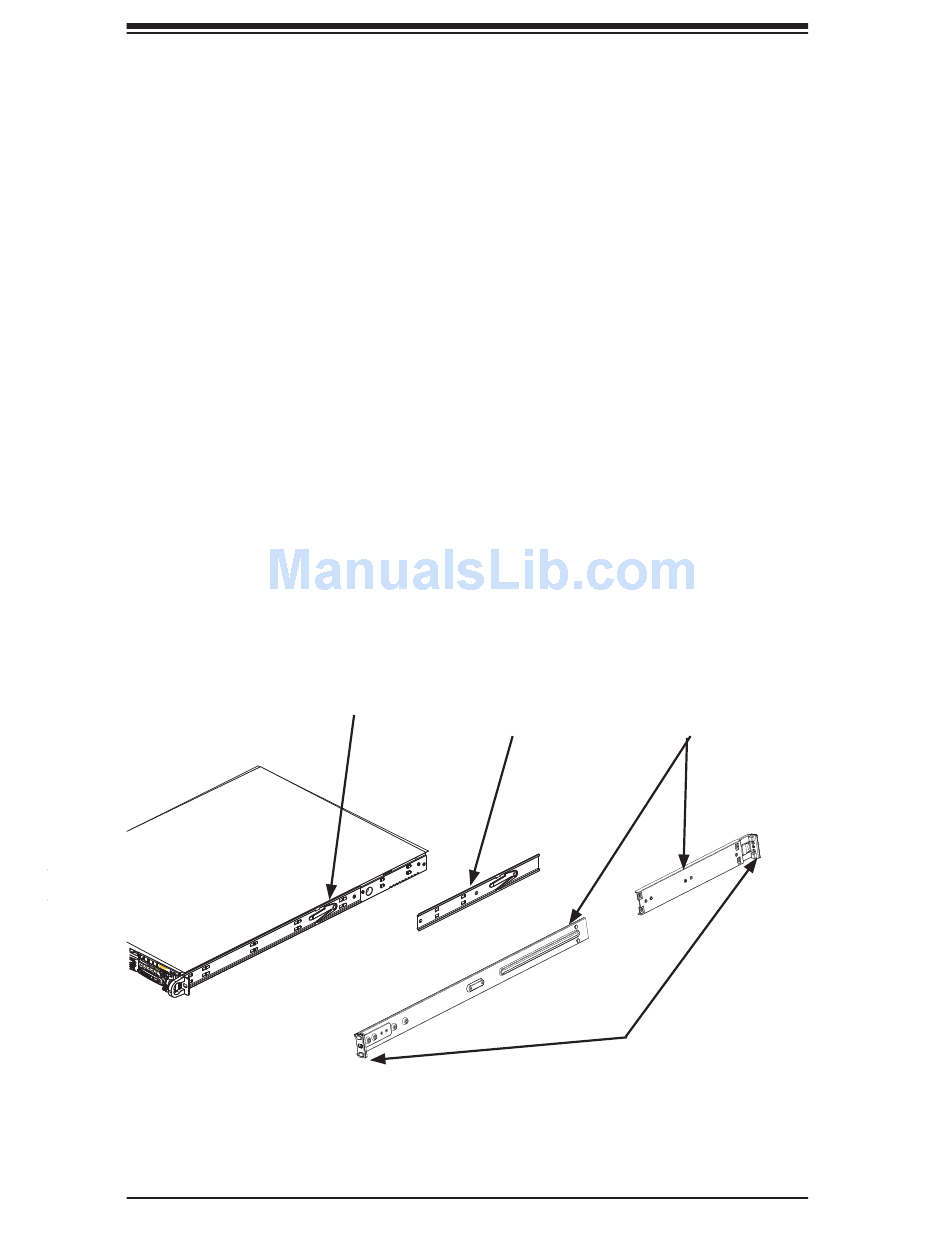

Figure 2-1. Identifying the Sections of the Rack Rails
Inner Rail (preattached
to the chassis)
Inner Rail
slide together, then
Extension:
attach to the front
attach to the
and rear brackets
chassis
Front and Rear
Brackets: attach to
2-4
Outer Rails:
the rack
