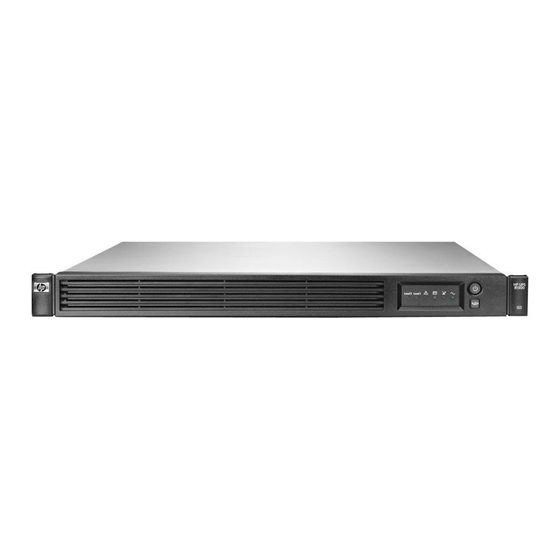

HP R1500 Generation 3 Installation Instructions Manual
Hide thumbs
Also See for R1500 Generation 3:
- User manual (115 pages) ,
- Product end-of-life disassembly instructions (12 pages) ,
- User manual (69 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for HP R1500 Generation 3
Summary of Contents for HP R1500 Generation 3

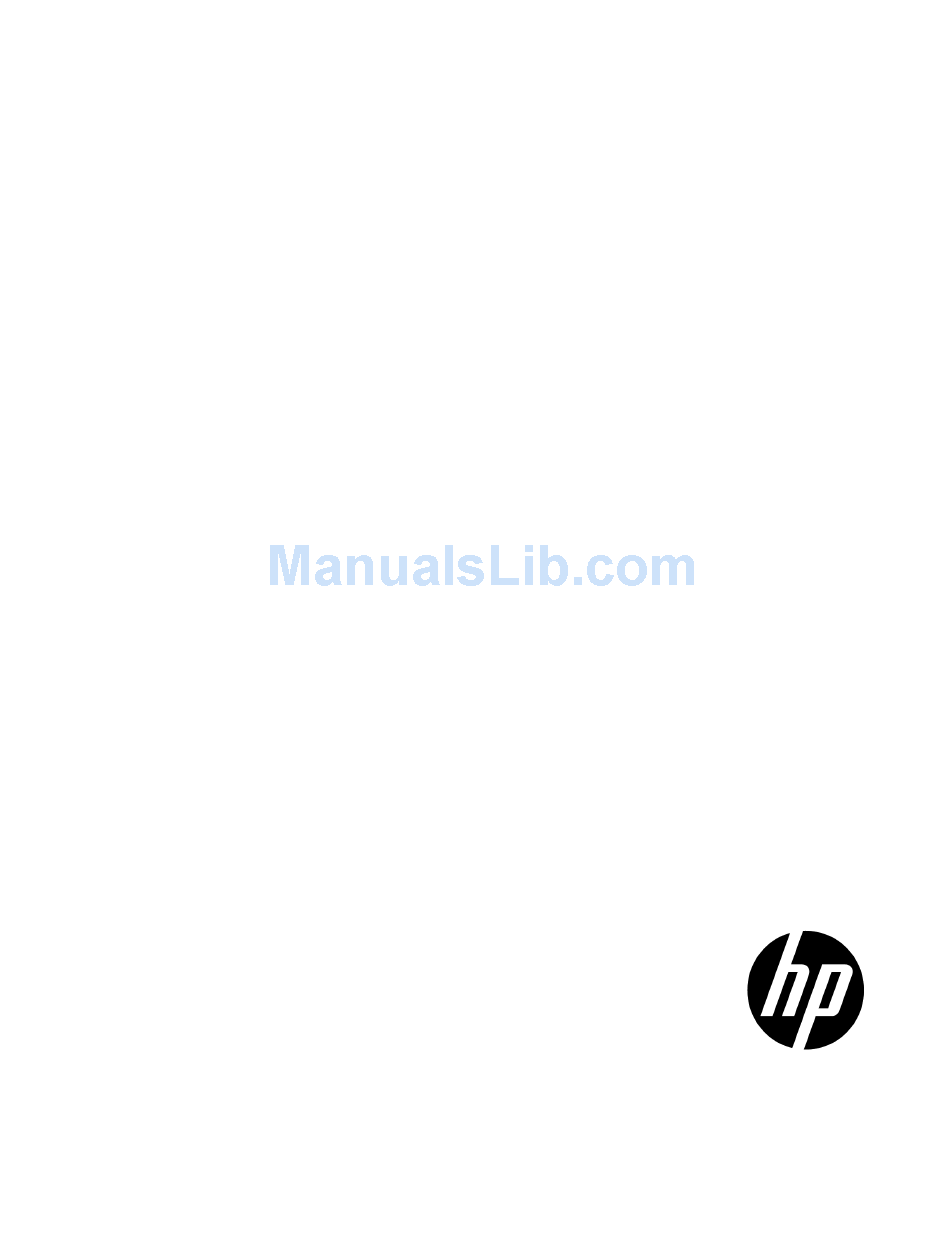

- Page 1 HP UPS R1500 Generation 3 Installation Instructions Part Number 650952-001...
-
Page 2: Kit Contents
1200 VA/900 W (JPN) or 1500 VA/1000 W (INTL). Tools required For more information about any of the topics covered in this document, see the UPS user guide located on the documentation CD or HP website A Philips screwdriver is required. (http://www.hp.com/go/rackandpower). -
Page 3: Readying The Equipment
If the date on the battery recharge date label has passed without the battery being recharged, contact an HP authorized service representative for directions. Transport the packaged unit to its installation location. Unpack the equipment near the rack where the unit will be assembled. -
Page 4: Connecting The Batteries
Use the cage nut tool to install cage nuts or clip nuts into the front Attach the chassis to the rack using the supplied screws. of the rack. (optional) Insert the rear stabilization brackets into the mounting Insert a screw through the bottom hole of the mounting rail into rails and then attach the brackets to the UPS. -
Page 5: Connecting The Host Computer
Connect the UPS to a host computer using either the USB cable or the DB9 serial cable included with the UPS. Install HP Power Protector on the host computer. See the HP website (http://www.hp.com/go/rackandpower) to download the latest version of HP Power Protector. -
Page 6: Connecting The Network Transient Protectors
Connecting devices to the UPS Connecting the USB communications port CAUTION: Do not plug laser printers into the UPS output receptacles. The instantaneous current drawn by this type of printer can overload the UPS. Before connecting devices, verify that the UPS will not overload by checking that the ratings of the devices do not exceed the UPS capacity. -
Page 7: Connecting The Ups Network Module
Connecting the UPS Network Remove the two screws securing the UPS option slot cover plate and remove. Module The UPS Network Module card is provided to manage the attached servers. RJ 45 network patch panel cables are required to use this card. The RJ 45 network patch panel cables are not included. - Page 8 © Copyright 2011 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
