9.2 Parent unit
A
D
C
9.2.3 Recharging batteries
With the enclosed rechargeable battery pack or 3 x AAA NiMh rechargeable batteries (not
supplied) installed, the batteries can be charged with the included charger(DC 7,5V /
200mA).
Only use the included AC/DC ADAPTER with "AAA" rechargeable
batteries. Do not charge this unit when regular "AAA" 'LR03' alkaline
batteries are installed.
Do not connect other chargers. This may damage your device.
TOPCOM Babytalker 1010
B
E
- +
+ -
-
+
-
+

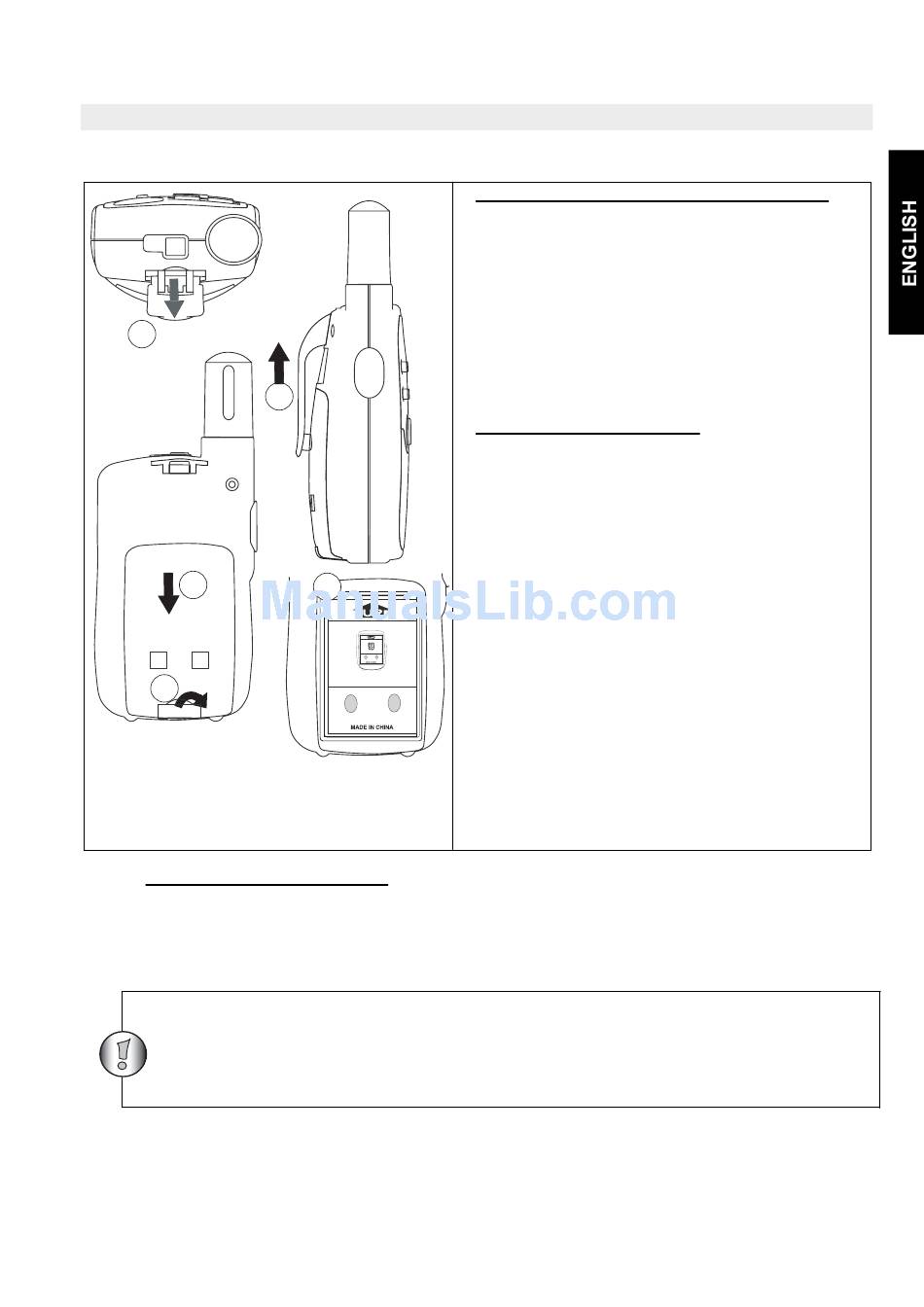

9.2.1 Removing/Installing the Belt Clip
1 To remove the clip from the unit, push
the belt clip (B) towards the antenna,
while pulling the belt clip tab away from
the unit (A).
2 When re-installing the belt clip, a click
indicates the Belt Clip is locked into
position.
9.2.2 Battery Installation
1 Remove the belt clip (See chapter
9.2.1 ).
2 Pull the battery door tab down (C) and
slide the battery cover away from the
antenna. (D)
3 Install the rechargeable battery pack
following the polarity as shown. Ensure
that the metal contacts on the site are
facing outwards from the radio to
connect on the battery door.(E)
4 Re-install the Battery Cover and Belt
Clip (See chapter 9.2.1 ).
Note: Instead of the supplied battery pack, the
PMR can be used with 3xAAA NiMh batteries.
Follow the polarity as shown in the battery
compartment when installing.
