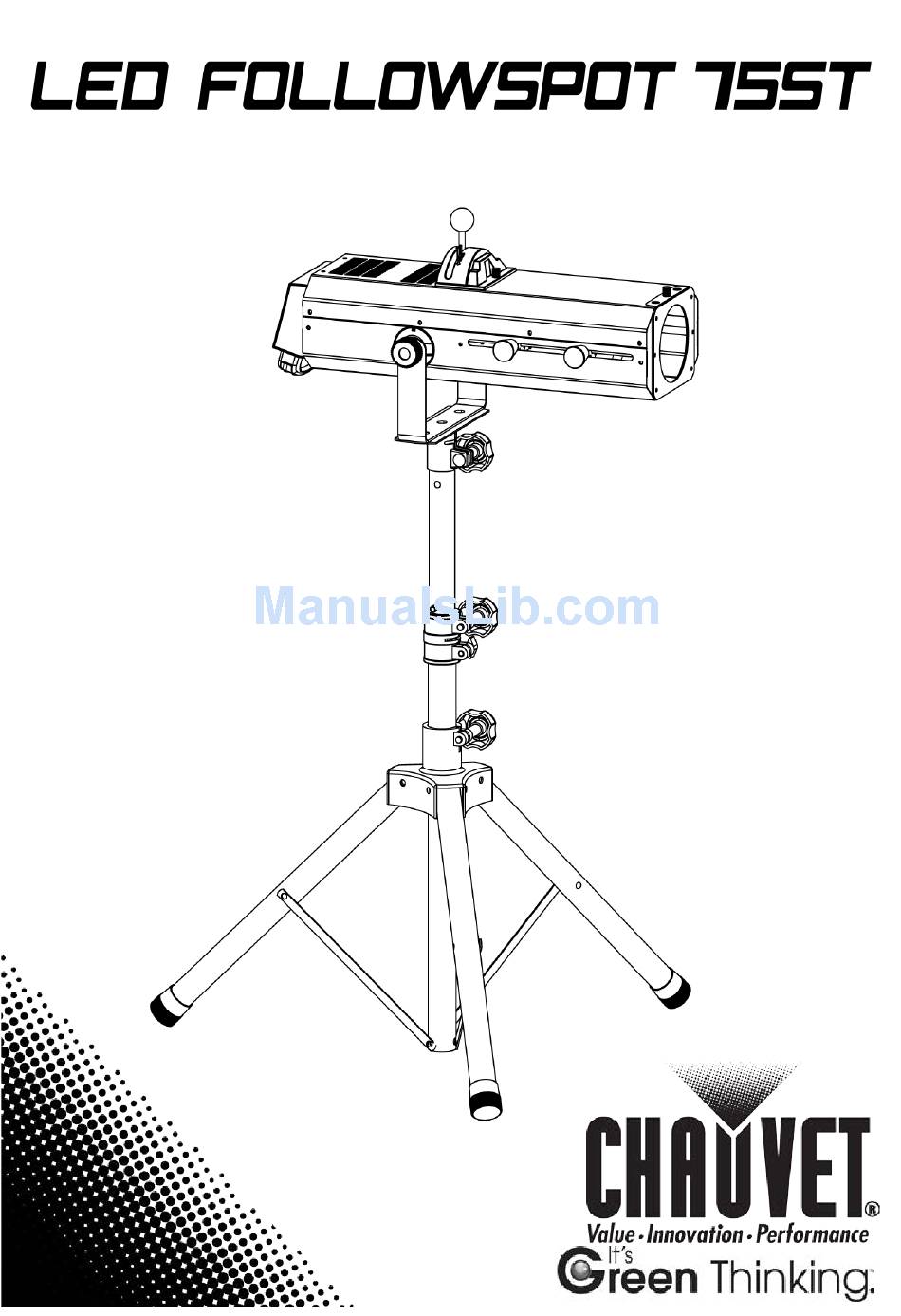

- Page 1 Quick Reference Guide...
-
Page 2: About This Guide
LED Followspot 75ST QRG The LED Followspot 75ST Quick Reference Guide (QRG) contains the About this product’s connection and mounting information as well as the menu options Guide and the DMX values. • This Quick Reference Guide DOES NOT replace the product’s user manual, which you can download from the CHAUVET®... -
Page 3: Before You Begin
Quick Reference Guide Included • Tripod Prior to using your LED Followspot 75ST, ensure that you have received all Before You parts indicated above in good condition. If the container or material inside Begin appear damaged or show signs of mishandling, notify the carrier immediately, not CHAUVET®. - Page 4 LED Followspot 75ST QRG Focus Lens Adjustment Knobs Iris Adjustment Control Panel Button Menu Bracket Adjustment Knob Mounting Bracket Product Overview DMX In/Out On/Off Switch Power In Page 4 of 8...
-
Page 5: Menu Options
LED Followspot 75ST QRG This product has a switchable power supply that can work with an input AC Power voltage of 115 VAC or 230 VAC, 50/60 Hz. Fuse 1. Disconnect this product from power. Replacement 2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap from the housing. -
Page 6: Dmx Linking
If you are not familiar with the DMX standard, please download the DMX Primer document from www.chauvetlighting.com. DMX Connection The LED Followspot 75ST uses a regular DMX data connection for its 3- channel DMX personality. Download the LED Followspot 75ST user manual and refer to the Setup... - Page 7 LED Followspot 75ST QRG Before mounting this product, read the safety notes at the beginning of this Mounting guide and in the product’s user manual. Then, follow the mounting procedure indicated in the Setup chapter of the user manual. Product...
- Page 8 Outside the U.S., United Kingdom, or Ireland, contact your distributor of record. Follow their instructions to request support or to return a product. Visit our Web site for contact details. LED Followspot 75ST QRG – Rev. 3 © Copyright 2012 CHAUVET® All rights reserved Printed in the P.
