Chauvet Legend 230SR Beam User Manual

Hide thumbs Also See for Legend 230SR Beam:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Reference Manual
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Chauvet Legend 230SR Beam

Summary of Contents for Chauvet Legend 230SR Beam

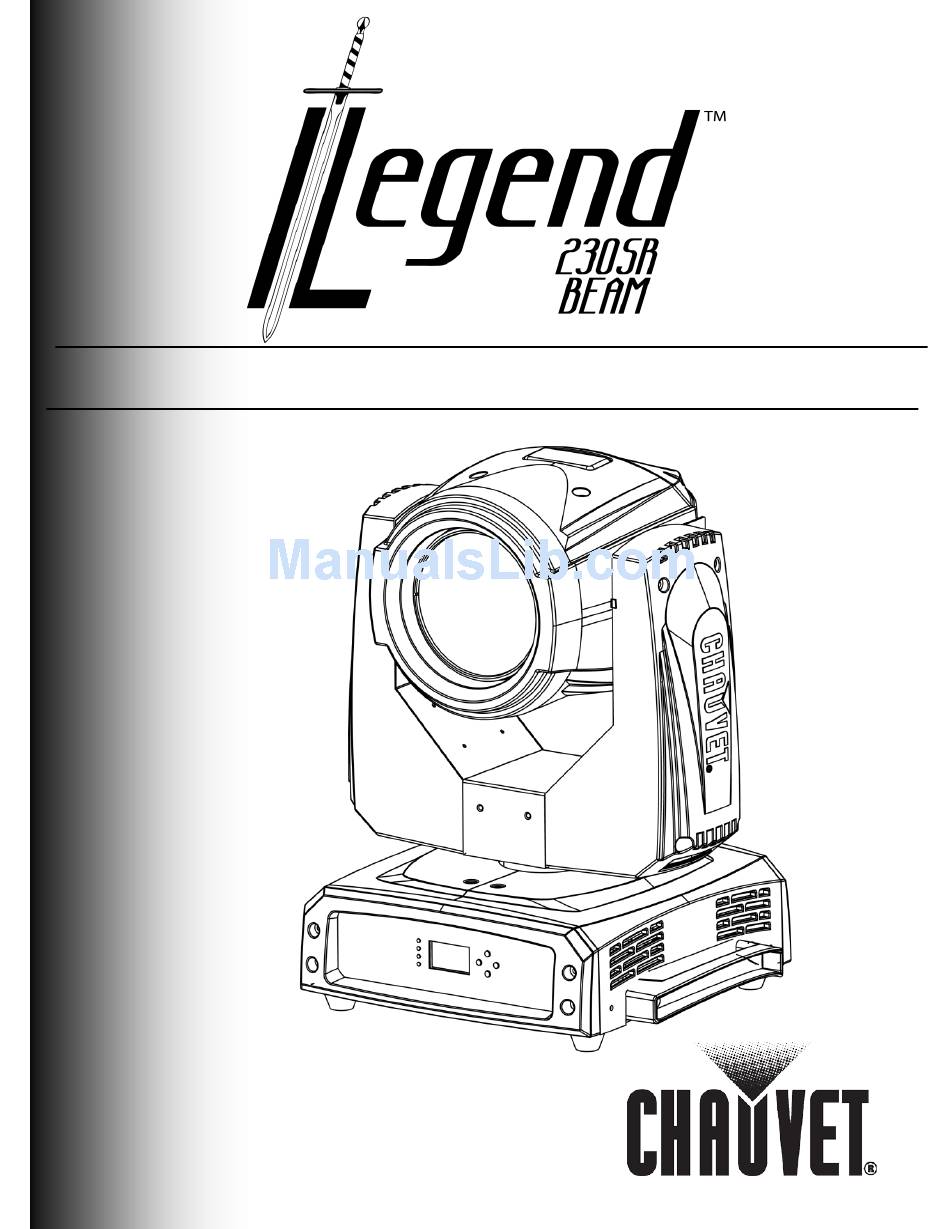

  • Page 1 User Manual...
  • Page 2 CHAUVET®. Any other product names, logos, brands, company names, and other trademarks featured or referred to within this document are the property of their respective trademark holders. CHAUVET® owns the content of this user manual in its entirety, including but not limited Copyright Notice to pictures, logos, trademarks, and resources.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. Before You Begin ............................1 What Is Included ................................1 Claims ......................................1 Manual Conventions ..................................1 Symbols ....................................... 1 Product at a Glance ................................. 2 Safety Notes ..................................2 Personal Safety .................................... 2 Mounting and Rigging ..................................
  • Page 4 Table of Contents Menu Map (cont.) ................................19 DMX Values................................... 20 DMX Values (cont.) ............................... 21 DMX Values (cont.) ............................... 22 DMX Values (cont.) ............................... 23 DMX Values (cont.) ............................... 24 5. Technical Information ..........................25 Product Maintenance ..............................25 Returns ..................................

  • Page 5: Before You Begin

    Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Manual Conventions Convention...

  • Page 6: Product At A Glance

    · The maximum ambient temperature is 104° F (40° C). Do not operate this product at a higher temperature. · In case of a serious operating problem, stop using this product immediately! In the unlikely event that your CHAUVET® product may require service, contact CHAUVET® Technical Support. Legend™ 230SR Beam User Manual Rev. 3...

  • Page 7: Introduction

    Introduction 2. Introduction Product The Legend™ 230SR Beam is a compact, electronic, moving yoke beam product equipped with a 230W-watt HID lamp. It includes a color wheel with 14 slots plus open. It also includes Description a rotating 8-facet prism, remote focus, and one gobo wheel with 17 static gobos plus open. Features ·...

  • Page 8: Product Overview

    Introduction Product Overview Front Glass Lens ¼-Turn Cover Fasteners For Easy Acess Power In Rubber Feet Control Panel Handles Mounting Base Legend™ 230SR Beam User Manual Rev. 3...

  • Page 9: Product Dimensions

    Introduction Product Dimensions Legend™ 230SR Beam User Manual Rev. 3...

  • Page 10: Setup

    Technical Specifications. The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the CHAUVET® website: www.chauvetpro.com. Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire.

  • Page 11: Gobo Wheel

    Setup Gobo Wheel The Legend™ 230SR Beam includes one gobo wheel with 17 fixed gobos. The diagram shows the gobo number on the wheel, as numbered in the DMX Values tables. Color Wheel The Legend™ 230SR Beam includes one color wheel with 14 fixed colors, as indicated below.

  • Page 12: Lamp Replacement

    Setup Lamp Replacement The Legend™ 230SR Beam is equipped with an Osram Sirius 230W lamp. Follow the procedure below to safely change the lamp. Disconnect the product from the AC power before opening. Do not turn product on without a lamp! Procedure 1.

  • Page 13: Procedure (Cont.)

    Setup Procedure (cont.) 4. Remove the 2 Phillips-head screws on the sides of the fan assembly. 5. Roll the fan assembly to the right to expose the lamp. 6. Using the lamp base, push the lamp down against the spring clips located on the bottom, then roll the lamp out the top.

  • Page 14: Lamp Adjustment

    Setup Lamp Adjustment The Legend™ 230SR Beam allows for lamp adjustment or “bench focusing”. Follow the procedure below to safely adjust the lamp. 1. Follow steps 1 and 2 of the Lamp Replacement Procedure. 2. Turn product on. 3. Orient the bottom of the moving head so that the fan is facing upward using DMX or as explained in Manual Fixture Test.

  • Page 15: Mounting

    Always mount this product in a safe position and make sure there is adequate room for ventilation, configuration, and maintenance. Rigging CHAUVET® recommends the following general guidelines when mounting this product. · When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance.

  • Page 16: Operation

    Operation 4. Operation Control Panel Button Function Description <MENU> Exits from the current menu or function <ENTER> Enables the currently displayed menu or sets the currently selected value in to the current function <UP> Navigates upward through the menu list and increases the numeric value when in a function <DOWN>...

  • Page 17: Product Settings

    Operation View DMX Values 1. Highlight View DMX Value. 2. Press <ENTER>. a. Scroll along the list to see the values of all the current attributes. b. Return to the previous menu. The list will show either 15 or 18 attributes, depending on the current DMX mode. From the Main Menu, highlight Fixture Settings and press <ENTER>.

  • Page 18: Display Settings

    Operation Remote Turn Off 1. Highlight Off Via DMX. 2. To enable/disable remote turn off, press <ENTER>. a. Select YES to enable product turn off from either a DMX controller or its power switch, or NO to turn the product off only from its power switch. b.

  • Page 19: Fixture Tests

    Operation From the Main Menu, highlight Display Settings and press <ENTER>. Fixture Tests Automatic Fixture Test 1. Highlight Auto Test. 2. To start the built-in test sequence, press <ENTER>. The automatic fixture test will end after 1 full cycle. You can stop the test by pressing <MENU>.

  • Page 20: Special Functions

    Operation Color Reset 1. Highlight Color and press <ENTER>. a. Select YES to reset the color wheel and the CMY filters to their home positions. b. Accept the selected option. Gobo Reset 1. Highlight Gobo and press <ENTER>. a. Select YES to reset the gobo wheel to its home position. b.
  • Page 21 Operation Shutter 1. Select Shutter and press <ENTER>. a. Select the new value (000~255). b. Accept the new value. Color 1. Select Color and press <ENTER>. a. Select the new value (-128~127). b. Accept the new value. Gobo 1. Select Gobo and press <ENTER>. a.

  • Page 22: Menu Map

    Operation Menu Map Main Level Programming Levels Description DMX Address 001~512 Selects a starting DMX address Mode 1 (15) Selects the 15-channel DMX mode DMX Functions DMX Channel Mode Mode 2 (18) Selects the 18-channel DMX mode View DMX Value Shows current DMX values for each channel Pan Inverse Defines the direction of the pan function...

  • Page 23: Menu Map (Cont.)

    Operation Menu Map (cont.) Main Level Programming Levels Description Auto Test Selects the product’s automatic test sequence Fixture Test Manual Test Selects the product’s manual test function Fixture Use Time Displays total hours of product’s use Displays the amount of time the lamp has been Exit Fixture Information Lamp On Time...

  • Page 24: Dmx Values

    Operation DMX Values Mode 1 Channel Function Value Percent/Setting 000 ó 255 0~100% 000 ó 255 Fine Pan 0~100% 000 ó 255 Tilt 0~100% 000 ó 255 Fine Tilt 0~100% 000 ó 255 Pan/Tilt Speed 0~100% 000 ó 255 Dimmer 0~100% 000 ó...

  • Page 25: Dmx Values (Cont.)

    Operation DMX Values (cont.) Mode 1 Channel Function Value Percent/Setting (cont.) 049 ó 051 Gobo 16 052 ó 055 Gobo 17 056 ó 059 Open shaking 060 ó 063 Gobo 1 shaking 064 ó 067 Gobo 2 shaking 068 ó 071 Gobo 3 shaking 072 ó...

  • Page 26: Dmx Values (Cont.)

    Operation DMX Values (cont.) Mode 1 Channel Function Value Percent/Setting (cont.) 210 ó 219 Enable all movement blackout modes 220 ó 229 Control Disable all movement blackout modes 230 ó 239 (cont.) Lamp off 240 ó 255 No Function Mode 2 Channel Function Value...

  • Page 27: Dmx Values (Cont.)

    Operation DMX Values (cont.) Mode 2 Channel Function Value Percent/Setting 031 ó 033 Gobo 10 034 ó 036 Gobo 11 037 ó 039 Gobo 12 040 ó 042 Gobo 13 043 ó 045 Gobo 14 046 ó 048 Gobo 15 049 ó...

  • Page 28: Dmx Values (Cont.)

    Operation DMX Values (cont.) Mode 2 Channel Function Value Percent/Setting (cont.) 088 ó 095 Macro 11 096 ó 103 Macro 12 104 ó 111 Macro 13 112 ó 119 Macro 14 120 ó 127 Macro 15 128 ó 135 Macro 16 136 ó...

  • Page 29: Technical Information

    Be prepared to provide the model number, serial number, and a brief description of the reason(s) for the return. The user must clearly label the package with an RMA number. CHAUVET® will refuse any product returned without an RMA number.

  • Page 30: Error Messages

    Technical Information Error Messages Message Cause(s) Action(s) · Check lamp Lamp Startup Fail The lamp has not started after being · Check lamp socket and wiring struck · Send product for repair · Check sensor wiring Temperature Sense Error No communication with temperature ·...

  • Page 31: Technical Specifications

    Technical Specifications 6. Technical Specifications Dimensions and Length Width Height Weight Weight 13.52 in (343.4 mm) 16.34 in (415 mm) 19.59 in (497.5 mm) 41.3 lbs (18.73 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Electrical Power Supply Type Range Voltage Selection Switching (internal)

  • Page 32: Contact Us

    Contact Us World Headquarters United Kingdom and Ireland CHAUVET® CHAUVET® Europe Ltd. General Information General Information Address: 5200 NW 108th Avenue Address: Unit 1C Sunrise, FL 33351 Brookhill Road Industrial Estate Voice: (954) 577-4455 Pinxton, Nottingham, UK Fax: (954) 929-5571...
