AT-320 H323 Phone User Manual (V1.39)
AT-320 H323 Phone User Manual
AT-320 H323 phone Appearance Introduction:.................................................................... 2
Function Keys of AT-320 H323 Phone Introduction ............................................................... 2
Features .................................................................................................................................. 3
Standard and Protocol ............................................................................................................ 3
Operating requirements .......................................................................................................... 4
Electric requirements .............................................................................................................. 4
Size.......................................................................................................................................... 4
Installation.............................................................................................................................. 5
Configuration.......................................................................................................................... 5
Phone Keypad set ................................................................................................................... 5
Configured by WEB ................................................................................................................ 9
Configured by PalmTool ....................................................................................................... 22
Telnet Configuration ............................................................................................................. 22
Upgrade AT-320 H323 phone............................................................................................. 38
Usage of the phone ............................................................................................................... 39

Advertisement

Table of Contents
loading

Related Manuals for ATCOM AT-320 H323

Summary of Contents for ATCOM AT-320 H323

  • Page 1: Table Of Contents

    AT-320 H323 Phone User Manual (V1.39) AT-320 H323 Phone User Manual AT-320 H323 phone Appearance Introduction:..............2 Function Keys of AT-320 H323 Phone Introduction ............... 2 Features ..........................3 Standard and Protocol ......................3 Operating requirements ......................4 Electric requirements ......................4 Size............................

  • Page 2: At-320 H323 Phone Appearance Introduction

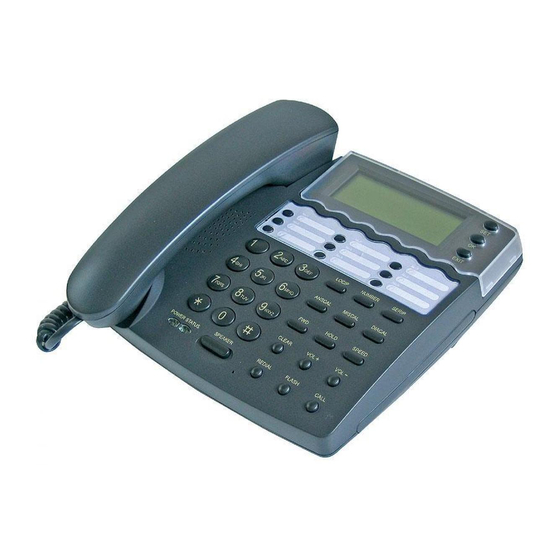

    AT-320 H323 Phone User Manual (V1.39) AT-320 H323 phone Appearance Introduction: ● AT-320 H323 Phone Front Illustration (Refer to Fig 1.1): Fig 1.1 AT-320 H323 Phone Front Illustration Function Keys of AT-320 H323 Phone Introduction: Keys Function With handset hung, press this key to get local IP address of the phone...

  • Page 3: Features

    80 entries each for missed calls, answered calls and dialed calls ● Adjustable volume for both handset and speaker ● Voice prompt ● Hotline ● Support adjustable user password and super password Standard and Protocol AT-320 H323 Phone supports following standard and protocol:...

  • Page 4: Operating Requirements

    AT-320 H323 Phone User Manual (V1.39) ● IEEE 802.3 /802.3 u 10 Base T / 100Base TX ● Major G.7XX; GSM610 audio codec ● H.323 V4 ● TCP/IP: Internet transfer and control protocol ● RTP: Real-time Transport Protocol ● RTCP Real-time Control Protocol ●...

  • Page 5: Installation

    Power on IP phone: p other end of the power cord adapter into the appropriate wall outlet. Configuration Four different ways can be used to configure AT-320 H323 phone: phone keypad, web browser, Telnet commands and PalmTool configuration tool on computer.

  • Page 6: Menu Structure

    AT-320 H323 Phone User Manual (V1.39) Refer to above operation; you can reach any menu to modify any value. Please refer to following structure illustrations to learn the values of each menu item. As for the meaning of each item and value, please refer to Web Browser Setting chapter.
  • Page 7 AT-320 H323 Phone User Manual (V1.39)
  • Page 8 AT-320 H323 Phone User Manual (V1.39)

  • Page 9: Configured By Web

    AT-320 H323 Phone User Manual (V1.39) Configured by WEB Double click icon to open the IE browser. Input the IP address of the phone into address bar ( ), and then input password of the phone into the following page. Default password 1234 is ordinary password and super password is 12345678.
  • Page 10 AT-320 H323 Phone User Manual (V1.39) Fig 3.2 Network Setting ● iptype: Set how IP phone gets relevant network parameters by selecting corresponding item from drop down list. static ip: Select this item to authorize users set IP address, subnet mask and router IP address of IP phone manually.
  • Page 11 AT-320 H323 Phone User Manual (V1.39) ● ppp pin: With pppoe or modem selected in iptype drop down list, please enter the password here. ● local ip: With static ip selected in iptype drop down list, please enter IP address of IP phone here.
  • Page 12 AT-320 H323 Phone User Manual (V1.39) ● use service: Enable/disable service by checking/clearing this box. To make calls through gatekeeper, please check this box; otherwise, phone can only make IP-to IP calls or calls through gateway. ● register ttl : IP phone will send a keep-alive registration message to H323 gatekeeper every “register ttl”...
  • Page 13 AT-320 H323 Phone User Manual (V1.39) Asiainfo: Use Asiainfo’s H.323 system Lucent: Use Lucent’s H.323 system IPN: Use IPN’s H.323 system Yiyang: Use Yiyang’s H.323 system Thinker: Use Thinker’s H.323 system Suntek: Use Suntek’s H.323 system ● service addr, service id: Please put the URI (domain name/IP address : service port) of the server into “service addr”.
  • Page 14 AT-320 H323 Phone User Manual (V1.39) ● nat addr: When “nat traversal” is set to “enable”, please put the domain name of the servers ( These web server helps to find out the public IP of the IP phone) into “nat addr”, such as www.whatismyip.com.
  • Page 15 AT-320 H323 Phone User Manual (V1.39) phone number: Use phone number as E.164 and H323 ID to login the GK. account: Use phone number as E.164 and designated H323 ID filled in account field as H323 ID to login GK.
  • Page 16 AT-320 H323 Phone User Manual (V1.39) disable: Do not use dial plan or dial number by selecting this item. enable: Use dial plan by selecting this item. dialnum: Use dial number by selecting this item. With this item selected, please enter the dial prefix into dial number field.
  • Page 17 AT-320 H323 Phone User Manual (V1.39) iddcode, iddprefix and dddprefix according to requirement of system. ● innerline: Enable/disable innerline call by selecting corresponding items from dropdown list. disable: Disable call innerline by selecting this item. enable: enable call innerline by selecting this item.
  • Page 18 AT-320 H323 Phone User Manual (V1.39) ● fwd noanswer: Forward calls without replying by checking this box. Please enter receiving forwarded calls phone number into fwd number field. ● fwd always: Forward all calls by checking this box. Please enter receiving forwarded calls phone number into fwd number field.
  • Page 19 AT-320 H323 Phone User Manual (V1.39) g729 g7231 g711u g711a and gsm. ● g.723.1 high rate: enable/disable g.723.1 high rate. G.723.1 high rate is 6.3kbps, low rate is 5.3kbps. ● audio frame: Set audio frames in RTP package. Minimum is 1 and maximum is ●...
  • Page 20 AT-320 H323 Phone User Manual (V1.39) selecting this item. remote debug: Save the debug information in SDRAM of IP phone by selecting this item. no check: Disable checking firmware tags when upgrading. This is not suggested, because it will increase the risk of upgrading the wrong firmware into the phone.
  • Page 21 AT-320 H323 Phone User Manual (V1.39) Fig 3.7 Setting Page using ordinary pin with Debug set as 0 [disable] ● Update: Click this button to save the configuration and the phone will reboot. Once the phone reboots successfully, the new configuration is effective.

  • Page 22: Configured By Palmtool

    AT-320 H323 Phone User Manual (V1.39) Fig 3.8 Phone Book Illustration Upgrade Program: Click this button to update the program of IP phone. Before updating, please fill IP address of FTP server into upgrade addr field, and then click this button. Then the phone will read the corresponding bin files from the server and then load into the phone.
  • Page 23 AT-320 H323 Phone User Manual (V1.39) Password : **** P:\> If you type super password, then you will see: Password : ******** P:\> Above information indicates that IP phone is under setting mode, and then you can set the AT-320 IP phone by using the telnet commands.
  • Page 24 AT-320 H323 Phone User Manual (V1.39) Detailed description: List help of all commands For example: P:\>? list settings store x store current to xth settings load x load xth settings to current exit write save settings Command Syntax description: No optional parameter of keywords...
  • Page 25 AT-320 H323 Phone User Manual (V1.39) registerport 6800 signalport 6800 controlport 6802 registerttl 60 rtptos 0 rtpport 6802 jitter size 0 calltype 1[advanced] localtype 0[phonenumber] dtmf 0[control string] dtmfpayload 101 dialplan 2[dialnum] dialnumber 17911 dddcode [empty] iddcode [empty] iddprefix [empty]...
  • Page 26 AT-320 H323 Phone User Manual (V1.39) Command Syntax description: set keywords value Usage: Used to configure password and other running parameters of AT-320 IP phone. Detailed description: set iptype X Set how IP phone gets relevant network parameters. X ranged from 0 through 3: 0: authorize users set IP address, subnet mask and router IP address of IP phone manually;...
  • Page 27 AT-320 H323 Phone User Manual (V1.39) use this command to set Modem ID. set ppppin XXX With iptype set as 2, use this command to set ADSL pin; with iptype set as 3, use this command to set Modem pin.
  • Page 28 AT-320 H323 Phone User Manual (V1.39) register; 1: register. set service type X Enable/disable the repaid and service system .choose the repaid server provider. Parameter x ranged from 0 through 29: 0: common: disable repaid card; 4: use Mediaring service; 2: use eTalk card;...
  • Page 29 AT-320 H323 Phone User Manual (V1.39) transferring the voice and signal by router; 3: use this value with Innopath private system used; 5: use this value with vida private system used; 6: aivgr use this value with aivgr private system used; 7: use this value with Eproxy private system used.
  • Page 30 AT-320 H323 Phone User Manual (V1.39) authentication type, set password. set registerport XXXX Set register port. XXXX is range from 1024 through 6553. set signalport XXXX This port is Q.931 port using TCP protocol. XXXX is range from 1024 through 65535.
  • Page 31 AT-320 H323 Phone User Manual (V1.39) This command used to set how IP phone log in gatekeeper. X is ranged from 0 through 6: 0: use phone number as E.164 and H323 ID to login the GK; 1: use phone number as E.164 and designated H323 ID by set account XXX command;...
  • Page 32 AT-320 H323 Phone User Manual (V1.39) code of Beijing is 10; the area code of Shanghai is 21, and the area code of Chengdu is 28, etc. Parameter xxx must be an Arabic numeral and no longer than 3 characters.
  • Page 33 AT-320 H323 Phone User Manual (V1.39) set nonlocalprefix X With innerline set as 1[enable] , please set the number switching to long-distance call, such as 9. set answer X Set the ring seconds before the phone answers the call auto or forward the calls.
  • Page 34 AT-320 H323 Phone User Manual (V1.39) Enable/disable forward calls if busy. X is ranged from 0 through 1. 0: do not forward calls if busy; 1: forward call if busy. set fwdnoanswer X Enable/disable forward calls without replying. X is ranged from 0 through 1.
  • Page 35 AT-320 H323 Phone User Manual (V1.39) Set initial volume of microphone of the base. X is ranged from 0 through 15. set handsetout X Set initial volume of handout. X is ranged from 0 through 31. set codec1 X Set the priority 1of the audio compression algorithm.
  • Page 36 AT-320 H323 Phone User Manual (V1.39) characters. set debug X Set open debugging message output grade for special tool. X is ranged from 0 through 5: 0: close debugging output; 1: output the operation information to the window; 2: output all the bug information and data in test window; 3: save the bug information into SDRAM;...
  • Page 37 AT-320 H323 Phone User Manual (V1.39) exit Command Syntax description: no keyword and parameter Usage: Exit from Telnet command window without saving the configuration. Relevant usage: None write Command Syntax description: No keyword and parameter Usage: Save the configuration and restart the AT-320 IP phone.

  • Page 38: Upgrade At-320 H323 Phone

    AT-320 H323 Phone User Manual (V1.39) the SDRAM of the phone. Then the file can be read by PalmTool. This operation aims at testing. X-1: Connect to FTP Server to get the file of updating program and update program Flash. This operation aims at updating program.

  • Page 39: Usage Of The Phone

    AT-320 H323 Phone User Manual (V1.39) operation will be fail. Usage of the phone Receiving calls: AT-320 IP phone can receive incoming calls from other AT-320 IP phone and devices that support the H.323 protocol. It works just like an ordinary phone for incoming calls.
  • Page 40 AT-320 H323 Phone User Manual (V1.39) Once the call connection has been established and the ring tone has sounded, wait for the other party to answer. When the other party answers, you can begin speaking. When the call is over, put back the handset. The dialed number has been saved into the buffer.
  • Page 41 AT-320 H323 Phone User Manual (V1.39) Gateway directly by lifting the handset or pressing and then inputting the IP address of the other party, and then pressing Note When you place a call without Gatekeeper or with Gateway, please log off Gatekeeper.
  • Page 42 AT-320 H323 Phone User Manual (V1.39) Appendix Table PA168S IP phone digital-character key map: Keys Press Once Press Twice Press Thrice Press quartic Press quintic space \ /& Case change Reserves the right to make changes in technical and product specification without...
  • Page 43 AT-320 H323 Phone User Manual (V1.39) AT-320 H323 Phone User Manual (V1.39) All rights reserved...
