ATCOM AT620P Setup Manual

With elastix server
Hide thumbs Also See for AT620P:

Advertisement

Quick Links

Download this manual See also: User Manual
Atcom AT620P with Elastix Server
Atcom AT620P with Elastix Server
Atcom AT620P with Elastix Server
http://www.elastix.org
http://www.elastix.org
http://www.elastix.org
Setup Guide
Setup Guide
Setup Guide

Advertisement

loading

Related Manuals for ATCOM AT620P

Summary of Contents for ATCOM AT620P

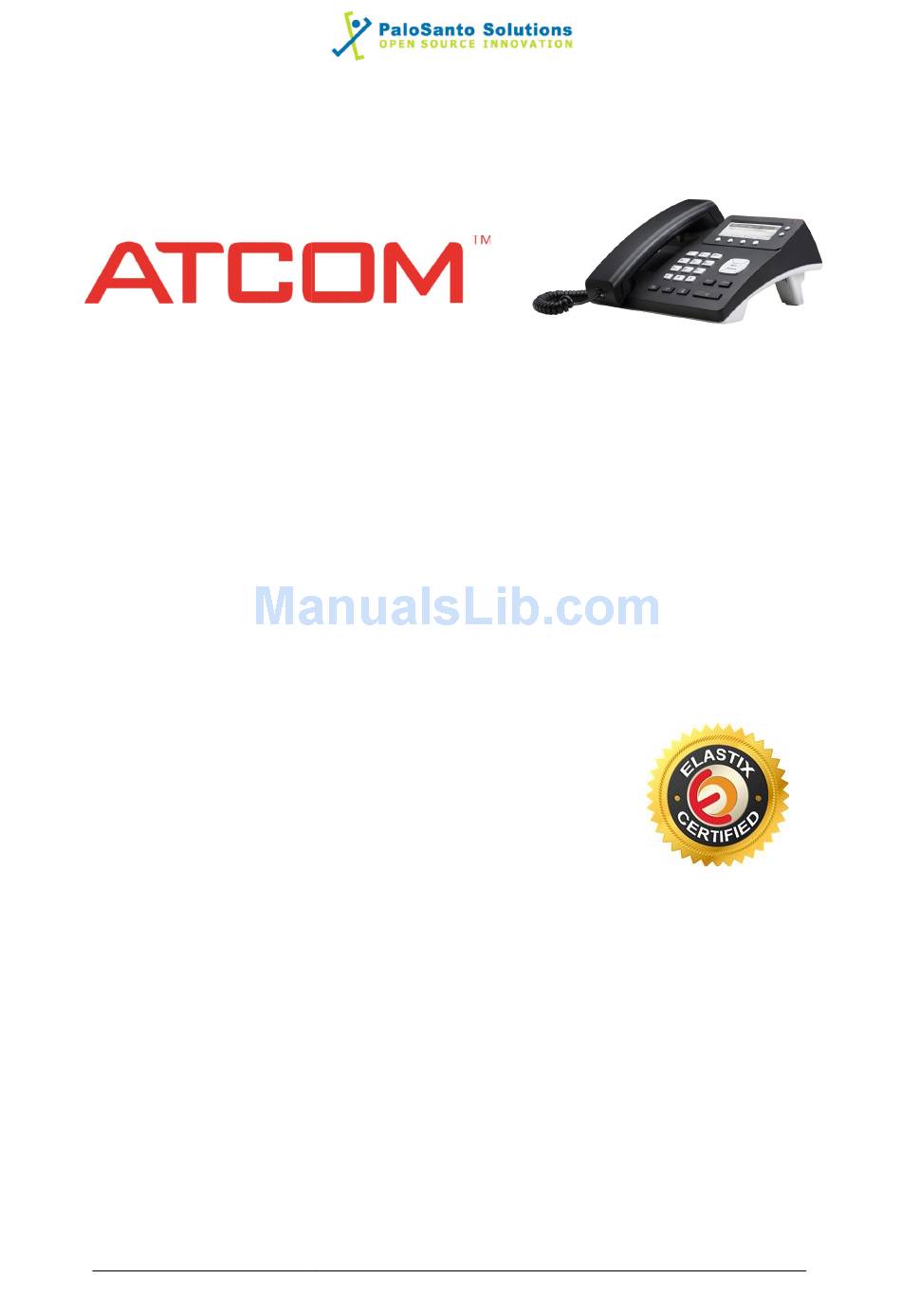

  • Page 1 Atcom AT620P with Elastix Server Atcom AT620P with Elastix Server Atcom AT620P with Elastix Server Setup Guide Setup Guide Setup Guide http://www.elastix.org http://www.elastix.org http://www.elastix.org...

  • Page 2: Setup Diagram

    Figure 1-1 Figure 1-1 is a setup diagram for a single IP Phone AT620P configuration. The phone is is a setup diagram for a single IP Phone AT620P configuration. The phone is is a setup diagram for a single IP Phone AT620P configuration. The phone is setup as a SIP telephony device.

  • Page 3: Setup Procedure

    4.0 Setup Procedure Atcom AT620P Server Setup Guide To set up the Elastix Server for the Atcom AT620P, 1. Go to the web address of the Elastix Server Login page. The web address is determined by the customer, for this guide we have used the IP address 192.168.1.65 2.
  • Page 4 PaloSanto Solutions PaloSanto Solutions PaloSanto Solutions Atcom AT620P Server Setup Guide Atcom AT620P Server Setup Guide Atcom AT620P Server Setup Guide Figure 4-3. Add an Extension Figure 4-3. Add an Extension Figure 4-3. Add an Extension 6. On the Add SIP Extension page (Figure 4-4), fill in the following information: 6.
  • Page 5 9. With this you have just finished creating a SIP extension that will be used by the Atcom AT620P to register with the Elastix Server. Repeat Steps 5 through 8 to similarly Atcom AT620P to register with the Elastix Server. Repeat Steps 5 through 8 to similarly Atcom AT620P to register with the Elastix Server.
  • Page 6 PaloSanto Solutions Atcom AT620P Server Setup Guide Figure 4-7. Atcom AT620P WebUI To register the Atcom Phone we have two methods: Manual Configuration and AutoProvisioning using Elastix’s Endpoint Configurator.

  • Page 7: Manual Configuration

    Atcom AT620P Server Setup Guide MANUAL CONFIGURATION 1. Use the information from the Add SIP Extension page (Figure 4-4) to enter the following necessary information on “VOIP => SIP 1” section of the Atcom Phone WebUI:  Server Address: Elastix Server’s IP Address (192.168.1.65 in this example) ...
  • Page 8 PaloSanto Solutions Atcom AT620P Server Setup Guide 4. To test the Atcom AT620P, pick up the previously configured IP (SIP) Phone and call the AT620P’s extension number (301 in this example). When the call is established, speak into the phone and verify that the other IP (SIP) Phone can hear your voice.
  • Page 9 PaloSanto Solutions Atcom AT620P Server Setup Guide AUTOPROVISIONING USING ELASTIX’S ENDPOINT CONFIGURATOR 1. In the Elastix WebUI go to “PBX => Endpoint Configurator” (Figure 4-10). Figure 4.10 Endpoint Configurator 2. Next to the “Discover Endpoints in this Network” button, type the address where the phone is located and click the button.
  • Page 10 User Extension. 5. Configure the other IP (SIP) Phone with the correct parameters. 6. To test the Atcom AT620P, pick up the previously configured IP (SIP) Phone and call the AT620P’s extension number (301 in this example). When the call is established, speak into the phone and verify that the other IP (SIP) Phone can hear your voice.
