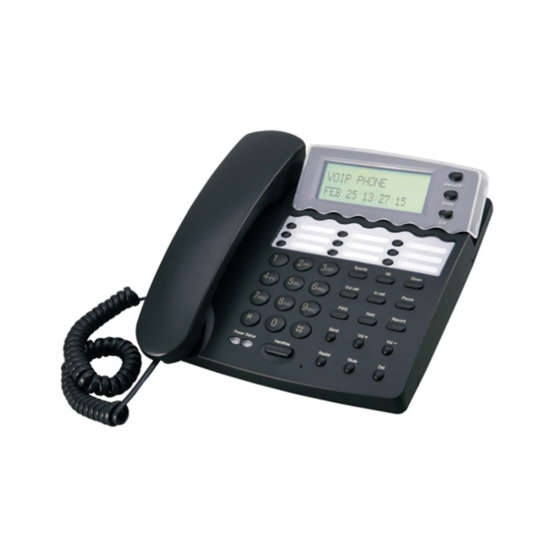

- Page 1 AT530 User Manual AT530 User Manual 1/47...
-
Page 2: Table Of Contents
Syslog Config: ..................25 2.8.3 2.8.4 Time Set:....................26 Reboot: ....................26 2.8.5 Use keypad configure AT530 IP phone ............... 27 Keypad function ......................27 Keypad Menu ........................28 Telnet Console ......................30 Introduce .......................... 30 Global Command......................31 Tree Structure ......................32 Network Diagnosis .................... - Page 3 AT530 User Manual POST Mode(safe mode) ..................40 FAQ..........................41 How many servers may AT530 register simultaneously? ......41 9.1.1 Why the settings vanish after reboot?............41 9.1.2 How to use the dial rule? ................. 41 9.1.3 How to use speed dial function? ..............42 9.1.4...
-
Page 4: At530 Features
AT530 User Manual 1 AT530 Features Appearance Interface Power: Output Power:12VDC,500mA. WAN: RJ45 port. LAN: RJ45 port. Electricity characteristic Speciality of electric: output the 12V 500mA DC The network connects:2 RJ45 connect, a WAN, a LAN Software Support two sip accounts at the same time. -
Page 5: Standard And Protocols
AT530 User Manual G.168 compliant 32ms echo cancellation Tone generation and Local DTMF re-generation according with ITU-T E.164 dial plan and customized dial rules Hotline. Speed Dial Call Forward, Call Transfer, 3-way conference calls Record Caller ID display DND(Do Not Disturb),Black List,Limit List Upgrade firmware through FTP, TFTP or HTTP,. -
Page 6: Package
2 Web Configuration Access Web setting page Enter AT530 IP address in the web browser and press ENTER to go to the log on page, and key in the username and password to access AT530 setting page. Default username and password is:... -
Page 7: Current State
Current state This page shows AT530’s running state. Network shows the WAN and LAN port connecting state and current settings. VoIP part show the working state of VoIP, you can see whether AT530 has registered the public sip server 7/47... -
Page 8: Network
----Set local DNS server in the Preferred DNS and the Alternate DNS Configure to dynamic obtain IP ----Enable DHCP; If there is DHCP server in your local network, AT530 will automatically obtain WAN port network information from your DHCP server. Configure PPPoE: ----Enable PPPoE ----PPPoE server: Enter “ANY”... -
Page 9: Lan Config
AT530 User Manual Notice: If user accesses the IP phone through WAN port. He/She should use the new IP address to access the IP phone when the WAN port address was changed. 2.3.2 LAN Config Bridge Mode: Enable this option to switch to bridge mode. IP phone won’t assign IP for its LAN port in bridge mode and its LAN and WAN port will be in the same network. -
Page 10: Voip Sip Config
Detect Interval Time: Co-work with the Auto Detect Server, if Auto Detect Server is enable, AT530 will periodically detect if the SIP server is available according this setting. User Agent: Encrypt Key: The particular service system decrypts of the key , matching with the server Type usage, the key provide by the particular service system supplier, default is empty Server Type：The particular service system supplier carries out the sign and speeches to... - Page 11 DTMF Mode: DTMF signal sending mode: support RFC2833, DTMF_RELAY (inband audio) and SIP info RFC Protocol Edition: Current AT530 SIP version. Set to RFC 2543 if the gate need to communicate to devices (such as CISCO5300) using the SIP 1.0. Default is RFC 3261. Enable Register: Enable/Disable SIP register.
-
Page 12: Advance
DHCP server lease time. Start IP: Start IP of lease table. End IP: End IP of lease table. Network device connecting to the AT530 LAN port can dynamic obtain the IP in the range between start IP and end IP. Netmask: Netmask of lease table. -
Page 13: Nat
AT530 User Manual 2.5.2 NAT Advance NAT setting. Maximum 10 items for TCP and UDP port mapping. IPSec ALG: Enable/Disable IPSec ALG; FTP ALG: Enable/Disable FTP ALG; PPTP ALG: Enable/Disable PPTP ALG; Transfer Type: Transfer type using port mapping. Inside IP: LAN device IP for port mapping. -
Page 14: Net Service
AT530 User Manual 2.5.3 Net Service HTTP Port: configure HTTP transfer port, default is 80.User may change this port to enhance system’s security. When this port changed, please http://xxx.xxx.xxx.xxx:xxxx/ to reconnect. Telnet Port: configure telnet transfer port, default is 23. -
Page 15: Firewall Settings
Access list support two type limits: input_access limit or output_access limit. Each type support 10 items maximum. AT530 firewall filter is base WAN port. So the source address or input destination address should be WAN port IP address. Configuration:... -
Page 16: Qos Settings
AT530 User Manual 2.5.5 QoS settings AT530 IP phone implement QoS based on 802.1p, The QoS is used to mark the network communication priority in the data link/MAC sub-layer. AT530 will sorted the packets using the QoS and sends it to the destination. -
Page 17: Advance Sip Settings
AT530 User Manual 2.5.6 Advance SIP settings This page is used to set the private sip server, stun server, and back up sip server information. STUN Server setting: STUN Server Addr: configure stun server address; STUN Server Port: configure stun server port default 3478 STUN Effect Time: stun detect NAT type circle, unit: minute. -
Page 18: Digital Map
AT530 support below digital map: Digital Map is based on some rules to judge when user end their dialing and send the number to the server. AT530 support following digital map: ----End With “#”: Use # as the end of dialing. -
Page 19: Call Service Settings
Enable Three Way Call: Please refer to Value_add_service for detail. Enable Call Waiting: Enable/disable Call Waiting Accept Any Call: If this option is disable, AT530 refuse the incoming call when the called number is different from AT530’s phone number. No Answer Time: no answer call forward time setting. -
Page 20: Mmi Filter
2.5.9 MMI Filter MMI filter is used to make access limit to AT530 IP phone. When MMI filter is enable. Only IP address within the start IP and end IP can access AT530 IP phone. 2.5.10 Audio Settings CODEC: select the prefer CODEC; support ulaw, alaw,G729 and G7231 5.3/6.3 Signal Standard: Signal standard for different area. -
Page 21: Vpn
AT530 User Manual 2.5.11 this page is VPN setting page , the IP phone support the VPN with UDP and L2TP protocol .The parameters is as below VPN IP： After VPN registered successfully, VPN server will give an IP aggress to the terminal . - Page 22 AT530 User Manual Please refer to How to use dial rule for detail. 22/47...
-
Page 23: Config Manage
Config file import:import the config file 2.7.3 Auto Provisioning: AT530 IP phone support FTP and TFTP auto update. The gateway will auto obtain the configure file from your update server if configured. To obtain the original configure file, you can use the FTP/TFTP back up as describe above. Configure file using module structure, user may remain the concerned modules and remove other modules. - Page 24 AT530 User Manual Current Version: the system will display the current version number 。 Server Address: FTP/TFTP server address Username: FTP server user name Password: FTP server password Config File Name: The name of configuration file Config Encrypt Key: The encrypt key of confirmation file Protocol Type: The protocol type that used for upgrading Update Interval Time: The interval time that the terminals search for new configuration file.
-
Page 25: System Manage
AT530 User Manual System Manage 2.8.1 Account Manage Set web access account or keypad password of AT530. 2.8.2 Phone Book: User may set contacts in this page, and the contacts will be saved in the memory. Then using the Pbook, Vol+,Vol-,Menu/OK and Exit keys to choose your friend in the contacts and then press # to call out. -
Page 26: Time Set
AT530 User Manual 2.8.4 Time Set: Server:type the ip address of time server Timezone:select correct time zone in list box Timeout: longest response time for SNTP Manual Timeset:The time setting Daylight:Daylight saving time 2.8.5 Reboot: Reboot IP phone, some setting needs to reboot to make it works. Please always save config before reboot, otherwise the setting will return to previous setting. -
Page 27: Use Keypad Configure At530 Ip Phone
AT530 User Manual 3 Use keypad configure AT530 IP phone Keypad function User can configure AT530 through its keypad. List below is the keypad function Keypad Mode Function/Display Idle mode ---- show current time Sysinfo Idle mode circularly show phone number,wan ip, gateway info... -
Page 28: Keypad Menu
AT530 User Manual Keypad Menu User may use SET, Menu/ok, Exit, Vol+, Vol- to config AT530 detail setting. Press Menu/ok to enter config mode, and the default password is 123. Below list the keypad menu of AT530 AT530 Keypad Menu... - Page 29 AT530 User Manual Call-Transfer Call-Waiting Call-Forward Condition Transfer Num Transfer IP Port Dial-Rule End With # Fixed Length Switch Length Reg Status Public Reg Private Reg Detect-server Dtmf-mode Interval-time Swap-server RFC-version Signal-Port Stun Switch Addr Port Expire Time Codec Handdown-time...
-
Page 30: Telnet Console
User may use telnet command to access and manage IP phone. AT530 adopts tree structure for telnet. Every node contains its sub-nodes or local command. User can type “help” or “?” whenever to see sub-nodes and all local command under current node. -
Page 31: Global Command
AT530 User Manual Global Command Global command is available under all nodes, AT530 support following commands: Command Function Example chinese Set to Chinese UI #chinese clear Clear telnet screen #clear english Set to English UI #english exit Return to parent-node... -
Page 32: Tree Structure
AT530 User Manual 5 Tree Structure 5.1.1 account path: <account># [stop]start Syslog ---syslog [no] start Configure Syslog server address and port ---syslog server –ip x.x.x.x _port xxx Example: #<config-account-syslog>#server –ip 202.112.20.10 Show syslog settings ---syslog show Show all account settings ---show 5.1.2 config... - Page 33 AT530 User Manual Show current DHCP rules ---dhcpshow Show LAN port IP address ---ipshow Show NAT info ---natshow Change LAN port IP address ---ip –addr x.x.x.x –mask x.x.x.x Example:<config-interface-fastethernet-lan>#ip –addr 192.168.1.10 –mask 255.255.255.0 WAN interface settings path: <config-interface-fastethernet-wan># [disable]enable dhcp client...
- Page 34 AT530 User Manual Show route info ---route Show netservice info ---show Dial-peer settings path: <config-pbook># [disable]enable calling through GK and proxy ---[no]enableGKandProxy Add number-IP bond entry ---entry –number xxx –ip x.x.x.x –protocol xxx Example:<config-pbook>#entry –number 100 –ip 202.112.20.100 –protocol sip Add number-IP bond and add prefix to the dial number ---entry –number xxx –ip x.x.x.x –protocol xxx _add xxx...
- Page 35 AT530 User Manual PPPoE settings path: <config-pppoe># PPPoE account settings ---auth –user xxx -password xxx Example:<config-pppoe>#auth –user aaa –password 123456 [disable]enable service settings ---[no]service xxx Show pppoe settings ---show QOS settings path: <config-qos># [delete]add QoS table entry --- [no]entry –addr x.x.x.x –mask x.x.x.x Example:<config-qos>#entry –addr 202.112.10.1 –mask 255.255.255.0...
- Page 36 5.1.4 download configure to flash usage: #download tftp –ip x.x.x.x –file xxx #download ftp –user xxx –password xxx –ip x.x.x.x –file xxx Example: #download ftp –user abc –password 123 –ip 202.112.20.15 –file AT530.cfg 5.1.5 password usage: #password Enter new password:xxx Confirm new password:xxx 5.1.6 reload...
- Page 37 AT530 User Manual Example:#<show>#interface fastethernet lan show WAN info Example:#<show>#interface fastethernet wan path: <show># show arp table info Example:#<show>#ip arp Show DNS server info Example:#<show>#ip dns Show netstate info Example:#<show>#ip netstat Show route info Example:#<show>#ip route Show icmp packets Stat.
-
Page 38: Network Diagnosis
# update ftp –user xxx –password xxx –ip x.x.x.x –file xxx # update tftp –ip x.x.x.x –file xxx Example:# update ftp –user abc –password 123 –ip 202.112.20.15 –file AT530.dlf 5.1.12 upload configure file usage: # upload ftp –user xxx –password xxx –ip x.x.x.x –file xxx # upload tftp –ip x.x.x.x –file xxx... -
Page 39: Restore To Factory Default
AT530 User Manual Command Function Example ping Check if the destination is accessible #ping www.google.com tracert Show network path info #tracert www.google.com show basic Show network settings #show basic show ip route Show route table #show ip route show ip arp... -
Page 40: Post Mode(Safe Mode)
How to enter safe mode? There will be a schedule bar in the AT530 booting procedure, press # key within the first 5 seconds, then the phone will go to POST mode. It has a default ip 192.168.10.1 in POST mode. -
Page 41: Faq
9.1.1 How many servers may AT530 register simultaneously? AT530 is able to register two SIP servers simultaneously, and redundancy servers. User can configure the dial peer to route calls between these servers. Please refer “How to use the dial rule?” for detail. -
Page 42: How To Use Speed Dial Function
9.1.4 How to use speed dial function? There are 9 speed dial keys in the AT530 panel, Usage: Set speed dial number: press the speed key and enter the speed dial number and then press Menu/OK key to save the setting. -
Page 43: How To Use The Record Function
Unattended transfer: If A is the AT530 user, and B calls and talking with A through VoIP. A can press FWD button to hold the call with B, and then enter C’s number. B will be transferred to C and can talk with C. -
Page 44: How To Use Set The Ip Type Via Keypad
AT530 User Manual Notice: AT530 supports three message maximum, each message can be 90 seconds. Answering will be deactivated if the message numbers is 3. Record local message: User may use local message to leave message to other local users. - Page 45 AT530 User Manual 2. if “Data/Voice VLAN differentiated” is Tag differentiated but the DiffServ is disable. Device won’t distinguish the voice, signaling and data stream. It will add the same data vlan id to them. As below: 45/47...
- Page 46 AT530 User Manual 3. if “Data/Voice VLAN differentiated” is Tag differentiated and diffServ are both enable. Then device will distinguish the voice, signaling and data stream to VLAN ID setting. As below: 4.if “Data/Voice VLAN differentiated” is Date untaged and diffServ are both enable.
- Page 47 Diffserv is enable, the DiffServ value response to the voice/signaling stream. 6. When VLAN function is enable. If “VLAN ID check” is enable, AT530 will have strict requirement on the VLAN, it won’t handle any packets with different VLAN ID. If “VLAN ID check”...
