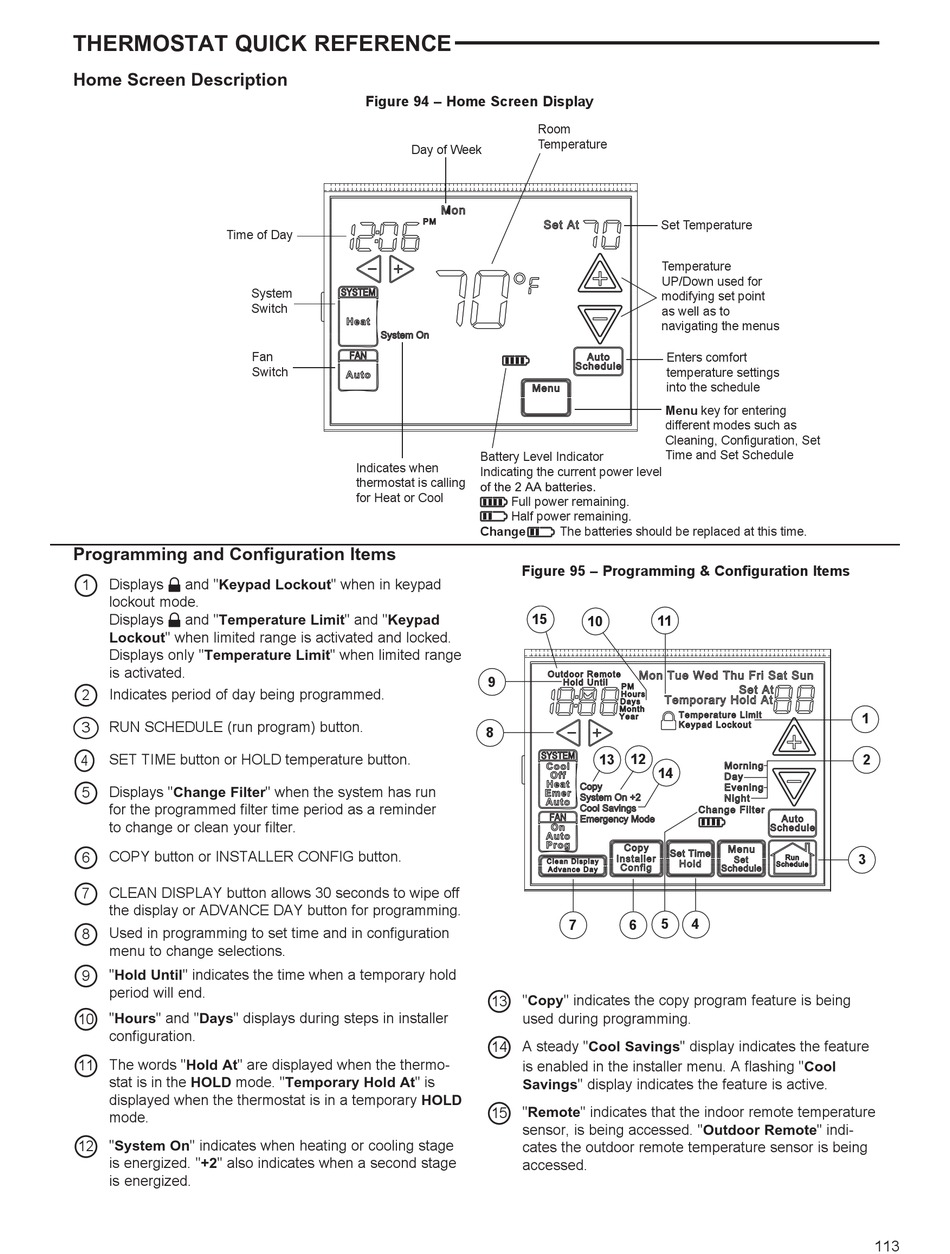

THERMOSTAT QUICK REFERENCE
Home Screen Description
Time of Day
System
Switch
Fan
Switch
Programming and Configuration Items
Displays and "Keypad Lockout" when in keypad
1
lockout mode.
Displays and "Temperature Limit" and "Keypad
Lockout" when limited range is activated and locked.
Displays only "Temperature Limit" when limited range
is activated.
2 Indicates period of day being programmed.
RUN SCHEDULE (run program) button.
3
SET TIME button or HOLD temperature button.
4
Displays "Change Filter" when the system has run
5
for the programmed filter time period as a reminder
to change or clean your filter.
COPY button or INSTALLER CONFIG button.
6
CLEAN DISPLAY button allows 30 seconds to wipe off
7
the display or ADVANCE DAY button for programming.
Used in programming to set time and in configuration
8
menu to change selections.
"Hold Until" indicates the time when a temporary hold
9
period will end.
"Hours" and "Days" displays during steps in installer
10
configuration.
The words "Hold At" are displayed when the thermo-
11
stat is in the HOLD mode. "Temporary Hold At" is
displayed when the thermostat is in a temporary HOLD
mode.
"System On" indicates when heating or cooling stage
12
is energized. "+2" also indicates when a second stage
is energized.
Figure 94 – Home Screen Display
Figure 52 – Home Screen Display
Day of Week
Battery Level Indicator
Indicates when
Indicating the current power level
thermostat is calling
for Heat or Cool
Full power remaining.
Half power remaining.
Change
Figure 95 – Programming & Configuration Items
Figure 53 – Programming & Configuration Items
15
9
8
"Copy" indicates the copy program feature is being
13
used during programming.
A steady "Cool Savings" display indicates the feature
14
is enabled in the installer menu. A flashing "Cool
Savings" display indicates the feature is active.
"Remote" indicates that the indoor remote temperature
15
sensor, is being accessed. "Outdoor Remote" indi-
cates the outdoor remote temperature sensor is being
accessed.
Room
Temperature
Set Temperature
Temperature
UP/Down used for
modifying set point
as well as to
navigating the menus
Enters comfort
temperature settings
into the schedule
Menu key for entering
different modes such as
Cleaning, Configuration, Set
Time and Set Schedule
The batteries should be replaced at this time.
11
10
13 12
14
7 6 5 4
1
2
3
3
