Oki ES3640e Color Manual

Hide thumbs Also See for ES3640e:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, Configuration Manual
ES3640e MFP
Fiery Colour Guide

Advertisement

Table of Contents
loading

Related Manuals for Oki ES3640e

Summary of Contents for Oki ES3640e

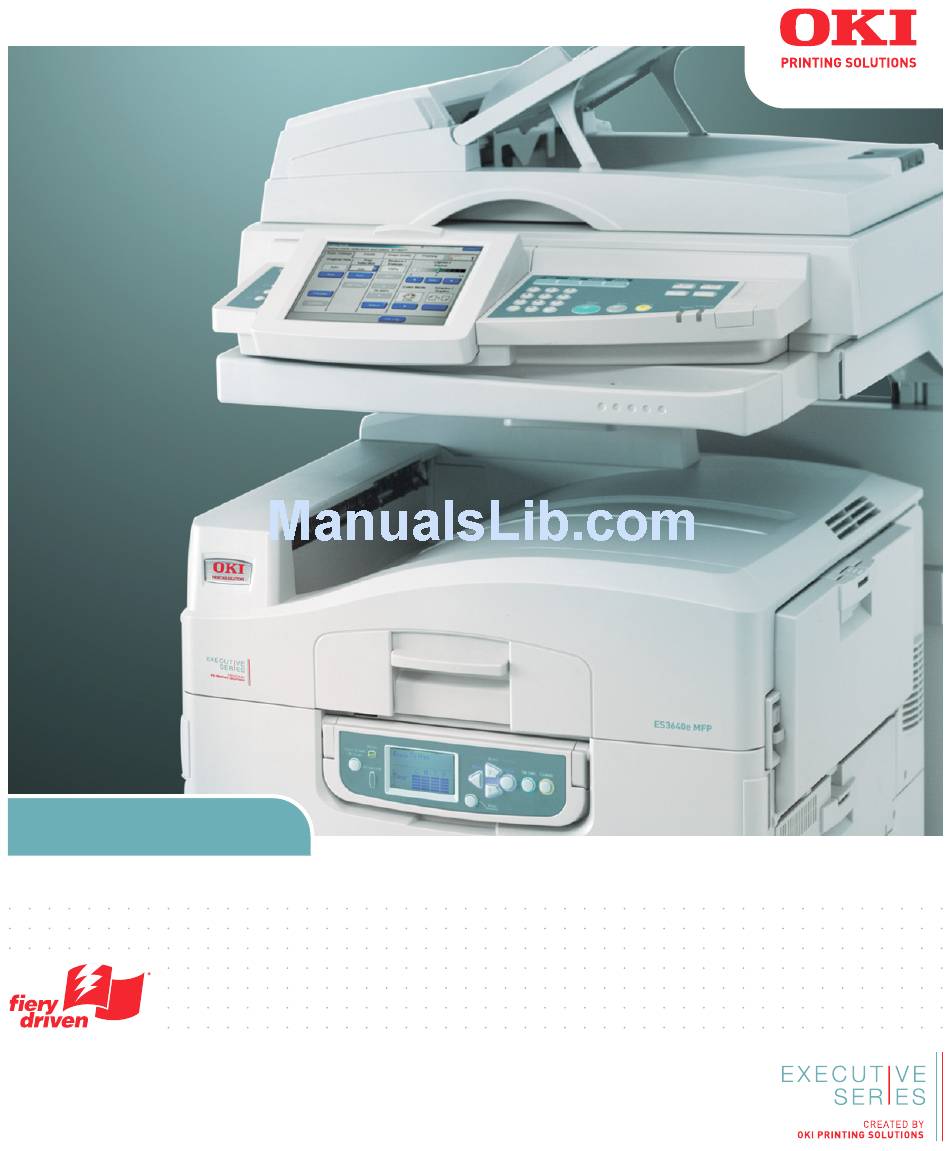

  • Page 1 ES3640e MFP Fiery Colour Guide...
  • Page 2 This manual is part of a set of Fiery Network Controller for ES3640e MFP, herein About the referred to as the “Fiery,” documentation that includes the following manuals for users Documentation and system administrators. Most are available as Acrobat PDF (Portable Document Format) files on the User Documentation CD.

  • Page 3: Table Of Contents

    Contents About the Documentation Introduction About this manual Key features of ColorWise Chapter 1: Fiery Colour Management Managing colour on the ES3640e MFP Rendering Style Pure Black Text/Graphics Black Overprint Spot Colour Matching RGB Source Profile CMYK Simulation Profile 1-10...
  • Page 4 iv Contents Using Calibrator Starting Calibrator Expert Mode Restoring default calibration measurements 2-10 Using the EFI Spectrometer ES-1000 2-11 Setting up the ES-1000 2-11 Calibrating the Fiery with the ES-1000 2-12 Using the EFI Densitometer ED-100 2-14 Setting up the ED-100 2-14 Calibrating the Fiery with the ED-100 2-15...
  • Page 5 v Contents Uploading custom colour groups 3-22 Editing colour values 3-23 Using a measurement instrument to target colours 3-27 Saving changes and exiting Spot-On 3-28 Colour Setup 3-29 Setting default ColorWise options 3-29 Appendix A: Colour Measurement Instruments Using the X-Rite DTP41 spectrophotometer Setting up the DTP41 Calibrating the DTP41 Using the X-Rite DTP32 densitometer...
  • Page 7 Electronics for Imaging, Inc. or OKI Printing Solutions. This publication is provided in conjunction with an OKI Printing Solutions product (the “Product”) which contains EFI software (the “Software”). The Software is furnished under license and may only be used or copied in accordance with the terms of the Software license set forth below.
  • Page 8 FCC Information WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Class B Declaration of Conformity This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 9 Proprietary Rights You acknowledge and agree that all rights, title and interest, including all intellectual property rights, in and relating to the Software, Documentation and all modifications and derivative works thereof are solely owned by and shall remain with EFI and its suppliers. Except for the express limited license granted above to use the Software, no right or license of any kind is granted.
  • Page 10 U.S. Government Restricted Rights: Use, duplication, or disclosure of the Software by the United States Government is subject to restrictions as set forth in FAR 12.212 or DFARS 227.7202-3 - 227.7202-4 and, to the extent required under U.S. federal law, the minimum restricted rights as set out in FAR 52.227-14, Restricted Rights Notice (June 1987) Alternate III(g)(3)(June 1987) or FAR 52.227-19 (June 1987).

  • Page 11: About This Manual

    The term “Fiery” is used in this manual to refer to the Fiery Network Controller for ES3640e MFP. The name “Aero” is used in illustrations to represent the Fiery. The term “Windows” is used to refer to Windows 98, Windows Me, Windows NT 4.0, Windows 2000, Windows XP, and Windows Server 2003, wherever appropriate.

  • Page 12: Key Features Of Colorwise

    ES3640e MFP. For consistent colour, calibrate the ES3640e MFP on a regular basis. ColorWise Pro Tools include an easy-to-use calibrator, which allows you to calibrate using either the...
  • Page 13 Downloading ICC profiles to the ES3640e MFP enables it to simulate a custom press (or another printer), as well as accurately print colours from a particular monitor or a scanner. In addition, you can create customized ICC profiles for the ES3640e MFP.

  • Page 15: Chapter 1: Fiery Colour Management

    PANTONE colours. To complicate matters, a single page may contain a mix of RGB, CMYK, and spot colours. The ES3640e MFP allows users to control the printing of these mixed-colour documents with features that apply specifically to RGB, CMYK, or spot colour data.
  • Page 16 The following diagram illustrates the print options in the ES3640e MFP colour management process that affect colour data conversions. You can access these print options when you send a print job to the ES3640e MFP. Most of these options and settings are described in subsequent sections of this chapter.
  • Page 17 You can specify settings for the following options by selecting print options when you send a job to the ES3640e MFP. Some can also be set as defaults by the administrator during Setup or using ColorWise Pro Tools. Settings specified using print options override the defaults.
  • Page 18 1-6). (Default set at Setup or with ColorWise Pro Tools) Rendering Style Applies a ES3640e MFP colour rendering dictionary (CRD) to RGB data (see Photographic/Presentation/Relative page 1-5), or to any incoming data with a PostScript source colour space Colorimetric/Absolute Colorimetric definition, including CMYK.

  • Page 19: Rendering Style

    The Rendering Style option specifies a CRD for colour conversions. To control the appearance of images, such as prints from office applications or RGB photographs from Photoshop, select the appropriate Rendering Style. The ES3640e MFP allows you to select from the four rendering styles currently found in industry standard ICC profiles.

  • Page 20: Pure Black Text/Graphics

    RGB = 0, 0, 0 to four-colour CMYK black before sending the job to the ES3640e MFP. These elements are not affected by the Pure Black Text/Graphics option. For details, see the application notes. Also, black text and line art defined as...

  • Page 21: Black Overprint

    —Black text or text/graphics knocks out coloured backgrounds. PostScript applications may perform their own black overprint conversions before sending the print job to the ES3640e MFP. One example of how you might use this setting is with a page that contains black text on a light blue background.

  • Page 22: Spot Colour Matching

    • —The Fiery uses a built-in table to generate the closest CMYK matches of spot colours your ES3640e MFP can produce. (New tables are generated when you add new output profiles.) With Spot-On, the Fiery uses the CMYK matches determined...

  • Page 23: Rgb Source Profile

    None setting. When you specify a setting other than None for the RGB Source Profile—since the colour space definitions are overridden—the output from the ES3640e MFP is consistent across platforms. The Fiery RGB Source Profile options are: •...

  • Page 24: Cmyk Simulation Profile

    Full simulations created using ColorWise Pro Tools. On Mac OS computers, you can view up to 10 Full custom simulations. The number of custom simulations is limited by the disk space on the ES3640e MFP. If you are printing with the PostScript driver from a Windows computer and have Two-Way Communication enabled, the name of each downloaded or custom profile is represented in the CMYK Simulation Profile setting menu.

  • Page 25: Cmyk Simulation Method

    1-11 Managing colour on the ES3640e MFP To properly simulate a printed image that was separated through the use of an ICC profile, the same profile must be present on the ES3640e MFP. For more information about downloading ICC profiles to the ES3640e MFP, see “Downloading...

  • Page 26: Rgb Separation

    The RGB Separation option determines how RGB colours (as well as Lab and XYZ colours) are converted to CMYK. The name of this option is meant to be descriptive, since the option defines the colour spaces that will be used by the ES3640e MFP to “separate” the RGB data into CMYK values.

  • Page 27: Output Profile

    1-13 Managing colour on the ES3640e MFP Output profile An output profile consists of a profile for your printer, describing its colour characteristics. In certain cases, you may want to customize the default output profile using the ColorWise Pro Tools Color Editor to achieve particular colour effects (see page 3-9).

  • Page 28: Postscript Printer Driver For Windows And Mac Os

    Printer Driver for Windows. This driver is a PostScript 3 printer driver that takes full advantage of the colour features of the ES3640e MFP. Before you proceed, complete the following procedures: • Install the Adobe PostScript Printer Driver and the ES3640e MFP PPD (see the User Software Installation Guide Chapter 1).
  • Page 29 ColorWise options The Expert Color Settings flowchart appears. This window displays additional colour settings for the ES3640e MFP. Each option includes a menu from which you select settings for your specific job. 4. Click Update to display the current ES3640e MFP settings.

  • Page 30: Adobe Postscript Printer Driver For Mac Os

    • Install the AdobePS printer driver and the ES3640e MFP PPD. • Select the ES3640e MFP in the Chooser and set it up with the ES3640e MFP PPD. • Install the ICC output profile for the ES3640e MFP on your Mac OS computer (see User Software Installation Guide Chapter 2).
  • Page 31 —Provides for colour conversion on the host computer. This ColorSync Color Matching option can be used with PostScript devices such as the ES3640e MFP, but it is intended for use with PostScript Level 1 devices. If you use this option, you must specify the Fiery ICC profile as the Printer Profile.
  • Page 32 1-18 Fiery Colour Management 2. Choose Color/Grayscale from the Print Color menu. Choose Color/Grayscale 3. In the ColorWise menu, choose settings for the print options described on page 1-3. If these settings are used regularly, click Save Settings to save them for subsequent jobs.
  • Page 33 1-19 PostScript printer driver for Windows and Mac OS OS–X) O SET IERY COLOUR MANAGEMENT OPTIONS 1. In the Print dialog box, choose Printer Features from the menu. Choose Printer Features 2. In the ColorWise 1, ColorWise 2, and ColorWise 3 feature set menus, choose settings for the print options described on page 1-3.

  • Page 35: Chapter 2: Colour Calibration

    USB port. For more information, contact your service technician/representative. For information on setting up and operating the DTP41 and DTP32, see Appendix Another way to obtain measurements is by using the ES3640e MFP’s built-in scanner ™ ™ as part of AutoCal...

  • Page 36: An Overview Of Calibration

    2-2 Colour Calibration An overview of calibration Calibration generates curves that adjust for the difference between the actual toner densities (measurements) and the response expected by the output profile. • Measurements represent the actual colour behavior of the printer. • Calibration sets are sets of measurements. •...

  • Page 37: Understanding Calibration

    Although most users’ needs are met by the default calibration set, the Fiery allows you to choose a calibration set to customize calibration for specialized jobs. Calibration allows you to: • Maximize the colour reproduction capabilities of the ES3640e MFP. • Ensure consistent colour quality over time. • Produce consistent output across Fiery servers.

  • Page 38: Scheduling Calibration

    Because printed output from the printer is very sensitive to changes in temperature and humidity, the ES3640e MFP should not be installed near a window or in direct sunlight, or near a heater or air conditioner. Paper is sensitive to climate changes as well.

  • Page 39: Checking Calibration Status

    2-5 Understanding calibration To monitor print quality, print the following colour reference pages: • Colour Charts from the Control Panel (see the Configuration Guide Chapter 4) • Colour Charts from Command WorkStation/Command WorkStation LE (see “Printing Fiery Information Pages” in the Job Management Guide Chapter 2) •...

  • Page 40: Using Calibrator

    2-6 Colour Calibration Using Calibrator ColorWise Pro Tools Calibrator allows you to calibrate the Fiery using the measurement method of your choice. Changing the calibration has the potential to affect all jobs for all users, so consider limiting the number of people authorized to perform calibration. Set an Administrator password to control access to calibration (see “Setting Passwords”...
  • Page 41 2-7 Using Calibrator 2. Click Calibrator. The Calibration window appears in Standard mode. 3. Use the Calibrator window to perform the calibration method of your choice. Procedures for each calibration method are described in subsequent sections of this chapter.

  • Page 42: Expert Mode

    2-8 Colour Calibration Expert Mode Calibrator provides two modes: Standard Mode and Expert Mode. You can perform all essential calibration tasks while in Standard Mode. Expert Mode offers two additional options: Print Pages and View Measurements. XPERT • Move the sliding button at the top of the Calibration window from Standard to Expert. The Expert Mode window appears.
  • Page 43 2-9 Using Calibrator With the View Measurements option, you can view the current set of measurements as a table or graph that shows both the measurements and the target curves. When more than one profile uses the same target, an additional menu called Plot Against appears in the upper-right corner of the dialog box.

  • Page 44: Restoring Default Calibration Measurements

    2-10 Colour Calibration Restoring default calibration measurements The ES3640e MFP is shipped with default calibration measurements. You can use these measurements to achieve acceptable colour without calibration. If the measurement device you use does not produce acceptable colour, you can easily return to the default measurements.

  • Page 45: Using The Efi Spectrometer Es-1000

    2-11 Using the EFI Spectrometer ES-1000 Using the EFI Spectrometer ES-1000 The EFI Spectrometer ES-1000 is a hand-held spectrophotometer that measures the spectral light reflected from printed output and other coloured materials, as well as the density of printed ink and toner. It uses the density measurements to effectively calibrate the Fiery.

  • Page 46: Calibrating The Fiery With The Es-1000

    2-12 Colour Calibration Calibrating the Fiery with the ES-1000 You can use ColorWise Pro Tools in conjunction with the ES-1000 to calibrate the Fiery. ES-1000 O CALIBRATE THE IERY USING THE 1. Start Calibrator. For instructions on starting Calibrator, see page 2-6.
  • Page 47 2-13 Using the EFI Spectrometer ES-1000 7. In the Get Measurements pane, click Measure. The Measurement Options dialog box appears. Page Type is automatically set to the type that you selected in step 8. Check the settings, and click Measure. The Information dialog box appears.

  • Page 48: Using The Efi Densitometer

    2-14 Colour Calibration 12. After you hear a beep, slide the ES-1000 at a slow but consistent pace across the strip. 13. Release the button when all the patches in the strip have been measured, and you have reached the white space at the end of the strip. When a strip is measured successfully, the cross hair moves to the next colour.

  • Page 49: Calibrating The Fiery With The

    2-15 Using the EFI Densitometer ED-100 Calibrating the Fiery with the ED-100 You can use ColorWise Pro Tools in conjunction with the ED-100 to calibrate the Fiery. ED-100 O CALIBRATE THE IERY USING THE 1. Start Calibrator. For instructions on starting Calibrator, see page 2-6.
  • Page 50 2-16 Colour Calibration 7. Click Measure in the Get Measurements pane. The Measurement Options dialog box appears. 8. Choose the appropriate options, and then click Start. Page Type is automatically set to the measurement page type that you printed in step Use the arrow buttons next to the Clicks Per Patch field to choose the number of...
  • Page 51 2-17 Using the EFI Densitometer ED-100 9. Place the ED-100 over the specified patch on the Measurement Page, making sure to center the sample aperture over the patch. Press Measure to take the measurement. For a more accurate measurement, place several plain sheets of paper beneath the Measurement Page to block underlying colours from being read by the instrument.

  • Page 52: Calibrating The Fiery With The Dtp41

    Using the ColorWise Pro Tools Calibrator application and the DTP41 spectrophotometer, you can quickly measure colour patches printed by the ES3640e MFP and automatically download these measurements to the Fiery. Before using ColorWise Pro Tools and the DTP41 to calibrate the Fiery, follow...
  • Page 53 2-19 Calibrating the Fiery with the DTP41 6. Retrieve the measurement page from the printer. 7. In the Get Measurements pane, click Measure. The Measurement Options dialog box displays the specified Page Type and Paper Size options. 8. Click Measure. 9.
  • Page 54 2-20 Colour Calibration 12. Repeat the measurement process for the magenta, yellow, and black strips. A check mark appears on the circle of the colour just read, and the Status field indicates the colour was measured successfully. Click Previous and Next to reverse or advance to another step in the measurement...

  • Page 55: Calibrating The Fiery With The Dtp32

    2-21 Calibrating the Fiery with the DTP32 Calibrating the Fiery with the DTP32 Using the DTP32, you can quickly measure colour patches and download these measurements to the Fiery using ColorWise Pro Tools Calibrator. Before using ColorWise Pro Tools and the DTP32 to calibrate the Fiery, follow the instructions on page A-12 for calibrating the DTP32 densitometer.

  • Page 56: Using Autocal And Colorcal

    Using AutoCal and ColorCal AutoCal and ColorCal allow you to calibrate the Fiery without the use of an additional spectrophotometer or densitometer. Instead, these methods use the ES3640e MFP’s built-in scanner to measure toner density values. Using either AutoCal or ColorCal provides an equally accurate calibration of the Fiery.

  • Page 57: Calibrating With Colorwise Pro Tools And Autocal, Or Colorcal

    To calibrate using AutoCal or ColorCal, you need the Kodak Gray Scale strip included in the customer media pack that came with your ES3640e MFP. To calibrate the ES3640e MFP for ColorCal, you need the Kodak Gray Scale strip and Kodak Color Control Patches strip.
  • Page 58 2-24 Colour Calibration 6. Make sure that you have loaded the media that you want in a paper tray. Choose the Input Tray to use for the measurement page, and click Print. AutoCal ColorCal The Page Type is automatically set to AutoCal Page or ColorCal Page. The Paper Size is automatically set to LTR/A4.
  • Page 59 2-25 Using AutoCal and ColorCal 12. Place the Kodak Gray Scale strip, Kodak Colour Control Patches strip, and scanner measurement page in the correct positions on the copier glass for scanner calibration. Place the Gray Scale strip face down on the platen glass so that it will be centered along the top edge of the scanner measurement page.

  • Page 60: Calibrating From The Control Panel With Autocal Or Colorcal

    Calibrating from the Control Panel with AutoCal or ColorCal If an Administrator password has been set, you will need it to perform calibration from the Printer Control Panel. For instructions on using the ES3640e MFP Printer Control Panel, see the Configuration Guide Chapter 4.
  • Page 61 8. When prompted, choose Yes to print the measurement page. This page consists of swatches of colour that will be measured by the ES3640e MFP’s scanner and then compared to the target colour values. After the page is printed, the Measure Page screen appears.
  • Page 62 2-28 Colour Calibration O REMOVE CALIBRATION FROM THE ONTROL ANEL 1. From the ES3640e MFP Printer Control Panel, access the Calibration menu as described page 2-26. 2. Choose Remove Calibration. 3. When prompted, verify that you want to proceed with removing calibration.

  • Page 63: Chapter 3: Colorwise Pro Tools

    3-1 ColorWise Pro Tools Designed to give you flexible control of colour printing, ColorWise Pro Tools include Chapter 3: the following colour management tools: ColorWise Pro Tools • Calibrator (see Chapter • Colour Editor • Profile Manager • Spot-On • Colour Setup ColorWise Pro Tools for Windows and Mac OS computers are fundamentally the same;...

  • Page 64: Profile Manager

    3-2 ColorWise Pro Tools Profile Manager Profile Manager allows you to manage and edit ICC profiles. In the case of the Fiery, these profiles are divided into RGB Source, Simulation, and Output profiles: • contains all monitor profiles resident on the Fiery. RGB Source profiles RGB Source are used to define the source colour space for RGB colours processed by the Fiery.

  • Page 65: Setting The Default Profiles

    3-3 Profile Manager When you use Profile Manager from some Windows NT computers, the default colour directory may not be created automatically when ColorWise Pro Tools are installed. Create the colour folder in the appropriate directory (for example, C:\WinNT\system32\color) and Profile Manager will be able to download and upload from the default location as expected.

  • Page 66: Downloading Profiles

    3-4 ColorWise Pro Tools If no default is set for RGB Source, the RGB Source print option is set to None. If no default profile is set for Simulation, the CMYK Simulation print option is set to None. For more information on print options, see Chapter The Output profile always has a default profile.

  • Page 67: Editing Profiles

    Editing profiles You can customize the profiles on the Fiery to meet your specific needs and the characteristics of your ES3640e MFP printer using Colour Editor, either directly or through Profile Manager. For more information on editing profiles, see “Colour Editor”...

  • Page 68: Managing Profiles

    3-6 ColorWise Pro Tools Managing profiles Profile Manager allows you to back up profiles to ensure that no custom profiles are lost when the Fiery software is updated. You can also upload a copy of a built-in Fiery profile to your workstation in order to use it with an ICC-aware application, such as Photoshop.

  • Page 69: Defining Profiles

    3-7 Profile Manager 3. Click Yes to delete the profile. 4. To delete a profile currently set as the default or associated with a custom name, click Profile Settings and clear the default option. Defining profiles For Mac OS computers, before you apply any downloaded or edited profile to a print job, that profile must be linked to one of the predefined custom names, or you can set the profile as the default for all print jobs (see “Setting the default profiles”...
  • Page 70 3-8 ColorWise Pro Tools You can define custom profiles only. Default profiles are predefined and cannot be changed. 2. Select DIC-new in the Simulation list, and click Profile Settings or double-click DIC-new. 3. Select the “Appear in Driver as” option, choose one of the predefined custom simulation names (Simulation-1 through Simulation-10) from the menu, and then click Apply.

  • Page 71: Colour Editor

    3-9 Colour Editor Considerations for defining Output Profiles The procedures for defining Output Profiles is similar to the preceding example for defining Simulations profiles. However, note these differences: For output profiles, the predefined custom names are Output-1 through Output-10. When you choose Profile Settings for an output profile, the Use Calibration Set options also appear.
  • Page 72 3-10 ColorWise Pro Tools Colour Editor also has several Edit Modes for editing simulations: • —Create a custom master simulation that affects all print jobs to which it is Master applied, unless a linked simulation exists for the selected combination of simulation profile, simulation method, and output profile.
  • Page 73 3-11 Colour Editor 3. Choose a profile to edit and click Select. Another method is to open the Profile Manager, select a profile, and then click Edit. 4. For a simulation profile, choose Master from the Edit Mode menu. For an output profile, choose Custom from the Edit Mode menu.
  • Page 74 3-12 ColorWise Pro Tools 5. Select the colours you want to edit by turning colours off and on. The Eye icon to the left of each colour indicates whether that colour is visible on the graph and will be affected by changes to the curves, brightness, and dot gain controls.
  • Page 75 3-13 Colour Editor A curve with this shape A curve with this shape makes a colour appear makes a colour appear darker by adding density lighter by reducing in the midtones. density in the midtones. A curve with this shape increases contrast.
  • Page 76 3-14 ColorWise Pro Tools the printer driver at any one time. For information on linking custom profiles to the predefined custom profile names, see “Defining profiles” on page 3-7. If you are using the printer driver for Windows computers, custom profiles will appear in the driver window without being associated with a predefined profile name.

  • Page 77: Undoing Cmyk Simulation Edits

    3-15 Colour Editor When editing a simulation profile in Quick mode, clicking Import at the bottom of the Colour Editor window allows you to import a custom Quick Simulation created on another Fiery using the previous version of ColorWise. The current version of ColorWise does not allow you to save custom CMYK Quick, Full (Source GCR) or Full (Output GCR) Simulations independently;...

  • Page 78: Using Spot-On

    3-16 ColorWise Pro Tools You can create a custom comparison page and save it as a PostScript or Encapsulated PostScript (EPS) file called CALIB.PS. Print the file to the Hold queue of the Fiery from your application, or download it to the Hold queue with Fiery Downloader (see page 2-8).

  • Page 79: Starting Spot-On

    3-17 Using Spot-On Starting Spot-On You can start Spot-On from ColorWise Pro Tools. To work with Spot-On, you must first specify the output profile associated with the Spot Colour Dictionary that you want to edit. However, you may switch to a different output profile at any time while working with Spot-On.

  • Page 80: Using The Spot-On Main Window

    3-18 ColorWise Pro Tools Using the Spot-On main window The Spot-On main window displays a list of colour groups which represent libraries of spot colours on the Fiery. Tool icons for working with colours appear at the top of the window.

  • Page 81: Working With Existing Colours

    3-19 Using Spot-On O OPEN AND CLOSE A COLOUR GROUP 1. To open a colour group, click the icon to the left of the group name. You can also open a group by double-clicking the blank area to the right of the group name.
  • Page 82 3-20 ColorWise Pro Tools O REARRANGE THE PRIORITY OF COLOURS 1. To rearrange an entire colour group, select the desired colour group. To rearrange an individual colour, select the desired colour. Individual spot colours are marked with circular colour icons. 2.

  • Page 83: Creating Custom Colours

    3-21 Using Spot-On Creating custom colours Spot-On provides a number of default colour groups, such as PANTONE and DIC, in the colour list. You can add your own custom spot colours and groups to the list. O ADD A NEW COLOUR OR COLOUR GROUP 1.

  • Page 84: Downloading Custom Colour Groups

    You can download custom colour groups from your computer to the Fiery. Downloaded groups are added as custom groups to the Spot-On colour list and are enabled immediately for use on the ES3640e MFP. O DOWNLOAD CUSTOM COLOUR GROUPS 1. Select the line in the colour list where you want to add the downloaded group.

  • Page 85: Editing Colour Values

    3-23 Using Spot-On O UPLOAD CUSTOM COLOUR GROUPS 1. Select the name of the colour group you want to upload. 2. Choose Upload from the File menu. The Save As dialog box appears. 3. Browse to the location where you want to save the file, name the file, and then click Save.
  • Page 86 3-24 ColorWise Pro Tools O TARGET A COLOUR USING OLOUR EARCH 1. Select a colour icon from a colour group and choose Colour Search from the Edit menu. The Spot-On Colour Search window appears. You can also display this window by double-clicking a colour icon in the colour list.
  • Page 87 3-25 Using Spot-On 3. Use the following techniques to control how neighbouring colour patches are generated: Select either Lightness or Saturation in the Colour Directions Legend. Lightness generates neighbour patches based on darker to lighter shades of the original colour. This variation is displayed from left to right, with the original colour remaining in the centre of the middle group.
  • Page 88 3-26 ColorWise Pro Tools 6. Click OK to print the patches. The Print Pattern test page prints the following information: • Centre patch colour CMYK value • Colour spacing • Lightness or Saturation neighbours selected • Output profile selected The goal of the Spot-On Colour Search is to find the colour values that make a printed colour patch match a target, not the screen simulation of it.

  • Page 89: Using A Measurement Instrument To Target Colours

    3-27 Using Spot-On The Device Codes option allows you to enter colour values between 0 and 255. This option reflects the full range of colour values that the Fiery can actually reproduce, and provides finer gradations of colour than are possible with Percentages. 3.

  • Page 90: Saving Changes And Exiting Spot-On

    3-28 ColorWise Pro Tools 4. Place the ED-100 or ES-1000 over the target colour, making sure to centre the sample aperture over the colour. Press Measure to take the measurement. The measured CMYK values are imported into Spot-On as follows: •...

  • Page 91: Colour Setup

    3-29 Colour Setup Colour Setup Use Colour Setup to set the default ColorWise settings for the Fiery. To access Colour Setup, click its icon in the ColorWise Pro Tools main window. Setting default ColorWise options Colour Setup allows you to configure the default colour management settings for the Fiery.

  • Page 93: Appendix A: Colour Measurement Instruments

    A-1 Colour Measurement Instruments This appendix explains how to set up and calibrate the following colour measurement Appendix A: instruments: Colour Measurement • X-Rite DTP41 automatic scanning spectrophotometer Instruments • X-Rite DTP32 automatic scanning densitometer Using the X-Rite DTP41 spectrophotometer ColorWise Pro Tools Calibrator supports the X-Rite DTP41 spectrophotometer, a device that measures density and colour data.
  • Page 94 A-2 Colour Measurement Instruments 3. Plug the square end of the interface cable (looks like a modular phone plug) into the serial interface connection on the side of the X-Rite DTP41. Instrument button Alignment mark LED indicator Measurement page slot Power input Calibration strip entrance Serial interface connection...
  • Page 95 A-3 Colour Measurement Instruments 4. Attach the connector to the computer. For a Windows computer, insert the 8-pin mini-DIN end of the interface cable into the 9-pin DB9 Connector cable adapter. Insert the 9-pin end into the COM1 or COM2 port on the computer and tighten the screws. If the available port on your computer is 25-pin, you must use the 8-pin-to-25-pin adapter.
  • Page 96 A-4 Colour Measurement Instruments For Mac OS computers with a USB port (for example, an iMac), you need an adapter to connect the DTP41 to your computer. For information on supported adapters, see the X-Rite, Inc. web site (www.x-rite.com). 5. Use the AC adapter to provide power. Plug the small connector on the adapter cable into the power input of the X-Rite DTP41 and plug the AC adapter into the power cord.

  • Page 97: Calibrating The Dtp41

    A-5 Colour Measurement Instruments Calibrating the DTP41 For the best colour accuracy, calibrate the X-Rite DTP41 spectrophotometer every time you calibrate the Fiery. You can initiate the calibration sequence in ColorWise Pro Tools Calibrator as part of the process of Fiery calibration. The computer may also prompt you that it is necessary to calibrate the spectrophotometer.
  • Page 98 A-6 Colour Measurement Instruments 5. In the Measurement Options dialog box, click Measure. 6. Choose the appropriate COM port for the DTP41 from the Available Ports menu. The Instructions area displays instructions for selecting the port.
  • Page 99 A-7 Colour Measurement Instruments 7. Click Utilities. The Utilities dialog box appears. To view version and serial number information, click Show DTP-41 Info. When you are finished, click Done. 8. Click Calibrate DTP-41. The Instrument Calibration dialog box appears. 9. If you have not already done so, remove the shipping spacer from the measurement page slot.
  • Page 100 A-8 Colour Measurement Instruments 10. Insert the end of the Colour Reflection Reference strip into the calibration strip entrance on the DTP41. Centre the arrow on the strip below the alignment mark (see the diagram on page A-2), and slide the strip into the DTP41 until you feel the resis- tance of the feed mechanism.

  • Page 101: Using The X-Rite Dtp32 Densitometer

    A-9 Colour Measurement Instruments Using the X-Rite DTP32 densitometer ColorWise Pro Tools are designed to work with the X-Rite DTP32 reflection densitometer, which feeds colour measurements to the Fiery automatically. Measurements from other densitometers can be input using a simple ASCII file format (see Appendix Setting up the DTP32...
  • Page 102 A-10 Colour Measurement Instruments 3. Attach the connector to the computer. For a Windows computer, insert the 8-pin mini-DIN end of the interface cable into the 9-pin DB9 Connector cable adapter. Insert the 9-pin end into the COM1 or COM2 port on the computer and tighten the screws. If the available port on your computer is 25-pin, you must use the 8-pin-to-25-pin adapter.
  • Page 103 A-11 Colour Measurement Instruments 4. Plug the small connector on the adapter cable into the side of the X-Rite DTP32 and plug the AC adapter into a wall outlet. Small connector AC adapter 5. Turn on the computer. 6. Calibrate the DTP32 (see page A-12).

  • Page 104: Calibrating The Dtp32

    A-12 Colour Measurement Instruments Calibrating the DTP32 You will need the black-and-white X-Rite Auto-Cal Strip included with the densitometer. Calibrating the densitometer does not require ColorWise Pro Tools. DTP32 O CALIBRATE THE 1. Connect the densitometer to the computer and supply power (see page A-9).

  • Page 105: Appendix B: Importing Density Measurements

    B-1 Importing Density Measurements This appendix describes Simple ASCII File Format, which can be used to import Appendix B: density measurements from measurement devices. To use your own measurement data Importing from an alternate measurement instrument, record your individual readings in a text Density file and structure it as follows.

  • Page 106: Example Of 1D Status T Density For Efi 34 Patch Page

    B-2 Importing Density Measurements Example of 1D Status T density for EFI 34 patch page This file format is used to specify the Status T density measurements of the EFI 34 patch page. The value in the first column is the patch number. The first patch must be 1 and the last must be 34.

  • Page 107: Example Of 1D Status T Density For An Arbitrary Page

    B-3 Importing Density Measurements Example of 1D Status T density for an arbitrary page This file format is used to specify the Status T density measurements of a user-defined patch page. The value in the first column is the ink/toner percentage of the patch. The first percentage must be 0 and the last percentage must be 100.
  • Page 109 Index Index Calibrator Expert Mode 2-8 Absolute Colorimetric rendering style 1-5 printing Comparison Page 2-8 Apple Standard setting, RGB Source Profile restoring defaults 2-10 option 1-9, 3-2 using 2-6 to 2-10 AutoCal calibration viewing measurements 2-9 from ColorWise Pro Tools 2-23 CMYK Simulation Method from Control Panel 2-26 option 1-3, 1-11...
  • Page 110 I-2 Index Combine Separations option 1-13 ES-1000 2-11 calibrating with 2-12 Comparison Page 2-8, 3-15 composites, printing 1-6, 1-8, 1-13 importing measurements with 3-27 Configuration page 2-5 Euroscale, CMYK Simulation option 3-2 Contrast ICC rendering style 1-5 Control Panel Full (Output GCR) setting, CMYK calibration from 2-26 Simulation Method option 1-11 removing calibration 2-28...
  • Page 111 I-3 Index Output Profile option 1-3 output profiles Relative Colorimetric rendering style 1-5 calibration sets for 2-3, 2-4, 3-9 Rendering Style option 1-4 rendering styles xii, 1-2, 1-4, 1-5 RGB images PANTONE Coated Colour Reference 1-8 defining source profiles for 1-9, 3-2 passwords PostScript and non-PostScript for calibration 2-2, 2-6...
  • Page 112 I-4 Index undercolour removal (UCR) 1-10 White Point option 1-3 Windows colour management options 1-14 to 1-15...
  • Page 113 Oki Europe Limited Central House Balfour Road Hounslow TW3 1HY United Kingdom Tel: +44 (0) 208 219 2190 Fax: +44 (0) 208 219 2199 www.okiexecutiveseries.com...
