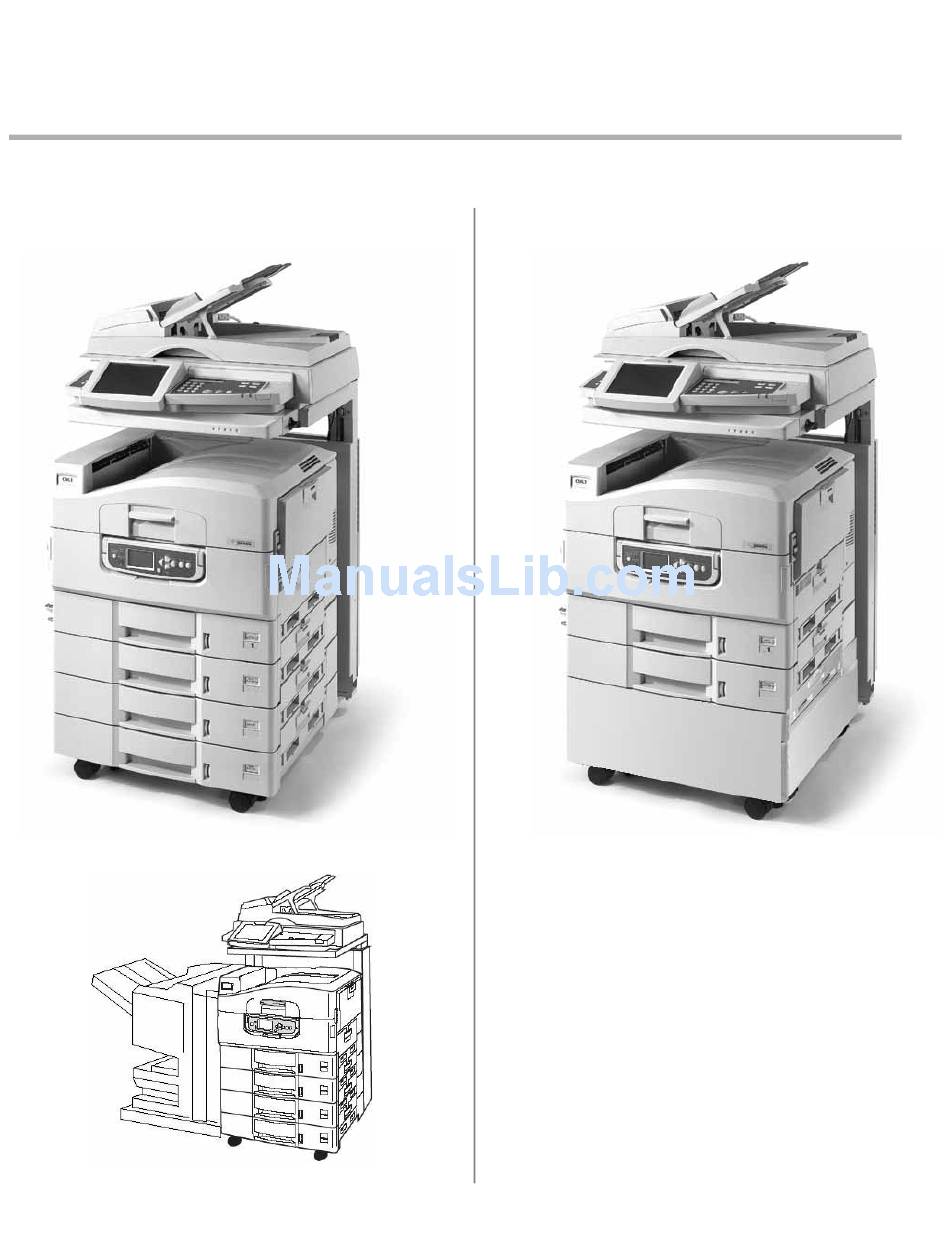

- Page 1 ES3640e MFP Technician’s Installation Guide Configuration A Configuration B with High Capacity Feeder with Second Tray and Cabinet ES3640e MFP ES3640e MFP HCF.jpg cab.jpg With optional Finisher: ES3640e 01_Finis her.jpg...
- Page 2 ES3640e MFP Warning Icon.jpg Do not begin installation of this device before reading this entire Installation Guide. Important safety warnings follow.
- Page 3 Overview Configuration B ES3640e MFP Configuration B is shipped in five units: Configuration A ES3640e MFP Configuration A is shipped in four units: ES3640e MFP 04.jpg ES3640e MFP 05.jpg ES3640e MFP 07.jpg ES3640e MFP 05.jpg ES3640e MFP 06.jpg ES3640e MFP 11.jpg ES3640e MFP 06.jpg ES3640e MFP 02.jpg ES3640e MFP 02.jpg...
-
Page 4: Basic Requirements
Basic Requirements Assembly Space NOTE You will need the following tools to Minimum Height 72 inches (1.83 m) assemble the unit: Minimum Width Socket • standard 78 inches (1.98 m) Wrenchj • with optional finisher 109 inches (2.77 m) Minimum Depth 73 inches (1.85 m) Electrical: Voltage: 110-127 VAC, 60 Hz... - Page 5 Step 1 Install the Printer on its Configuration A: High Capacity Feeder Support. 1. Unpack the High Capacity Feeder (HCF) and remove any external shipping tape/restraints. Accessories in Printer Box 2. Unpack the printer and remove any external shipping tape. 3.
- Page 6 Configuration B: Cabinet/Second Tray 1. Unpack the printer cabinet and remove any packing materials. Note the location of the pins ES3640e MFP 11a.jpg Caution Hurt Back Icon.jpg 6. Align the printer with the second paper tray, then lower the printer onto the tray/cabinet . . 2.
-
Page 7: Step 2 Prepare The Printer
Step 2 Prepare the Printer. 2. Snap the Paper Catcher into the top of the printer. 1. Load paper in the trays. a. Pull out the tray. b. Squeeze the release on the paper guides and move them apart. ES3640e MFP 65a.jpg ES3640e 27a.jpg... - Page 8 4. Lift the operator panel, open the front cover and 6. For each drum, remove the tape and the remove the shipping tape. Close the front cover. protective sheets. ES36 ES3640e MFP 16.jpg 20.jp ES3640e 17.jpg 5. Remove the colored image drum packing pieces. ES3640e MFP 21.jpg 7.
- Page 9 8. For each color toner cartridge: c. Lock the toner cartridge with the lever. a. Shake the toner cartridge from side to side to distribute toner. ES3640e MFP 23.jpg b. Remove sealing tape and insert the cartridge into the corresponding color drum in the printer.
-
Page 10: Step 3 Assemble The Stand
Step 3 Assemble the Stand. 8 Leg Bolts with Lock Washers and Flat Washers for Stand Legs Accessories in the Stand Box ES3640e MFP 99.jpg 2 Screws with Lock Washers and Flat Washers for Bottom of Printer Brackets 2 Screws with Lock Washers and Flat Washers for Plate Lock Mechanism 2 Screws with Lock Washers and Flat Washers for attaching the Printer to the Bumper... - Page 11 1. Unpack the stand, removing any shipping tape/ ES3640e MFP 89a.jpg materials. Stand Components: ES3640e MFP 36a.jpg The stand includes cylinders for moving the scanner shelf up and down. Use extreme caution when assembling the stand. NEVER ATTEMPT TO RAISE OR LOWER THE SHELF WITHOUT THE SCANNER BOLTED TO IT.
- Page 12 2. Attach the legs with casters to either end of the 5. Place the scanner shelf on the frame and secure it frame, using the eight leg bolts. in place using four of the medium screws. ES3640e MFP 89a.jpg NEVER ATTEMPT TO RAISE OR LOWER THE SHELF WITHOUT THE SCANNER BOLTED TO ES3640e MFP 92.jpg 3.
- Page 13 8. Pull the safety lever (1) back and hold it while Important! feeding the plate (2) through the channel. scan_stand_2_crop.jpg Make sure the plate lock mechanism cables are not twisted or kinked. 7. Hold the plate lock mechanism with the flat plates facing the inner side wall of the shelf (cables facing the outer side wall) and begin to feed it into the channel between the walls.
- Page 14 9. First person: pivot the release handle (1) on the 11. Secure the plate lock mechanism with the two side of the stand down and hold it there. Second plate lock mechanism screws. person: hold the safety lever (2) back and maneuver the square hole in the plate lock mechanism (3) toward the handle key (4) inside the shelf.
- Page 15 Step 4 Mount the Scanner on ES3640e MFP 89a.jpg the Stand and Secure it to the Shelf. Accessories in Scanner Box NEVER ATTEMPT TO RAISE OR LOWER THE SHELF WITHOUT THE SCANNER BOLTED TO IT. Important! Make sure the shelf is in the extended (uppermost) position.
- Page 16 4. Secure the scanner to the shelf using four 5. Open the scanner lid and remove all packing medium screws: materials. a. First screw: Pull the safety lever (a) back to expose the hole in the shelf. Insert one medium screw up through the hole and into the scanner, then tighten the screw (1).
- Page 17 8. Insert the locking cap in the scanner lock. 2. Attach the power strip to the lower left side (viewed from the front) of the scanner stand using the two screws provided in the printer box. ES3640e MFP 60.jpg ES3640e MFP 45.jpg 9.
- Page 18 scanner power supply. then connect the other end 7. Secure the DCD cable to the top back of the shelf to the power strip. using one of the cable clips and one of the medium screws (“Accessories in Scanner Box” on page 15).
- Page 19 (see “Accessories in the Stand Box” on page 10). Important!! ES3640e MFP 30 crop.jpg Do not connect this product to an uninterruptible power supply (UPS). For further information please contact Oki Data at 1-800-OKIDATA .
- Page 20 3. Move the printer back toward the stand. 6. Connect the DCD cable lines to the printer. ES3640e MFP 52.jpg ES3640e MFP 59a.jpg 4. Connect the printer power cord to the power strip. ES3640e MFP 55.jpg ES3640e MFP 58a.jpg 5. Use the thumbscrews to attach the printer to the 7.
-
Page 21: Step 7 Finish The Installation
Step 7 Finish the Installation Step 8 Connect to the Network TO PREVENT ANY POSSIBLE CRUSHING OF FINGERS, KEEP YOUR HANDS AWAY FROM NOTES THE POSTS AT THE BACK OF THE SCANNER The Ethernet cable is not supplied with the STAND WHEN MOVING THE SCANNER system. -
Page 22: Install The Software
Install the Software 3. Connect the ferrite core end of the Ethernet cable to the printer, then connect the opposite end to See the Software Install Guide and CDs supplied with the network. the printer. Test the Scan and Print Function ES3640e MFP 64 Right.jpg ES3640e MFP Basic System... - Page 24 Tel: (856) 235-2600 FAX: (856) 222-5320) my.okidata.com Oki Data Americas, Inc., 2735 Matheson Blvd. East, Unit 1, Mississauga (Ontario), Canada L4W 4M8 Tél. : 1 800 654-3282 Téléc. : (905) 238-4427 OKI, ® / MD / MR, Oki Electric Industry Company, Ltd.
