Access Control Lists (ACLs)
Editing ACLs and Creating an ACL Offline

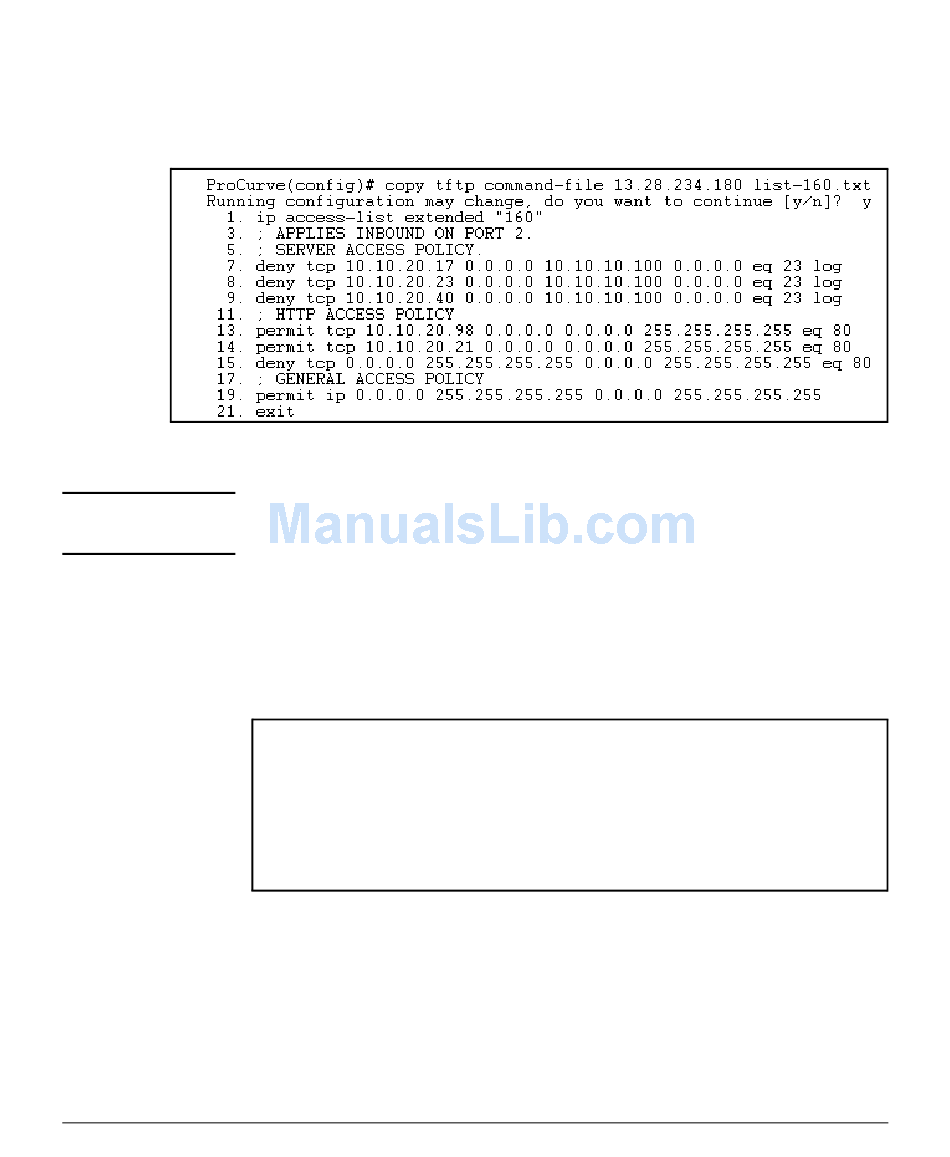

Figure 9-28. Example of Using "copy tftp command-file" To Configure an ACL in the Switch
Note
9-66
2. After you copy the above .txt file to a TFTP server the switch can access,
you would then execute the following command to download the file to
the switch's startup-config file:
If a transport error occurs, the switch does not execute the command and the
ACL is not configured.
3. Next, assign the new ACL to the intended interface which, in this example,
is for port 2.
ProCurve(config)# interface 2 access-group 160 in
4. Inspect the effect of the ACL on the switch's resources.
ProCurve(config)# show access-list resources
ACL Resource Usage
Feature
-----------------|-----|-------|---------|--------
cli-acl
idm-acl
Figure 9-29. Inspection of Resource Usage After Assigning an ACL
5. Inspect the new running configuration:
ProCurve(config)# show running
6. If the configuration appears satisfactory, save it to the startup-config file:
ProCurve(config)# write memory
Rules Rules Resources Resources
Used Maximum Used
| 19 | 128 |
| 0 | 128 |
Required
1 | 1
0 | 2
