MODEL W1727
1 HP Dust cOLLEctOr
OWNEr's MANuAL
(FOR MODELS MANUFACTURED SINCE 5/09)
Phone: 1-360-734-3482 • On-Line technical support: tech-support@shopfox.biz
cOPYrIGHt © sEPtEMBEr, 2004 BY WOODstOcK INtErNAtIONAL, INc. rEVIsED NOVEMBEr, 2010 (BL)
WArNING: NO POrtION OF tHIs MANuAL MAY BE rEPrODucED IN ANY sHAPE Or FOrM WItHOut
247569
tHE WrIttEN APPrOVAL OF WOODstOcK INtErNAtIONAL, INc.
#6269cr Printed in taiwan
Advertisement
Table of Contents
Related Manuals for Shop fox W1727
Summary of Contents for Shop fox W1727
- Page 1 MODEL W1727 1 HP Dust cOLLEctOr OWNEr's MANuAL (FOR MODELS MANUFACTURED SINCE 5/09) Phone: 1-360-734-3482 • On-Line technical support: tech-support@shopfox.biz cOPYrIGHt © sEPtEMBEr, 2004 BY WOODstOcK INtErNAtIONAL, INc. rEVIsED NOVEMBEr, 2010 (BL) WArNING: NO POrtION OF tHIs MANuAL MAY BE rEPrODucED IN ANY sHAPE Or FOrM WItHOut 247569 tHE WrIttEN APPrOVAL OF WOODstOcK INtErNAtIONAL, INc.
-
Page 3: Table Of Contents
Contents INTRODUCTION ....................2 Woodstock Technical Support ................2 About Your New W1727 Dust Collector ..............2 Specifications ....................2 Controls and Features ..................3 SAFETY ......................4 Standard Machinery Safety Instructions ..............4 Additional Safety for Dust Collectors ..............6 Avoiding Potential Injuries ................7 POWER SUPPLY....................8... -
Page 4: Introduction
Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation. Depending on the design of the dust collection system, this dust collector can draw up to 800 CFM. The Model W1727 can be used for household or commercial purposes. -
Page 5: Controls And Features

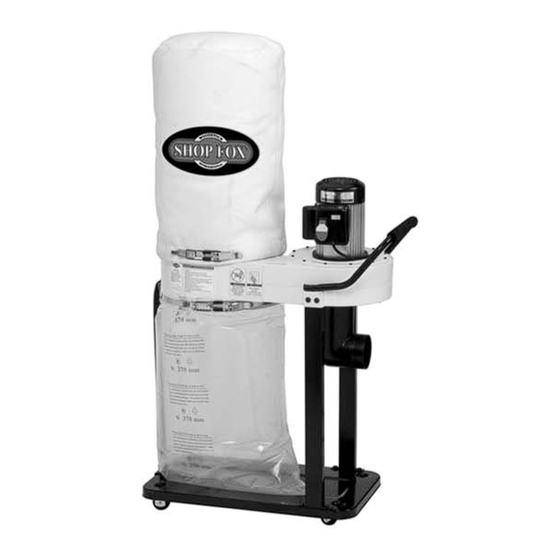

Model W1727 (For Machines Mfg. Since 5/09) Controls and Features Figure 1. Dust collector controls and features. A. ON/OFF Lockout Switch w/Key—Allows you D. 4" Elbow—Included with dust collector; to lockout the dust collector to prevent unsu- however, it can be removed to allow for pervised use. -
Page 6: Safety
Model W1727 (For Machines Mfg. Since 5/09) SAFETY For Your Own Safety, Read Manual Before Operating Machine Standard Machinery Safety Instructions Read and understand this Always wear hearing owner’s manual BEFORE using machine. protection when operating or observing Untrained users can be seriously hurt. - Page 7 Model W1727 (For Machines Mfg. Since 5/09) Untrained operators Unexpected movement during can be seriously hurt by machinery. Only operations greatly increases the risk of injury allow trained or properly supervised people and loss of control. Verify machines are to use machine. When machine is not being...
-
Page 8: Additional Safety For Dust Collectors
Model W1727 (For Machines Mfg. Since 5/09) Additional Safety for Dust Collectors This dust collector is only When emptying dust from intended for collecting wood dust and chips the collection container, wear a respirator from woodworking machines. DO NOT use and safety glasses. -
Page 9: Avoiding Potential Injuries
Model W1727 (For Machines Mfg. Since 5/09) Avoiding Potential Injuries Figure 4. NEVER leave the dust collector Figure 2. ALWAYS wear a respirator and safety plugged in and unattended. glasses when emptying dust bags. Figure 5. NEVER work around the intake port Figure 3. -
Page 10: Power Supply
Model W1727 (For Machines Mfg. Since 5/09) POWER SUPPLY Circuit Requirements This machine must be connected to the correct size and type of power supply circuit, or fire or electrical damage may occur. Read through this section to determine if an adequate power supply circuit is available. -
Page 11: Grounding Requirements
Model W1727 (For Machines Mfg. Since 5/09) Grounding Requirements This machine MUST be grounded. In the event of certain types of malfunctions or breakdowns, grounding provides a path of least resistance for electric current to travel—in order to reduce the risk of electric shock. -
Page 12: Setup
Model W1727 (For Machines Mfg. Since 5/09) SETUP Inventory The following is a description of the main components SHOP FOX carefully packaged with your Model W1727 ® 1 HP Dust collector. See Figure 9 and refer to the list below and inventory your shipment. -
Page 13: Base & Supports
Model W1727 (For Machines Mfg. Since 5/09) Base & Supports For quiet and vibration-free operation, assemble your dust collector as outlined below. DO NOT modify this dust collector for any other purpose than what it is designed for. To assemble this dust collector, do these steps:... -
Page 14: Duct Grounding
Model W1727 (For Machines Mfg. Since 5/09) Duct Grounding Under some circumstances, static electricity can be generated in dust collection systems and can collect on the plastic ducting surfaces. If this static electricity is discharged through a spark, there is a potential for the dust and oxygen in the ducting to ignite. -
Page 15: Power Connection
Model W1727 (For Machines Mfg. Since 5/09) Power Connection Before the machine can be connected to the power source, an electrical circuit and connection device must be prepared per the POWER SUPPLY section on Page 8, and all previous setup instructions in this manual must be complete to ensure that the machine has been assembled and installed properly. -
Page 16: Test Run
Model W1727 (For Machines Mfg. Since 5/09) Test Run Once the assembly is complete, test run your machine to make sure it runs properly and is ready for regular opera- tion. The test run consists of verifying the following: 1) The motor powers up and runs correctly, and 2) the safety dis- abling mechanism on the switch works correctly. -
Page 17: Operations
General Depending on your dust collection ducting design, your Model W1727 1 HP Dust collector can draw up to 800 CFM. However, system CFM can be reduced greatly if the wrong duct size, length, or too many duct bends are used. -
Page 18: Dust Collector Accessories
Model W1727 (For Machines Mfg. Since 5/09) Dust Collector Accessories The following accessories may be available through your local Woodstock International Inc. Dealer. If you do not have a dealer in your area, these products are also available through online dealers. Please call or e-mail Woodstock International Inc. -
Page 19: Maintenance
General SHOP FOX Regular periodic maintenance on your ® Model W1727 will ensure its optimum performance. Make a habit of inspecting your dust collector each time you use it. Check for the following conditions and repair or replace when necessary: •... -
Page 20: Service
Model W1727 (For Machines Mfg. Since 5/09) SERVICE General This section covers the most common service adjust- ments that may need to be made during the life of your machine. If you require additional machine service information not included in this section, please contact Woodstock International Technical Support at (360) 734-3482 or send e-mail to: tech-support@shopfox.biz. -
Page 21: 120V Wiring Diagram
Model W1727 (For Machines Mfg. Since 5/09) 120V Wiring Diagram Prewired 120V Connection Capacitor Start Switch White Black Green 5-15 Plug (120V) -19-... -
Page 22: 240V Wiring Diagram
Model W1727 (For Machines Mfg. Since 5/09) 240V Wiring Diagram 220V Wiring Diagram Optional 240V Connection Capacitor Start Switch White Black Green 6-15 Plug (240V) -20-... -
Page 23: Troubleshooting
Model W1727 (For Machines Mfg. Since 5/09) Troubleshooting This section covers the most common dust collector problems. DO NOT make any adjustments until the dust collector is unplugged and moving parts have come to a complete stop. SYMPTOM POSSIBLE CAUSE... -
Page 24: Parts
Model W1727 (For Machines Mfg. Since 5/09) PARTS Parts Main -22-... -
Page 25: Main Parts List
Model W1727 (For Machines Mfg. Since 5/09) Main Parts List PART # DESCRIPTION PART # DESCRIPTION X1727001 IMPELLER/SEPARATOR HOUSING X1727026 SPECIAL 6MM CONCAVE WASHER X1727002 4" ELBOW XPSB02M CAP SCREW M6-1.0 X 20 XPFS03 FLANGE SCR 10-24 X 3/8" X1727028... - Page 27 Model W1727 (For Machines Mfg. Since 5/09)
