IBM NeXtScale System Planning And Implementation Manual page 217

Platform Filter Events tab
In the PEF tab, you can configure the type of events that are sent as SNMP traps,
as shown in Figure 7-34. You also can enable or disable SNMP and SMTP
alerting by selecting the Global Alerting Enable option.

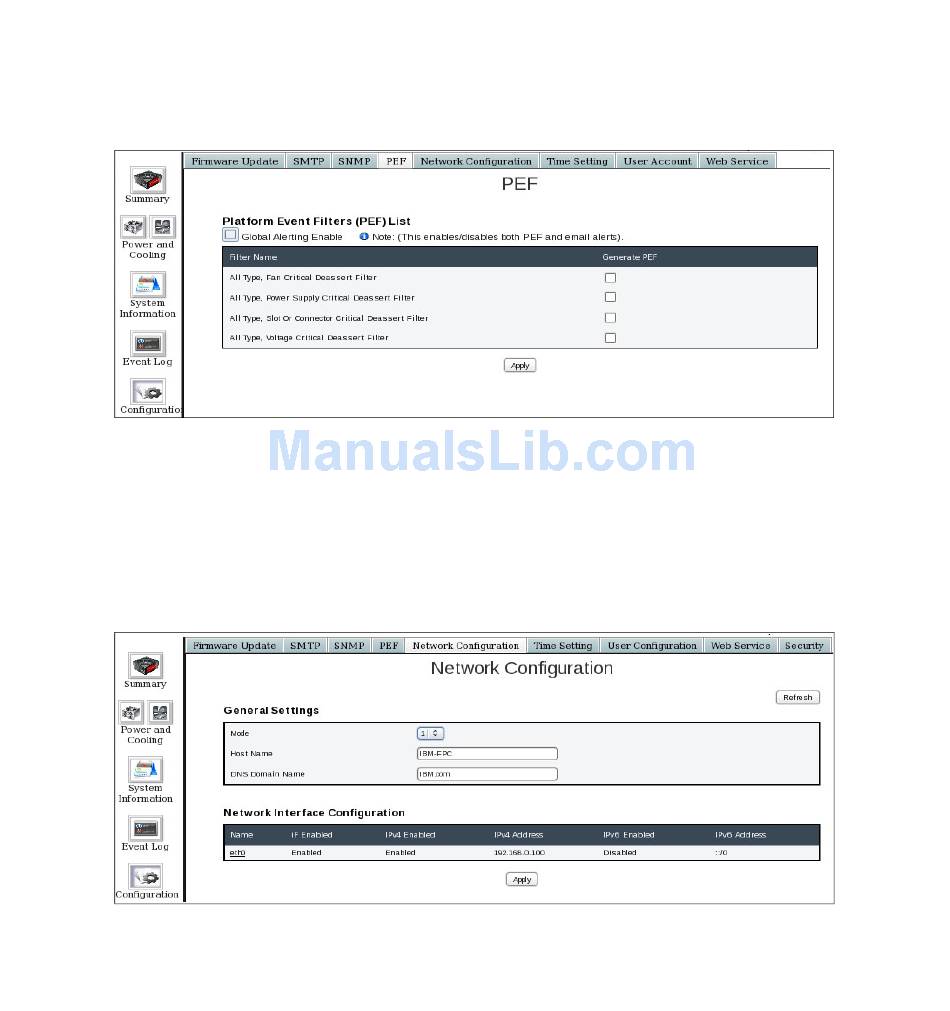

Figure 7-34 Platform Event Filters window
Network Configuration tab
In the Network Configuration tab, users can configure the network setting for the
FPC module, as shown in Figure 7-35. Hostname, static IP address, DHCP and
VLAN configuration can be set.
To access the specific network configuration settings windows, double-click the
current network interface configuration.
Figure 7-35 Network configuration window.
Chapter 7. Hardware management
199
