Rear Overview tab
The rear overview window provides a graphical rear view of the enclosure and a
table that lists the status and information regarding power supply units, system
fans, and FPC module information. It displays characteristics of the available
elements and a summary of health conditions, with which the system
administrator can easily identify the source of a problem.
Figure 7-17 provides a view of the rear overview window. Table 7-2 and Table 7-3
on page 184 shows the possible values that can appear in each column of the
tables.

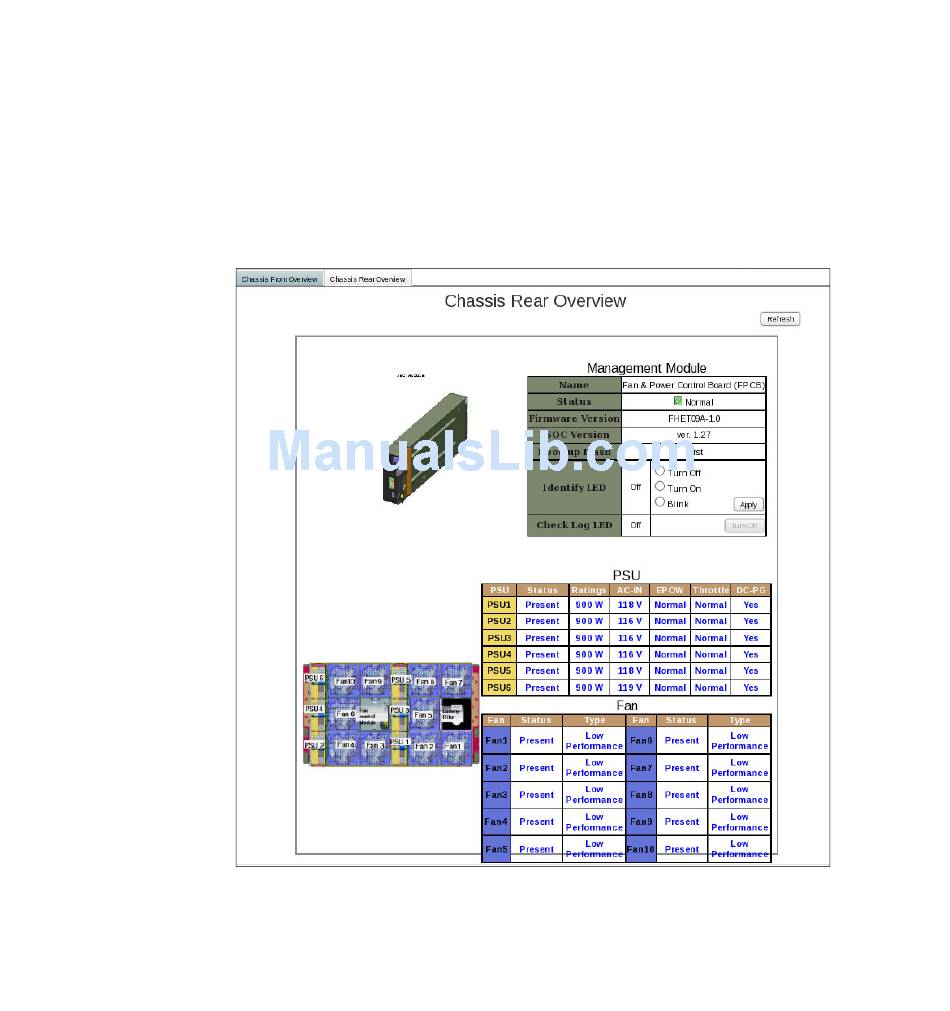

Figure 7-17 Summary rear overview
