Simrad AP50 Autopilot
6.13 R3000X Remote Control
STBY AUTO
SIMRAD R3000X

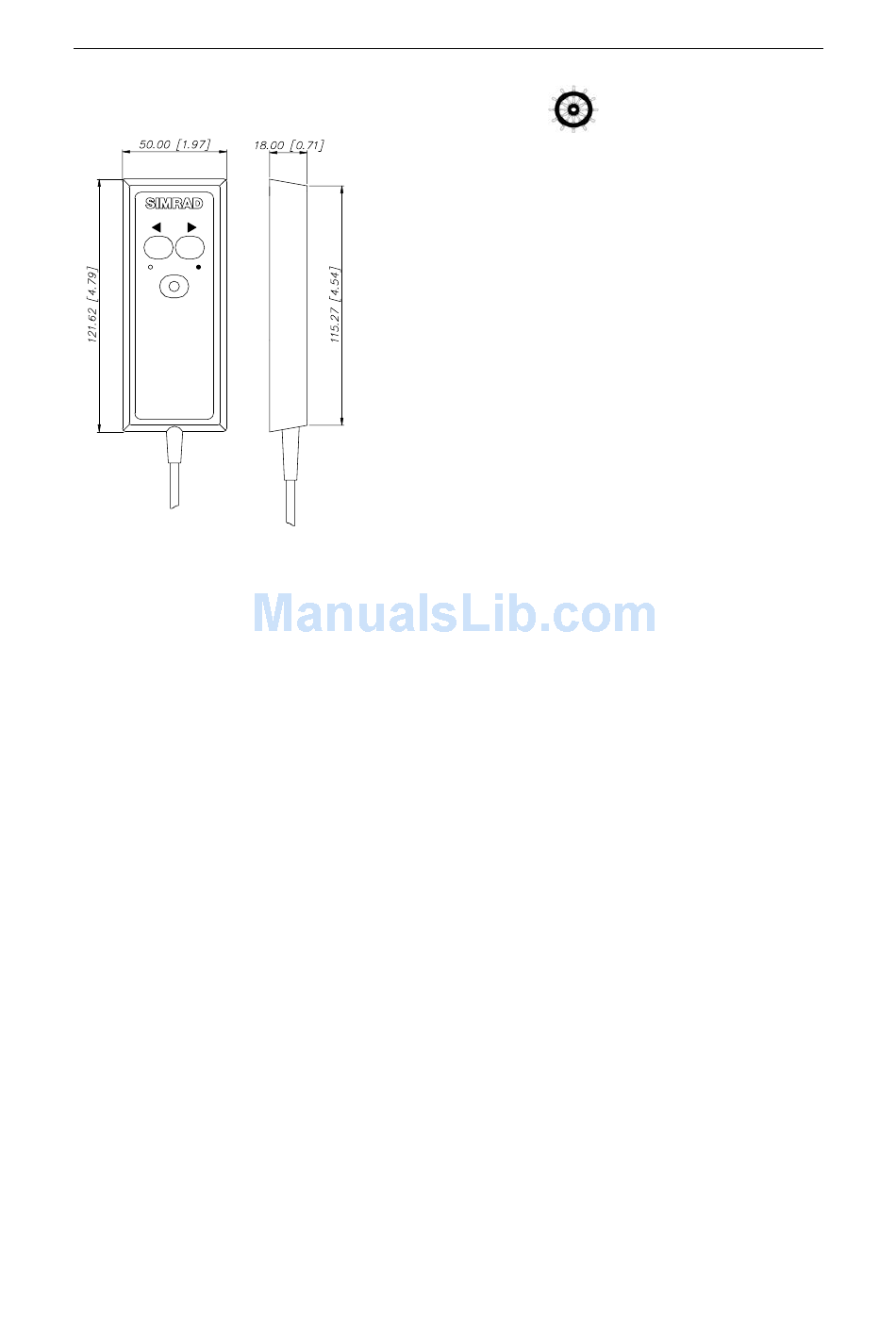

Figure 6-10 R3000X Remote Dimensions
110
Dimensions:.................................See Figure 6-10
Weight: ......................................... 0.4 kg (0.9 lbs.)
Material: .........................Epoxy-coated aluminum
Environmental Protection...............................IP56
Safe distance to compass:.............. 0.15 m (0.5 ft.)
Temperature range:
Operating: ...........–25 to +55°C (–13 to +130°F)
Storage:...............–30 to +70°C (–22 to +158°F)
Cable:....................................7 m (23 ft.), shielded
Mounting bracket: ................................... Supplied
20222410 / B
