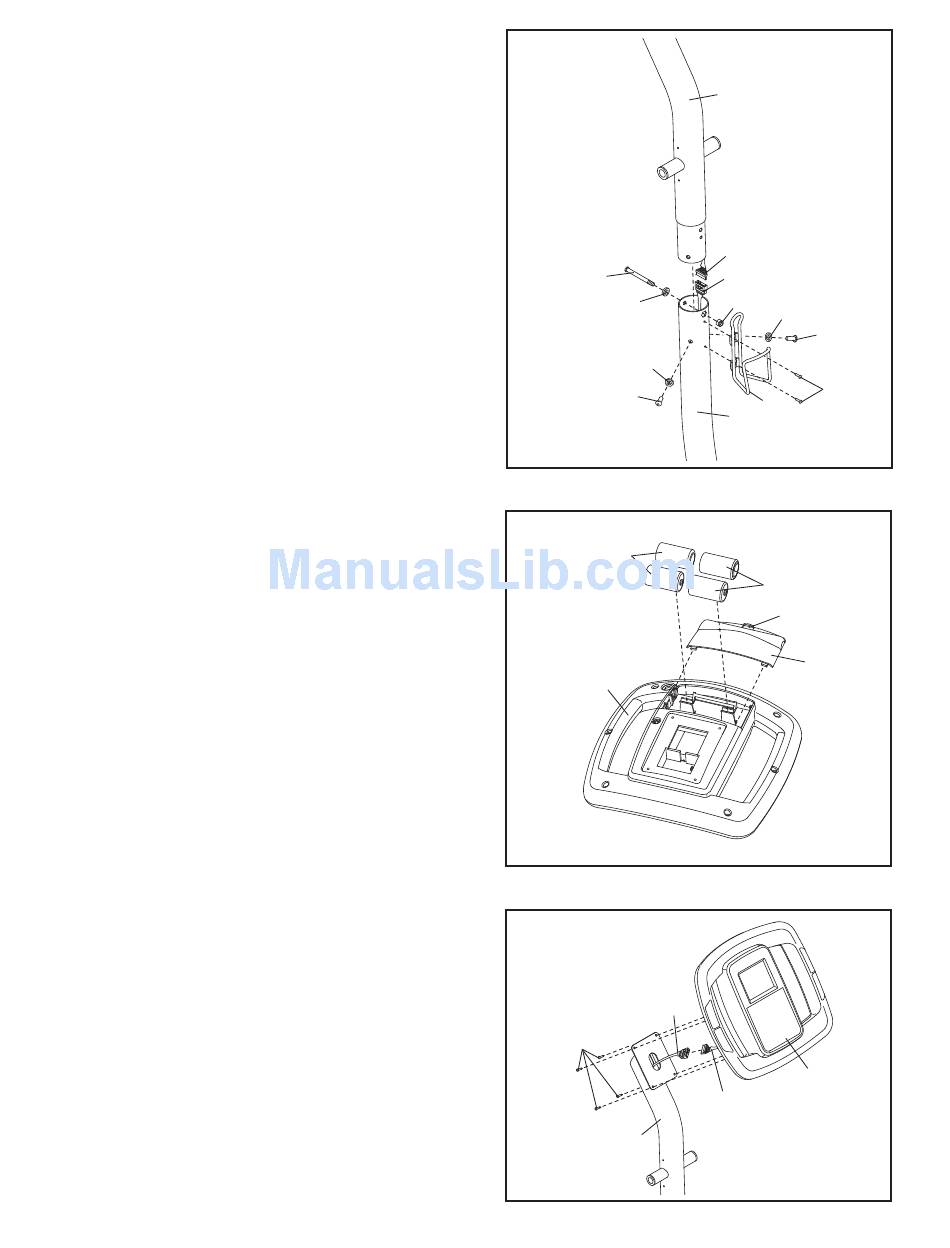

6. While another person holds the Upright (3), connect
the Upper Wire Harness (48) to the Lower Wire
Harness (49). Gently pull the upper end of the
Upper Wire Harness to remove any slack, and
insert the Upright into the Base (1). Attach the
Upright with an M8 x 70mm Button Bolt (80), an M8
Split Washer (90), and an M8 Jamnut (79). Do not
tighten the Button Bolt yet; make sure that the
Jamnut is in the hexagonal hole in the Base.
Next, finger tighten two M8 x 23mm Patch Screws
(84) with two M8 Split Washers (90) into the Base
(1). Do not tighten the Button Screws yet.
Attach the Water Bottle Holder (22) to the Base (1)
with two M4 x 14mm Screws (104).
7. The Console (5) can use four 1.5V "D" batteries;
alkaline batteries are recommended. IMPORTANT:
If the Console has been exposed to cold temper-
atures, allow it to warm to room temperature
before inserting batteries. Otherwise, you may
damage the console displays or other electronic
components. Remove the battery cover, insert the
batteries into the battery compartment, and reattach
the battery cover. Make sure to orient the batter-
ies as shown by the diagram inside the battery
compartment.
8. While another person holds the Console (5) near
the Upright (3), connect the wire harness on the
Console to the Upper Wire Harness (48). Insert the
excess wire harness into the Upright. Next, attach
the Console to the Upright with four M4 x 16mm
Round Head Screws (101). Be careful to avoid
pinching the wire harness.
6
80
90
90
84
7
Batteries
5
8
101
3
8
3
48
49
79
90
84
104
22
1
Batteries
Tab
Battery
Cover
48
5
Wire
Harness
