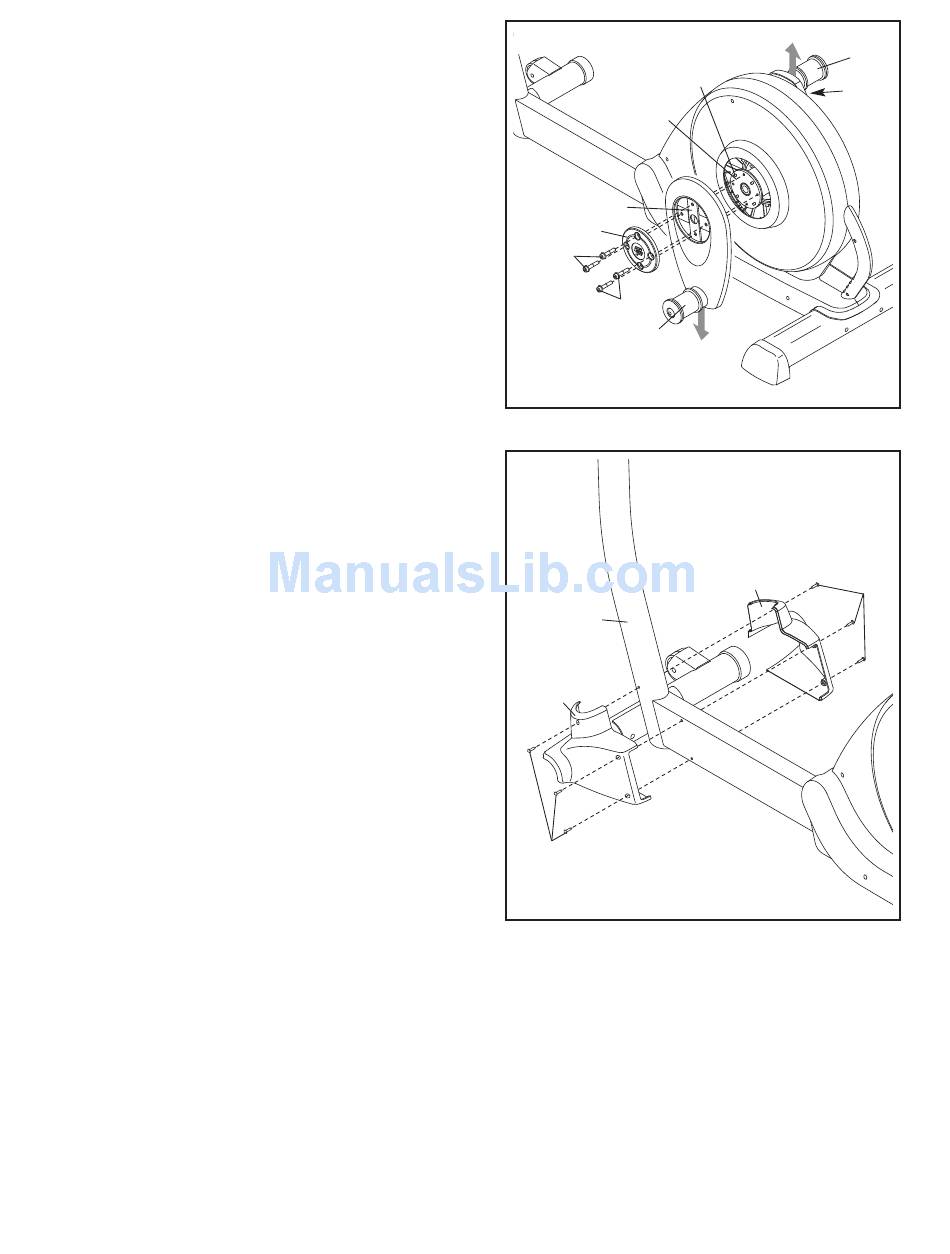

4. Hold a Hub Cover (75) and a Crank Arm (36)
against the left Crank Hub (38). Align the holes in
the Hub Cover and the Crank Arm with the unused
holes in the left Crank Hub. Next, insert four Hub
Patch Screws (87) into the Hub Cover and the
Crank Arm, and finger tighten the Hub Patch
Screws into the left Crank Hub. Tighten one Hub
Patch Screw, and then tighten the Hub Patch Screw
across from the first Hub Patch Screw. Then, tight-
en the remaining two Hub Patch Screws.
Repeat this step on the right side of the elliptical
exerciser; make sure that the Crank Arms (36)
are oriented so the Crank Bushing Sleeves (43)
are in the positions shown. Note: There are no
Pulley Screws (98) on the right side.
5. Identify the Left and Right Stabilizer Covers (71,
64), which are marked with "Left" and "Right" stick-
ers.
Attach the Left and Right Stabilizer Covers (71, 64)
around the Base (1) with six M4 x 16mm Round
Head Screws (101).
