ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included tools, assembly requires a Phillips screwdriver
wrench , and a rubber mallet

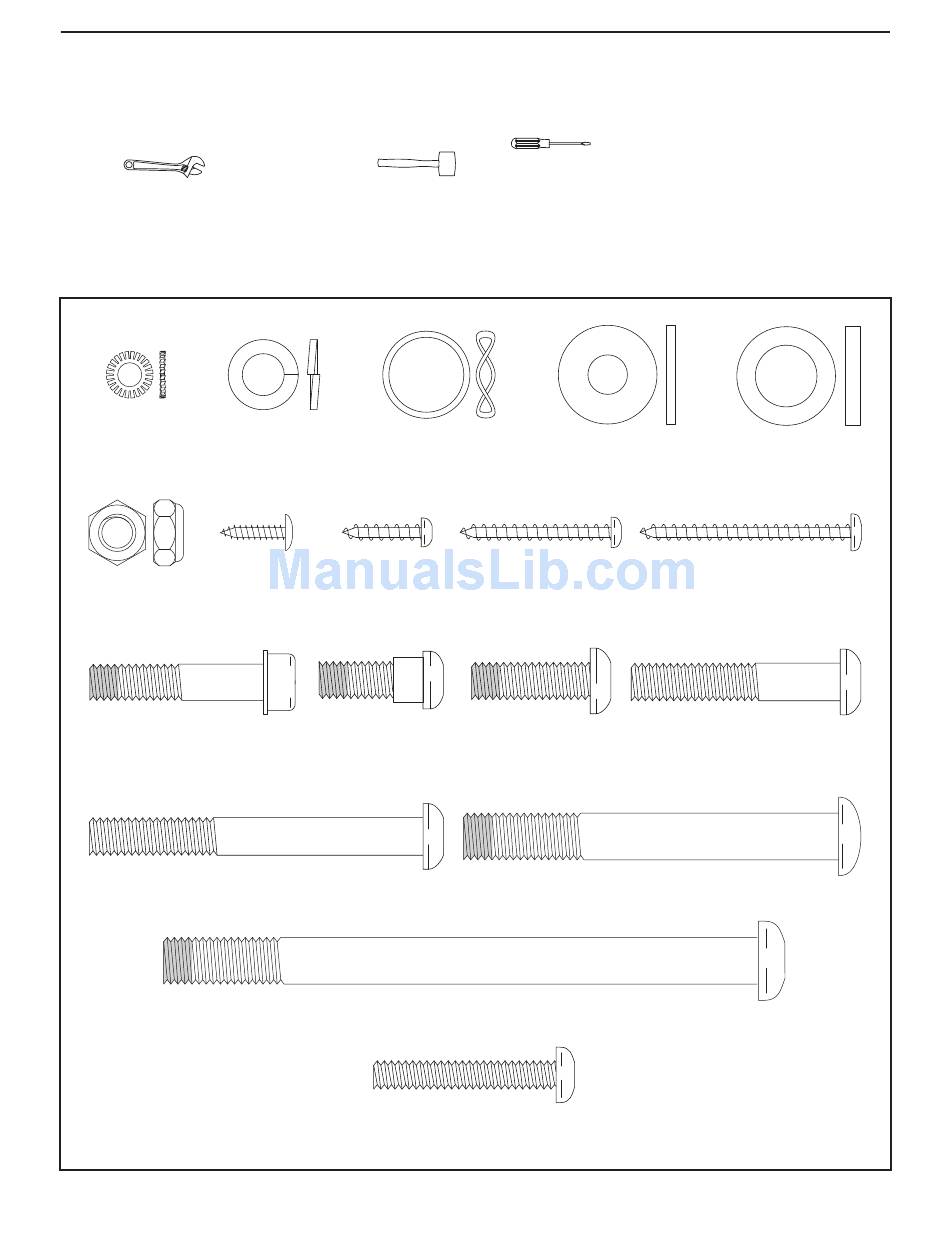

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-
ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: Some small parts may have
been preassembled. If a part is not in the hardware kit, check to see if it has been preassembled.
Star Washer M8 Split Washer
(112)–8
M4 x 14mm
Screw (104)–8
M8 Jamnut
(79)–5
Hub Patch Screw
(87)–8
M8 x 70mm Button
Bolt (80)–1
Wave Washer
(111)–2
(90)–3
M4 x 16mm
Round Head
Screw
(101)–14
M8 x 23mm Shoulder
Patch Screw (115)–4
M10 x 128mm Patch Screw (83)–2
Transport Handle
Screw (97)–4
, an adjustable
.
M8 Washer
(88)–6
M4 x 32mm Round
Head Screw
(105)–6
M8 x 23mm Patch
Screw (84)–4
M10 x 82mm Patch Screw
(82)–2
5
Bearing Spacer
(113)–4
M4 x 45mm Screw
(108)–2
M8 x 41mm Button
Bolt (78)–4
