Heat Recovery Ventilator

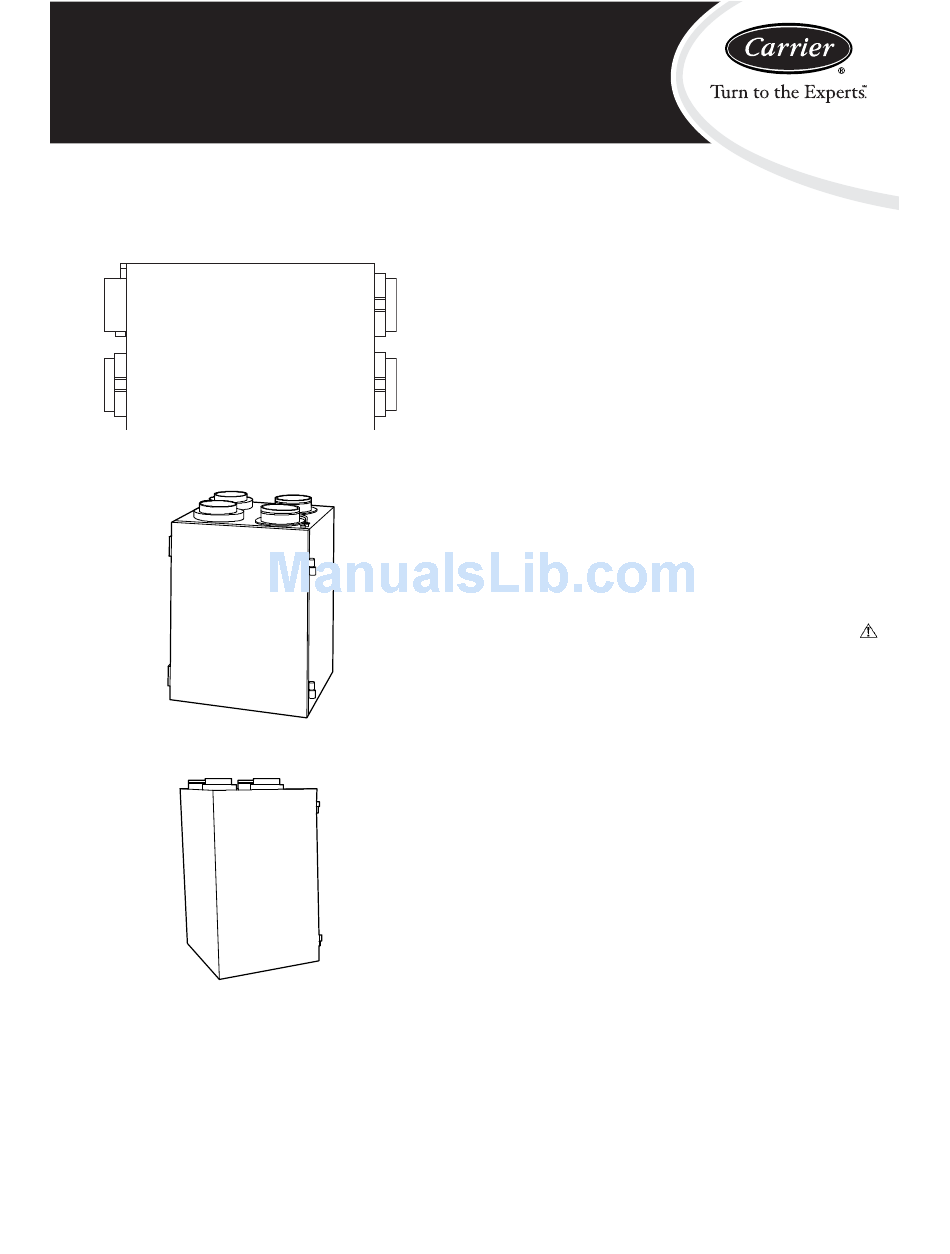

HRVCCLHA - - Conventional Unit
HRVCCSVU - - Compact Unit
HRVCCLVU - - High Efficiency Unit
Installation Instructions
A05260
A92268
A92377
NOTE: Read the entire instruction manual before starting the
installation.
SAFETY CONSIDERATIONS
Improper installation, adjustment, alteration, service, maintenance,
or use can cause explosion, fire, electrical shock, or other
conditions which may cause death, personal injury or property
damage. Consult a qualified installer, service agency or your
distributor or branch for information or assistance. The qualified
installer or agency must use factory- -authorized kits or accessories
when modifying this product. Refer to the individual instructions
packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Have a fire extinguisher available. Read these
instructions thoroughly and follow all warnings and cautions
included in literature and attached to the unit. Consult local
building codes and the current edition of the National Electrical
Code (NEC) NFPA 70.
In Canada, refer to the current editions of the Canadian Electrical
Code CSA C22.1.
Recognize safety information. When you see this symbol
the unit and in instructions or manuals, be alert to the potential for
personal injury. Understand the signal words DANGER,
WARNING, and CAUTION. These words are used with the
safety- -alert symbol. DANGER identifies the most serious hazards,
which will result in severe personal injury or death. WARNING
signifies hazards, which could result in personal injury or death.
CAUTION is used to identify unsafe practices, which may result
in minor personal injury or product and property damage. NOTE
is used to highlight suggestions which will result in enhanced
installation, reliability, or operation.
INTRODUCTION
The Heat Recovery Ventilator (HRV) is used to exchange indoor
stale air with outside fresh air. The HRV unit is equipped with a
special heat recovery core which transfers sensible heat between
the fresh incoming air and stale exhaust air.
It is required to locate the HRV in a conditioned space. Special
attention should be given to condensate drain, duct application,
balancing the HRV, and locating unit for easy access and routine
maintenance. The cross- -flow design core allows entering and
leaving air streams to transfer heat energy without mixing.
LOCATION
Inspect Equipment
Move carton to final installation location. Remove the HRV from
carton taking care not to damage unit. Remove all packaging and
inspect unit for damage. Remove parts bag from inside unit. File
claim with shipping company if shipment is damaged or
incomplete.
on
Advertisement
Table of Contents
Related Manuals for Carrier HRVCCLHA
Summary of Contents for Carrier HRVCCLHA
-
Page 1: Installation Instructions
-authorized kits or accessories when modifying this product. Refer to the individual instructions A05260 HRVCCLHA - - Conventional Unit packaged with the kits or accessories when installing. Follow all safety codes. Wear safety glasses, protective clothing, and work gloves. -
Page 2: Component Description
COMPONENT DESCRIPTION The following listed items are components of HRVCCLHA (see Fig. 1). A05349 Fig. 1 - - HRVCCLHA Conventional Horizontal Unit 1. Stale air return from building connected to return- -air duct A98408 system. Fig. 4 - - HRVCCSVU Compact Unit 2. -
Page 3: Unit Installation
UNIT INSTALLATION FRESH AIR FRESH AIR TO BUILDING FROM OUTSIDE CAUTION STALE AIR STALE AIR FROM BUILDING TO OUTSIDE UNIT DAMAGE HAZARD Failure to follow this caution may result in equipment damage or improper operation. Do not install HRV in a corrosive or contaminated atmosphere. - Page 4 HRVCCLVU units. The balancing dampers are provided in the insulated flexible duct is required. HRVCCLHA units (see balancing HRV section). Make sure both balancing dampers are left in fully open position before connecting the ducts to these ports. See Integrated balancing damper Insulated flexible duct is required on both fresh- -air inlet and illustration.
-
Page 5: Wall Control
Condensate Drain The unit operates continuously when LOW or HIGH is selected (see Table 1). To connect condensate drain, proceed as follows: Table 1 – Basic Control 1. Insert sleeved grommets into bottom of unit using the DAMPER gasket washer and nut (see Fig. 11). MODE OPERATION POSITION... - Page 6 Table 3 – Standard Control DEHUMIDISTAT DAMPER AIR EXCHANGE MODE OPERATION FAN SPEED ON LED POSITION POSITION Closed to outside Satisfied Call for dehumidification Air exchange with Open to outside outside Satisfied Intermittent High Call for dehumidification Table 4 – Automatic Control DEHUMIDISTAT DAMPER MODE...
-
Page 7: Electrical Connections
Cooling: Table 5 recommends humidity levels to avoid condensation. AUTO - - the ventilator selects the speed based on indoor humidity Table 5 – Recommended Humidity Levels and outdoor temperature. It may cycle on/off every 30 minutes depending on humidity and outside temperature. OUTSIDE DOUBLE ---PANE TRIPLE ---PANE... - Page 8 COLLAR fresh air intake and stale air exhaust ducts (See Fig. 15). NOTE: Temporary flow collars are not needed with the new HRVCCLHA models since the air flow pressure taps are incorporated in the access door (see Fig. 16). CONVERSION...
-
Page 9: Ventilation Evaluation
VENTILATION EVALUATION balancing dampers while located in flexible duct. Insulating over these dampers is strongly recommended after balancing is complete CAUTION to prevent condensation problems. Flow Collar Flow collars are temporary and should be installed as close to HRV UNIT DAMAGE HAZARD as possible and in straightest sections of duct to ensure accuracy Failure to follow this caution may result in reduced unit (see Fig. -
Page 12: Control Board Operation
CONTROL BOARD OPERATION Off and Intermittent/Off Mode When HRV is Off, K1 relay is open, and K5 relay is energized Board Function which closes outside air damper (see Logic Diagram in Fig. 19 and NOTE: To ensure proper operation of HRV, configuration 20). -
Page 13: Troubleshooting
NOTE: Reference Table 6 Troubleshooting Chart CAUTION This can be a quick guide in resolving unit problems. It is also recommended to review and understand Wall Control Board UNIT COMPONENT DAMAGE HAZARD Operation and Care and Maintenance sections before continuing. There are 3 main parts to focus on when troubleshooting HRV Failure to follow this caution may result in unit component unit: wall control, electronic control board and blower motor. - Page 14 Be sure to unplug and inspect the unit before proceeding with these steps. Start with problem 1, then problem 2 and so on. Table 6 – Troubleshooting Problem: Possible causes: You should try this: S Erratic operation of the electronic S Unplug the unit.
- Page 15 Table 7 – Temperature/Ohm Relationship 3. Plug HRV back to 115VAC. 4. Connect a 3.0 K ohm resistor between J3- -8 and J3- -9 (B and TEMP 〈°F/°C) OHMS G) on control module terminal block. 30/--- 1 34,480 5. Push in door switch, this will initiate a low- -speed exchange. 32/0 32,630 34/1...
- Page 16 Table 11 – Defrost Cycle EXTENDED DEFROST STANDARD DEFROST (AS SHIPPED) OUTSIDE TEMPERATURE (JUMPER JU1---F REMOVED) Above 23°F/--- 5°C No Defrost No Defrost 23°F to 5°F/--- 5°C to --- 15°C 6 Minute Defrost/32 Minute Exchange 10 Minute Defrost/30 Minute Exchange 4°F to --- 17°F/--- 16°C to --- 27°C 6 Minute Defrost/32 Minute Exchange 10 Minute Defrost/20 Minute Exchange...
- Page 17 Table 15 – System Wiring Colors and Connections CONTROL MODULE WALL CONTROL WIRE WALL CONTROL Terminal Block No. Color Terminal No. Terminal Identification Terminal Block Identification J3--- 9 Black J1--- 4 J3--- 8 Green J1--- 3 J3--- 7 J1--- 2 J3--- 6 Yellow J1--- 4...
- Page 18 Catalog No: HRV ---5SI Copyright 2009 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 03/09 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
