Copyright 2002 Carrier Corporation

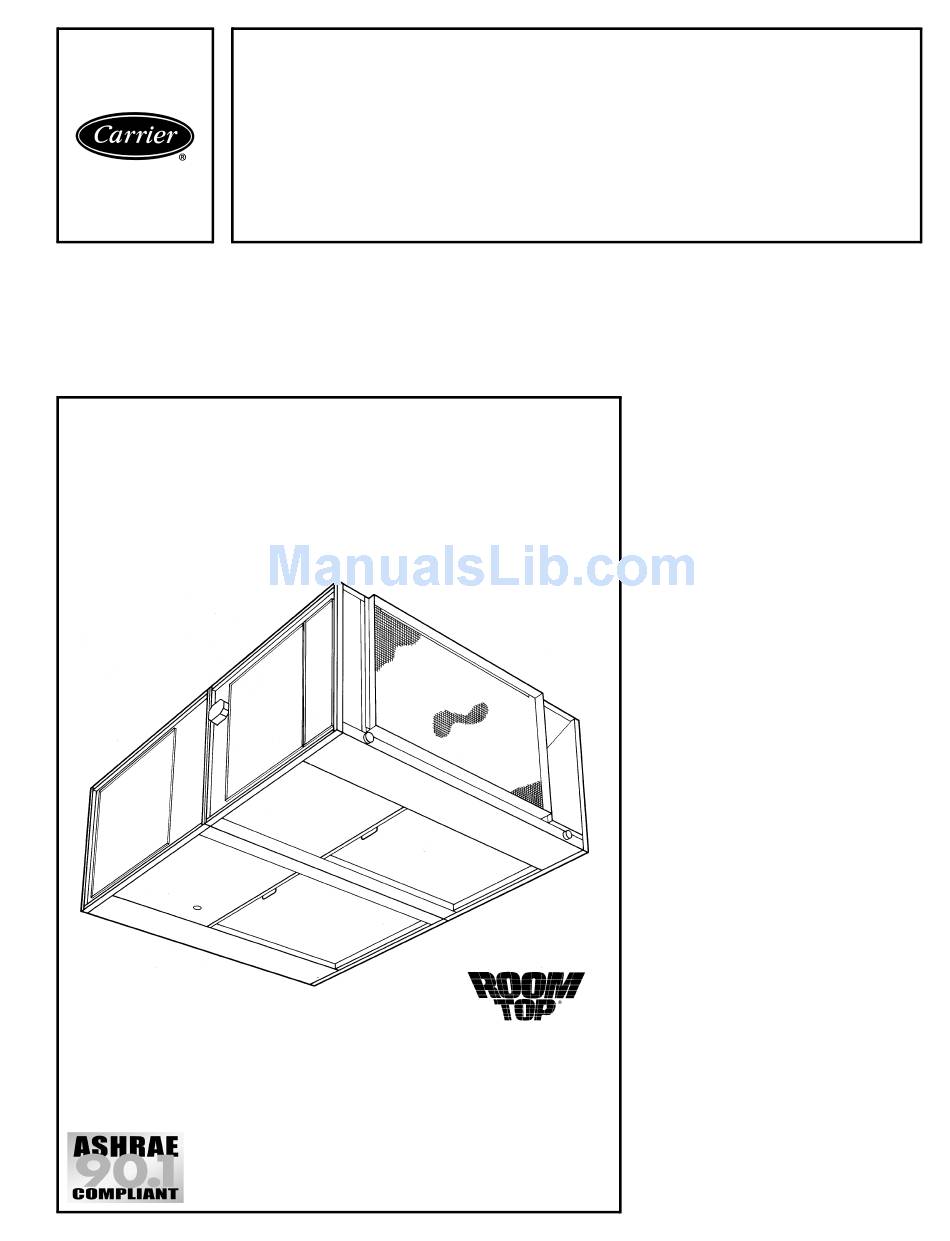

Product
Data
50AH
Horizontal Indoor
Single-Package
Cooling Units
2 to 5 Nominal Tons
Single Package Cooling Units
Featuring:
• compact design
• flexibility
• easy maintenance
• high quality and reliability
• quiet and efficient scroll compressor
technology
Features/Benefits
All in one package — high
cooling efficiency,
installation convenience,
ease of accessibility for time-
saving maintenance.
Space and cost saving design
Model 50AH is specifically designed to
provide the building owner with truly out-
of-sight cooling, because it installs inside
the ceiling. That's why we call it the Car-
rier ROOMTOP® unit. The compact de-
sign and low silhouette enable it to fit
easily and securely above the conditioned
space. Single-package construction
makes it easy to install with minimal time
and cost.
Application flexibility
If desired for particular applications, the
unit can also be installed as a split system
with the condenser section mounted hor-
izontally. Centrifugal fans permit ducting
of both evaporator and condenser air.
Quiet operation
Commercial end users appreciate the ex-
tra comfort of quiet operation. Carrier
engineers met the challenge by specify-
ing heavy insulation, vibration-resistant
construction and operating components
that function at low noise levels, all of
which keep system sound at a minimum
level.
Easy maintenance
When it comes to maintenance, the
50AH rates high in accessibility. Indoor
Form 50AH-6PD
Advertisement
Table of Contents
Related Manuals for Carrier 50AH
Summary of Contents for Carrier 50AH
-
Page 1: Features/Benefits
Centrifugal fans permit ducting of both evaporator and condenser air. Quiet operation Commercial end users appreciate the ex- tra comfort of quiet operation. Carrier engineers met the challenge by specify- ing heavy insulation, vibration-resistant construction and operating components that function at low noise levels, all of which keep system sound at a minimum level. -
Page 2: Table Of Contents
Indoor Fan Motor 6 – 460-3-60 3 – 230-1-60 – – Standard Motor 5 – 208/230-3-60 M – 1.5 hp Optional Motor *FIOP — Factory-Installed option, contact your Carrier representative for details. ARI* capacity ratings UNIT TOTAL NET TOTAL NOMINAL... -
Page 3: Physical Data
50 equivalent ft, assuming components will be installed in same horizontal plane. — High-Pressure Switch If components are not to be installed in same horizontal plane, contact your Carrier rep- — Low-Pressure Switch resentative for more information. For additional piping information, refer to Carrier System Design Manual, Part 3. -
Page 4: Field-Installed Accessories
Field-installed accessories Thermostat and subbase — Attractive wall-mounted Condensate pump — The condensate pump is used 24-v accessory provides precise temperature control. when the distance and slope to the nearest drain is far Automatic and Manual changeover models available. A enough to prevent the natural drainage of unit. -
Page 5: Base Unit Dimensions
Base unit dimensions DIMENSIONS (ft-in.) UNIT 50AH 1- 5 1- 5 1-11 1-11 UNIT COMPONENT LOCATIONS... -
Page 6: Selection Procedure
Selection procedure (with example) I Determine cooling requirements at design 1200 cfm and 67 F ewb will provide a Total conditions. Capacity (TC) of 44,200 Btuh and a Sensible Heat Capacity (SHC) of 31,300 Btuh. Since the entering Given: air is 80 F edb, an SHC correction is not required. Gross Cooling Capacity III Determine evaporator fan performance. -
Page 7: Physical Data
Performance data (cont) GROSS COOLING CAPACITIES (cont) 50AH048 50AH060 Evaporator Air Quantity Cfm/BF Evaporator Air Quantity — Cfm/BF Temp Temp 1200/0.06 1600/0.08 2000/0.10 1500/0.06 2000/0.09 2250/0.10 Air Ent Air Ent Condenser Condenser Evaporator Air Ewb Temp (F) Evaporator Air Ewb Temp (F) 56.0 52.1 47.9 44.4 57.7 54.5 50.6 49.6 59.4 56.0 52.7 52.3 64.8 58.5... - Page 8 Performance data (cont) BELT DRIVE EVAPORATOR FAN PERFORMANCE (Special Order Only, Pricing and ordering on related price pages.) UNIT SIZE — 50AH Fan kW Fan kW 1800 — — — — 1850 — — — — 1900 — — — —...
-
Page 9: Controls
ELECTRIC HEATER STATIC PRESSURE DROP (in. wg) UNIT CFM ELECTRIC HEATER UNIT UNIT 88EN 50AH 1000 1200 1400 1600 1800 2000 2200 0500CA01 — — — — — 0075CA01 024, 036 — — — — — 1-stage 0115CA01 heat — —... - Page 10 Electrical data (cont) ELECTRIC HEATER DATA BRANCH CIRCUIT ELECTRIC HEATER USED WITH V-PH CAP. (kW) UNIT 88EN UNIT 50AH (60 Hz) Heater Amps MOCP (Amps) 0050CA01 240-1 20.8 26.0 0075CA01 240-1 31.3 39.1 0115CA01 240-1 11.5 47.9 59.9 024, 036 1-Stage Heat 208-3 15.6...
-
Page 11: Typical Wiring Schematic
Typical wiring schematic 50AH048,060 — 230-1-60 UNITS LEGEND — Adjustable Heat Anticipator Marked Wire — Contactor Compressor — Circuit Breaker Denotes connection point between subbase and thermostat — Cooling Compensator Terminal (Marked) EQUIP GND — Equipment Ground — High-Pressure Switch Terminal (Unmarked) —... - Page 12 Typical wiring schematic (cont) 50AH036,048,060 — 208/230-3-60 UNITS LEGEND — Adjustable Heat Anticipator Marked Wire — Contactor Compressor — Circuit Breaker Denotes connection point between subbase and thermostat — Cooling Compensator Terminal (Marked) — Compressor Lockout — Current Transformer Terminal (Unmarked) EQUIP GND —...
-
Page 13: Typical Piping And Wiring
Typical piping and wiring LEGEND 3. All piping must follow standard refrigerant piping techniques. Refer to Carrier System Design Manual, Part 3, for details. NEC — National Electrical Code 4. For other installation details refer to Installation Instructions. NOTES: 5. If unit sections are field split, 8 threaded support rods are required. -
Page 14: Guide Specifications
Size Range: 2 to 5 Tons, Nominal mounting. Carrier Model Number: 50AH 6. Unit shall have an integral hanging bracket requiring only 4 threaded rods (8 if unit is split) Part 1 — General run to the top flange of the unit for hanging, 1.01 SYSTEM DESCRIPTION... - Page 15 * 5. Head Pressure Control Package: tance in amending the specifications, your local Allows unit to mechanically cool down to 0° F Carrier Sales Office should be contacted. ambient temperature. Package shall include * 1. Electric Heat Module: damper operating device and all necessary a.
- Page 16 Carrier Corporation • Syracuse, New York 13221 9-02 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Book 1 4 Book 1 Pg 16 Catalog No. 525-00039 Printed in U.S.A.
