www.nordictrack.com
Model No. NTL15809.1
Serial No.
Write the serial number in the space
above for reference.
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
1-888-825-2588
CALL TOLL-FREE:
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.nordictrackservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
Serial
Number
Decal

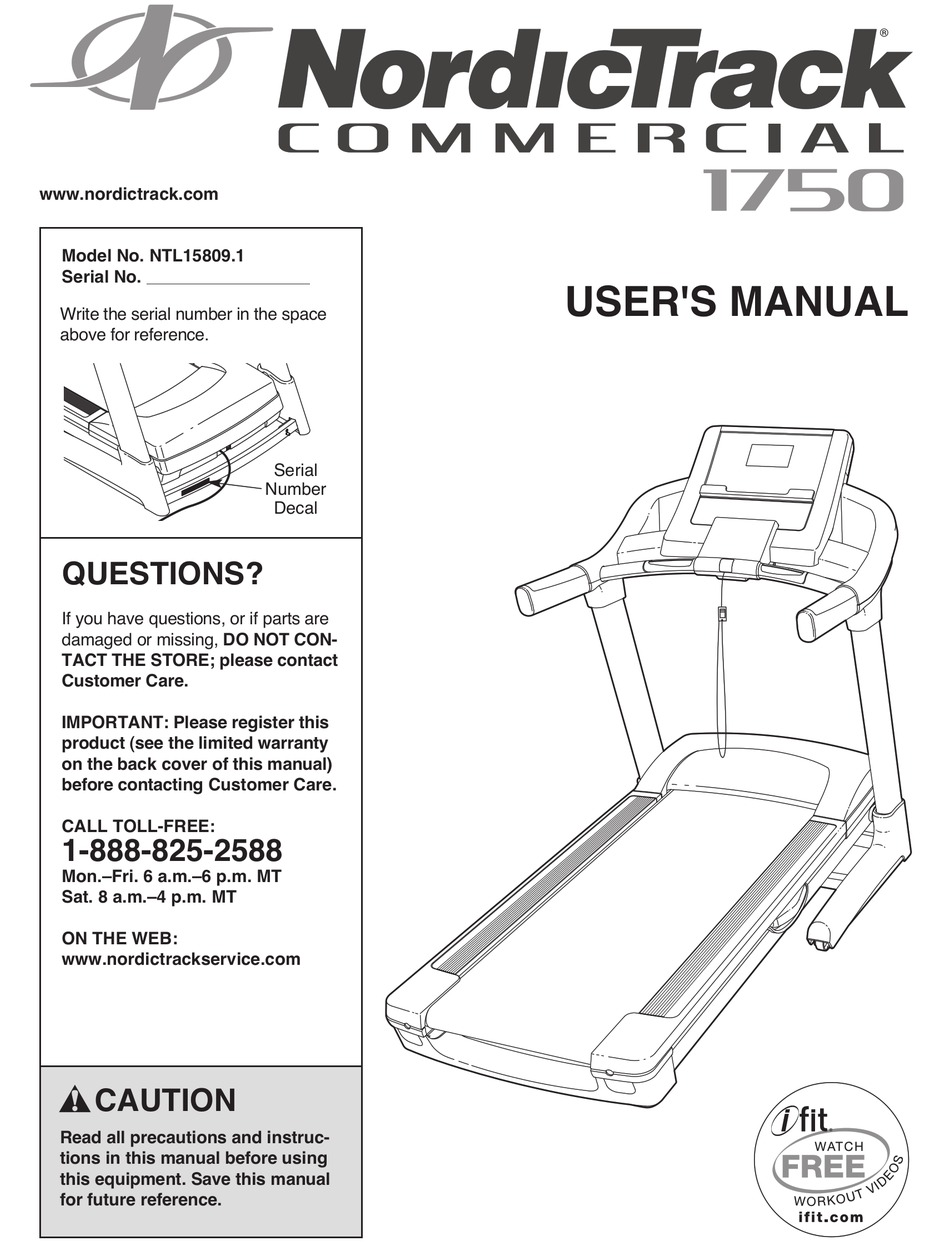

USER'S MANUAL
Advertisement
Table of Contents
Related Manuals for NordicTrack NTL15809.1
Summary of Contents for NordicTrack NTL15809.1
- Page 1 USER'S MANUAL Model No. NTL15809.1 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CON- TACT THE STORE; please contact Customer Care.
-
Page 2: Table Of Contents
Apply the decal in the location shown. Note: The decals may not be shown at actual size. NordicTrack is a registered trademark of ICON IP, Inc. -
Page 3: Important Precautions
11. To purchase a surge suppressor, 4. Place the treadmill on a level surface, with at see your local NordicTrack dealer or call the least 8 ft. (2.4 m) of clearance behind it and 2 telephone number on the front cover of this ft. - Page 4 18. The treadmill is capable of high speeds. 23. Inspect and properly tighten all parts of the Adjust the speed in small increments to treadmill regularly. avoid sudden jumps in speed. 24. Never insert or drop any object into any 19.
-
Page 5: Before You Begin
BEFORE YOU BEGIN Thank you for selecting the revolutionary NordicTrack ing this manual, please see the front cover of this man- ® COMMERCIAL 1750 treadmill. The COMMERCIAL ual. To help us assist you, note the product model 1750 treadmill offers an impressive selection of fea- number and serial number before contacting us. -
Page 6: Assembly
ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of the walking belt or the shipping carton. - Page 7 2. Identify the Right Upright (92), which is marked with a “Right” sticker. Wire Have a second person hold the Right Upright (92) near the Right Base Cover (102). See the inset drawing. Tie the wire tie in the lower end of the Right Upright securely around the end of the Upright Wire (93).
- Page 8 4. Have a second person hold the console assem- bly near the Uprights (91, 92). Console Connect the Upright Wire (93) to the Console Assembly Wire (114). See the inset drawing. The con- nectors should slide together easily and snap into place. If they do not, turn one con- nector and try again.
- Page 9 6. Partially tighten three 3/8" x 1 1/4" Patch Bolts (2) with three 3/8" Star Washers (6) into the Right Upright (92); do not fully tighten the Patch Bolts yet. Repeat this step with the Left Upright (91). Firmly tighten all six 3/8" x 1 1/4" Patch Bolts (2).
- Page 10 8. Raise the Frame (67) to the position shown. Have a second person hold the Frame until this step is completed. Orient the Storage Latch (87) so that the large barrel and the latch knob are in the positions shown. Remove the tie from the upper end of the Storage Latch (87).
-
Page 11: Operation And Adjustment
OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT that is properly installed and grounded in accor- dance with all local codes and ordinances. IMPORTANT: The treadmill is not compatible with Your treadmill features a walking belt coated with high- performance lubricant. IMPORTANT: Never apply sil- GFCI-equipped outlets. - Page 12 CONSOLE DIAGRAM Audio Jack FEATURES OF THE CONSOLE You can also listen to your favorite workout music or audio books with the consoleʼs premium stereo sound The treadmill console offers an impressive array of system while you get in shape. features designed to make your workouts more effec- To turn on the power, see page 13.
- Page 13 HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power. If you do not See HOW TO TURN ON THE POWER at the left.
- Page 14 If you press one of the numbered speed buttons, • The distance that you have walked or run the walking belt will gradually change speed until it reaches the selected speed setting. To select a • The incline level of the treadmill speed setting that includes a decimal—such as 3.5 mph—press two numbered buttons in succession.
- Page 15 To measure your heart rate, stand on the walking To reset the console, press the iFit Menu button in platform and hold the metal contacts on the the upper right corner of the screen. To pause the workout, press the Pause button. To continue the handrails for approximately ten seconds—avoid moving your hands.
- Page 16 HOW TO USE A SET-A-GOAL WORKOUT 4. Start the workout. 1. Insert the key into the console. Press the Start Workout button to start the work- out. A moment after you press the button, the walk- See step 1 on page 13. ing belt will begin to move.
- Page 17 HOW TO USE A CALORIE BURN WORKOUT OR also show the distance of your workout and the AN ALL-TERRAIN TRAILS WORKOUT number of vertical feet you will climb. In addition, the screen will show a topographic map of the trail. 1.
- Page 18 workout. The actual number of calories that The workout will continue in this way until the last you burn will depend on your weight. In addi- segment ends. The walking belt will then slow to a tion, if you manually change the speed or in- stop, and a workout summary will appear on the cline of the treadmill during the workout, the screen.
- Page 19 HOW TO USE THE IFIT LIVE MODE Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- The iFit Live mode enables the treadmill to communi- ence in a residential installation. This equipment gen- cate with your wireless network.
- Page 20 HOW TO USE THE STEREO SOUND SYSTEM You must have your own wireless network and an 802.11b router with SSID broadcast enabled (hid- To play music or audio books through the consoleʼs den networks are not supported). speakers, you must connect your MP3 player, CD If your wireless network is unencrypted and player, or other personal audio player to the console.
- Page 21 To use a static IP address, press the Use Static to the letter keyboard, press the ABC button. To IPs button. Enter the IP address, netmask, gate- capitalize a character, press the button with an up- way IP address, and at least one DNS. Press the ward-facing arrow.
- Page 22 HOW TO USE THE MAINTENANCE MODE cline system. Press the Begin button to calibrate the incline or the Cancel button to return to the The console features a maintenance mode that allows maintenance mode. When the incline system is you to calibrate the incline and speed of the treadmill, calibrated, press the Back button.
- Page 23 5. Calibrate the screen. 8. View technical information. If the screen is not properly calibrated, it will be dif- Press the Technical Info button to view the total ficult to press the buttons on the screen. To cali- number of hours that the treadmill has been used brate the screen, press the Calibrate Screen button and the total number of miles that the walking belt and then press the Begin button.
-
Page 24: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to the lowest position before you fold the treadmill. left. -
Page 25: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the problem that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a. - Page 26 Lower the treadmill (see HOW TO LOWER THE TREADMILL FOR USE on page 24). Remove the four indicated #8 x 3/4" Screws (1), and remove the Motor Hood (75). Next, locate the Reed Switch (53) and the Magnet (58) on the left side of the Pulley (59). Turn the Pulley View until the Magnet is aligned with the Reed Switch.
- Page 27 PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller bolt clockwise 1/2 of a turn;...
-
Page 28: Exercise Guidelines
EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning any time. During the first few minutes of exercise, your exercise program, consult your physician. body uses carbohydrate calories for energy. Only after This is especially important for persons over the first few minutes of exercise does your body begin age 35 or persons with pre-existing health... -
Page 29: Part List
PART LIST—Model No. NTL15809.1 R0610A To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual. Key No. Qty. Description Key No. Qty. Description #8 x 3/4" Screw Belt Guide 3/8" x 1 1/4" Patch Bolt Isolator 3/8"... - Page 30 Key No. Qty. Description Key No. Qty. Description Wheel Handrail Cap Right Base Cover Handrail Base Handrail Grip Filter Console Clamp Base Foot Audio Wire Console Base Console Wire Console Ground Wire – Userʼs Manual Console Plate Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual.
-
Page 31: Exploded Drawing
EXPLODED DRAWING A—Model No. NTL15809.1 R0610A... - Page 32 EXPLODED DRAWING B—Model No. NTL15809.1 R0610A...
- Page 33 EXPLODED DRAWING C—Model No. NTL15809.1 R0610A...
- Page 34 EXPLODED DRAWING D—Model No. NTL15809.1 R0610A...
- Page 35 EXPLODED DRAWING E—Model No. NTL15809.1 R0610A...
-
Page 36: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
