Samsung SVR-1670 Quick Manual

Prior to using the Product
This is a quick guide covering some of the
more frequently used features only. For
more accurate and detailed information
about the product, please refer to the User's
Manual.

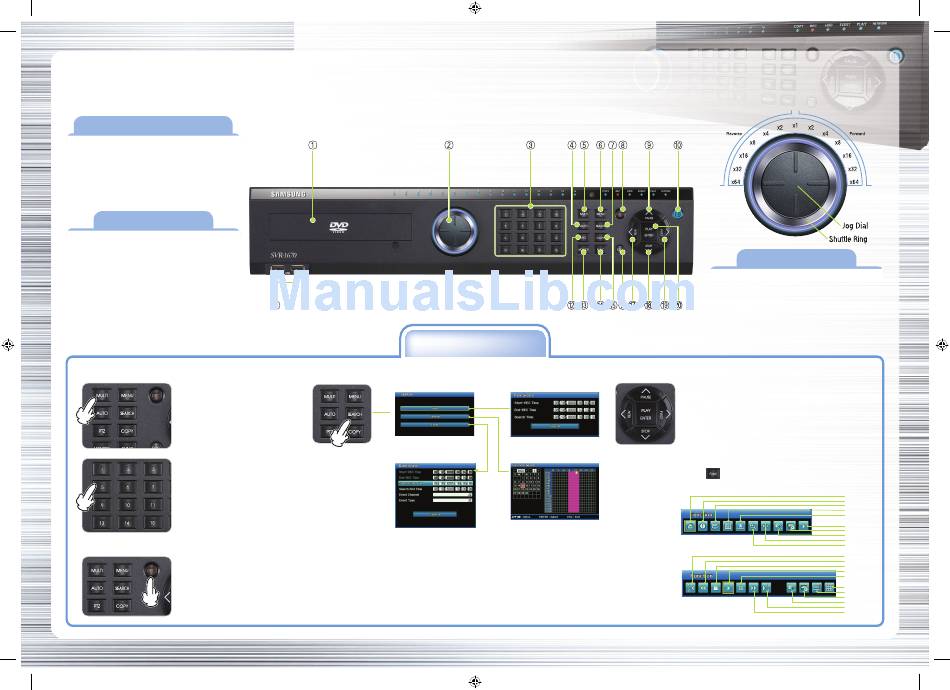

Buttons
① DVD ② Jog/Shuttle ③ Select Channel
④ Auto Sequence ⑤ Multi Screen ⑥ Menu
⑦ Search ⑧ Save ⑨ UP/PAUSE
⑩ Power ⑪ USB ⑫ PTZ
⑬ Monitor(SPOT) ⑭ Select Function ⑮ COPY
 ESC  LEFT/REW  DOWN/STOP
 RIGHT/FWD  ENTER/PLAY
1. Live Monitoring
Multi Screen
With each pressing of the Multi
Screen button, the screen splits into
4, 9, 10 or 16 screens respectively.
Single Screen
Press a channel button to see the
respective channel only on the
screen.
2. Recording
Press the REC button to start or
stop recording. REC lamp located
on the top of the REC button will
display recording status.
(Caution: the REC button function interacts
with the Scheduled Recording
settings.)
Z6806-1088-01A_SVR-1670_QG_ENGLISH_0429.indd 1
S A M S U N G D I G I T A L
Quick Guide To Using SVR-1670

Product Features

3. Search/Playback Recordings
▶
Select Search Mode
Search button
Enter Date/Time & Select Event
Event search:
1. Press the Search button. 2. Select either the Time, Calendar, Event Search.
3. Enter Date/Time or select an Calendar/date/time. 4. Select the Search Button.
www.
samsungsecurity
R E C O R D E R Q U I C K G U I D E
4. Playback Buttons
▶
Enter Date/Time
Time search:
5. Hot Function(Hot Key) Menu
Press the Function button (
▶
Function icons.
F unction Key on Live
●
Select Date/Time Mode
Calendar search:
F unction Key on Play
●
Mode
.com
using Jog/shuttle
Shuttle Ring
Use it to control playback direction (forward/reverse) or
speed (X2, X4, X8, X16, X32, X64).
Jog Dial
Use it for frame-by-frame search of video recordings.
•
PAUSE : Pause playback
•
REW : Rewind playback & Rewind speed
(X1/2, X1, X2, X4, X8, X16, X32, X64)
•
PLAY : Start playback
•
FWD : Foward playback & Foward speed
(X1/2, X1, X2, X4, X8, X16, X32, X64)
•
STOP : Stop playback
) or right-click the mouse to use Hot
MAIN MENU
SYSTEM INFO
SPOT
DISPLAY
SEQUENCE
PLAY
COPY
SEARCH
PTZ
D-ZOOM
1/2 REW
REW
STOP
PLAY
PAUSE
DISPLAY
SPOT
COPY
SEARCH
1/2 FWD
FWD
