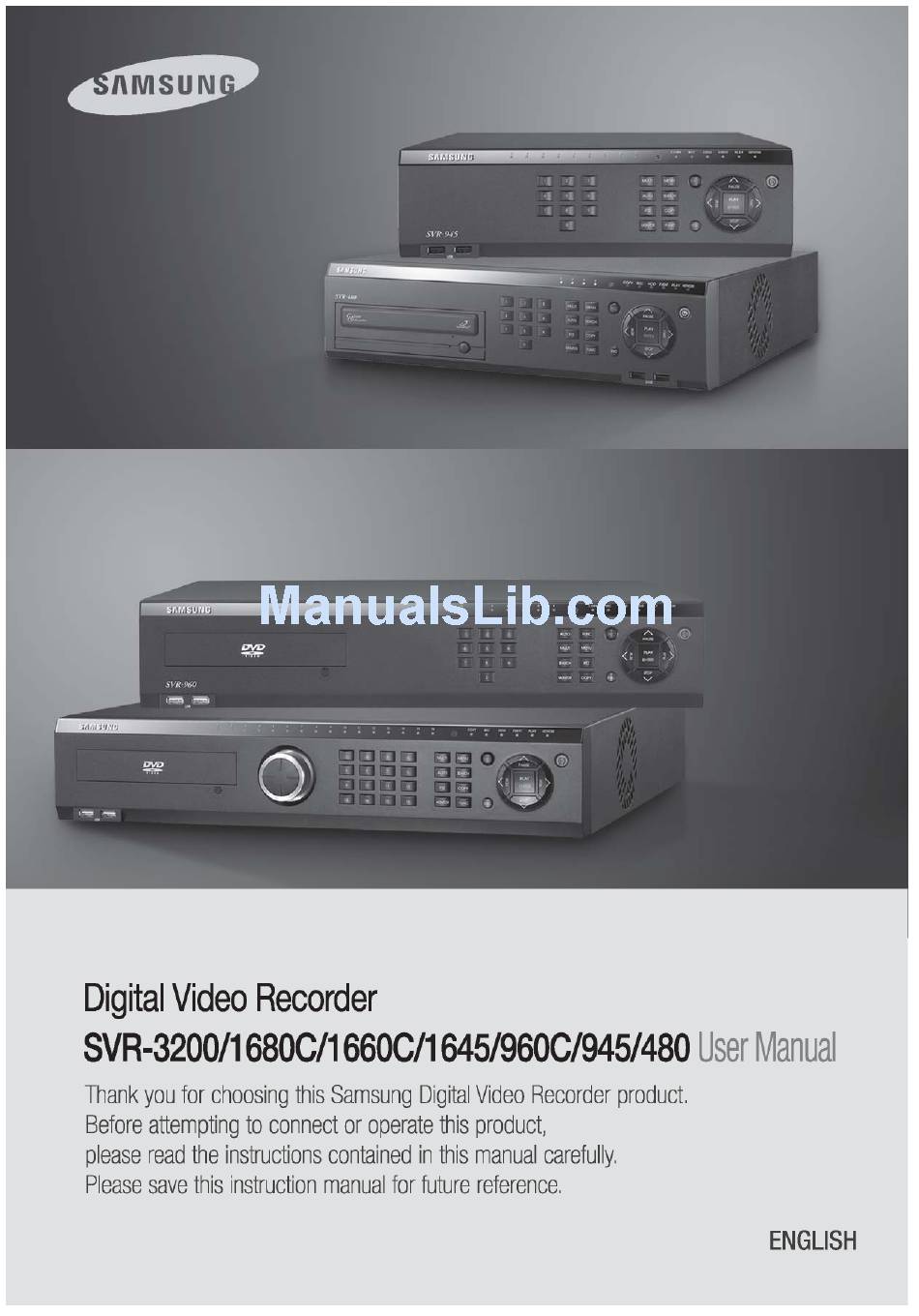

- Page 1 User Manual...
-
Page 2: Compatible Hdd List
Sony(Exhortation 16X) Sony(Exhortation 16X) Specification Item Description Display SVR-3200 : 32 composite video 0.5–2 Vpp, 75 ohm automatic termination SVR-1680C/1660C/1645 : 16 composite video 0.5–2 Vpp, 75 ohm automatic termination Inputs Video SVR-960C/945 : 9 composite video 0.5–2 Vpp, 75 ohm automatic termination SVR-480 : 4 composite video 0.5–2 Vpp, 75 ohm... - Page 3 704x480 NTSC, 704x576 PAL SVR-3200/1680C/1660C/1645 : 1/4/9/10/16 Multi Screen SVR-960C/945 : 1/4/9 SVR-480 : 1/4 Performance Compression MPEG-4 Recording SVR-3200 : 480fps@704x480, 960Cfps@704x240, Record Rate/NTSC 960Cfps@352x240 SVR-1680C : 480fps@704x480, 480fps@704x240, 480fps@352 x 240 SVR-1660C/1645 : 120fps@704x480, 240fps@704x240, 480fps@352x240 SVR-960C/945 : 120fps@704x480, 240fps@704x240, 270fps@352x240...
- Page 4 Maximum Capacity Storage SVR-1645/960C/945/480 : 8 TB SVR-3200/1680C/1660C : 4 HDD Internal HDD SVR-1645/960C/945/480 : 2 HDD SVR-3200/1680C/1660C : External eSATA 2 port External HDD SVR-1645/960C/945/480 : External eSATA 1 port DVD Writer (Back-up) DVD-R / CD-R USB (Back-up) 2 External USB Ports(USB 2.0)
- Page 5 SVR-1645/960C/945/480 : RS485 Via coax cable (SVR-1680C/1660C/960C) PTZ Keyboard RS485, max. signal voltage ±12 V 2 USB 2.0 ports SVR-3200/1680C/1660C : External eSATA 2 port eSATA SVR-1645/960C/945/480 : External eSATA 1 port Application Support ATM/POS, Mouse, Remote Controller Samsung Techwin, Pelco D, Pelco P, Pelco...
- Page 6 User Manual Portuguese, Russian, Turkish, Japanese, Czech, Serbian, Swedish, Rumanian, Danish, Chinese, Korean, Taiwanese...
- Page 7 User Manual Dimensions SVR-3200, SVR-1680C, SVR-1660C, SVR-1645...
- Page 8 User Manual SVR-960C...
- Page 9 User Manual SVR-945...
- Page 10 User Manual SVR-480...
