113ANC
Legacyt Line Air Conditioner for Coastal Applications
with Puronr Refrigerant
the environmentally sound refrigerant
Bryant's Air Conditioners with Puronr refrigerant provide a
collection of features unmatched by any other family of
equipment. The 113A has been designed utilizing Bryant's Puron
refrigerant. The environmentally sound refrigerant allows you to
make a responsible decision in the protection of the earth's ozone
layer.
As an Energy Star r Partner, Bryant Heating & Cooling has
determined that this product meets the Energy Starr guidelines
for energy efficiency. Refer to AHRI ratings for system
combinations that meet Energy Starr guidelines.
NOTE: Ratings contained in this document are subject to
change at any time. Always refer to the AHRI directory
(www.ahridirectory.org) for the most up- -to- -date ratings
information.

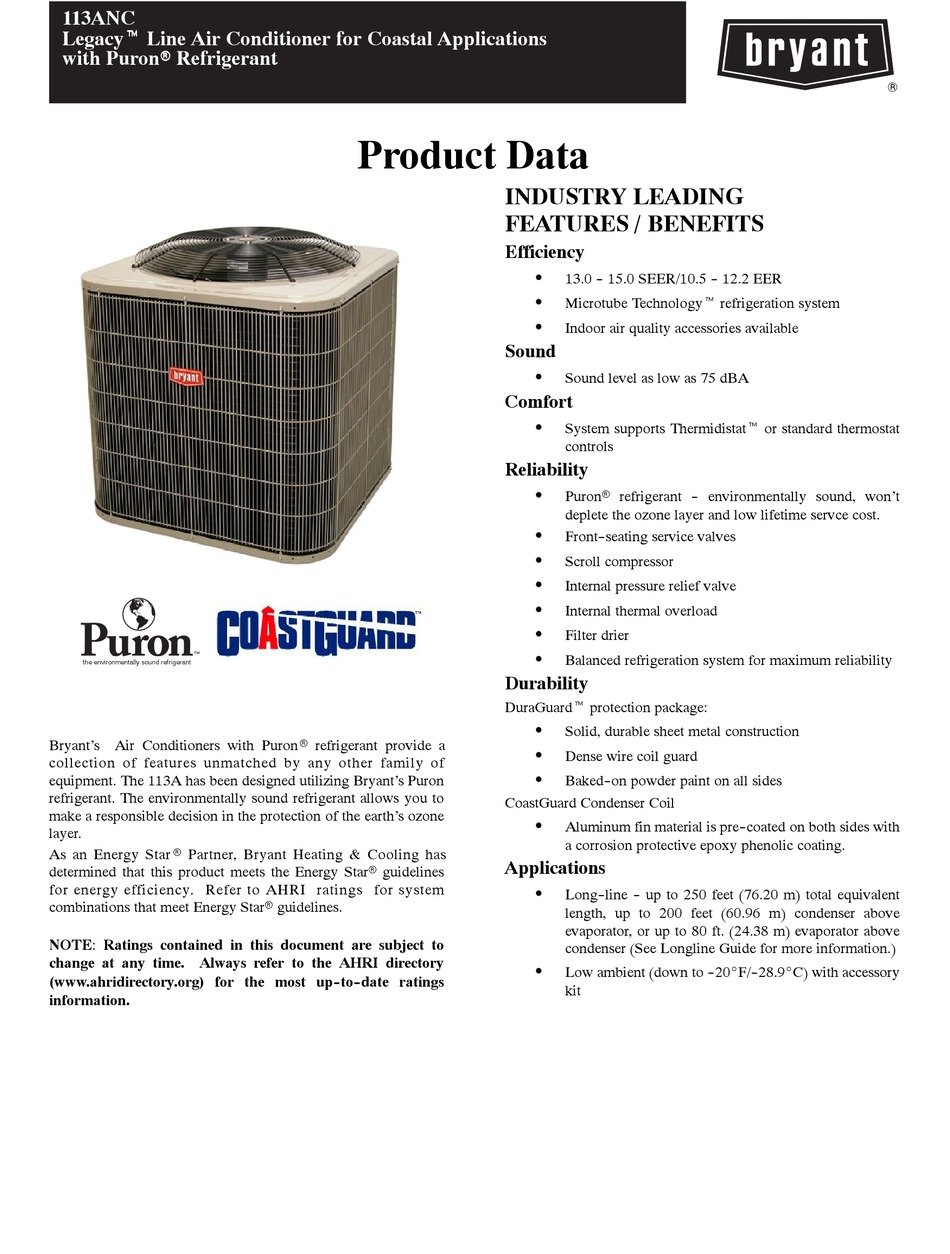

Product Data
INDUSTRY LEADING
FEATURES / BENEFITS
Efficiency
S
S
S
Sound
S
Comfort
S
Reliability
S
S
S
S
S
S
S
Durability
DuraGuardt protection package:
S
S
S
CoastGuard Condenser Coil
S
Applications
S
S
13.0 - - 15.0 SEER/10.5 - - 12.2 EER
Microtube Technologyt refrigeration system
Indoor air quality accessories available
Sound level as low as 75 dBA
System supports Thermidistatt or standard thermostat
controls
Puronr refrigerant - - environmentally sound, won't
deplete the ozone layer and low lifetime servce cost.
Front- -seating service valves
Scroll compressor
Internal pressure relief valve
Internal thermal overload
Filter drier
Balanced refrigeration system for maximum reliability
Solid, durable sheet metal construction
Dense wire coil guard
Baked- -on powder paint on all sides
Aluminum fin material is pre- -coated on both sides with
a corrosion protective epoxy phenolic coating.
Long- -line - - up to 250 feet (76.20 m) total equivalent
length, up to 200 feet (60.96 m) condenser above
evaporator, or up to 80 ft. (24.38 m) evaporator above
condenser (See Longline Guide for more information.)
Low ambient (down to - -20_F/- -28.9_C) with accessory
kit
Advertisement
Table of Contents
Related Manuals for Bryant Legacy 113ANC Series
Summary of Contents for Bryant Legacy 113ANC Series
-
Page 1: Product Data
Aluminum fin material is pre- -coated on both sides with layer. a corrosion protective epoxy phenolic coating. As an Energy Star r Partner, Bryant Heating & Cooling has Applications determined that this product meets the Energy Starr guidelines for energy efficiency. Refer to AHRI ratings for system Long- -line - - up to 250 feet (76.20 m) total equivalent... -
Page 2: Standard Features
MODEL NUMBER NOMENCLATURE Product Tier SEER Major Voltage Variations Cooling Capacity Open Open Open Minor- Family Series Series 0=Not 0=Not 0=Not 1=AC 3=13 SEER A=Puron N= 208 ---230 ---1 C = Coastal Defined Original Legacy Defined Defined Series the environmentally sound refrigerant Use of the AHRI Certified TM Mark indicates a manufacturer’s... -
Page 3: Physical Data
PHYSICAL DATA UNIT SIZE SERIES 018---B 024---B 030---B 036---B 042---B 048---B 060---C Operating Weight lb (kg) (58.1) (60.3) (70.3) (75.7) (85.3) (89.4) (103.0) Shipping Weight lb (kg) (72.1) (75.7) (87.5) (93.0) (102.1) (106.6) (121.1) Compressor Type Scroll REFRIGERANT Puron (R--- 410A) Control TXV (Puron Hard Shutoff) Charge lb (kg) -
Page 4: Accessory Thermostats
ACCESSORY THERMOSTATS PART NUMBER PROGRAM ELECTRIC HEAT PUMP HEAT COOL TC ---PAC01 5 ---2 Day √ √ TC ---NAC01 √ √ TCSNAC01 √ √ THERMOSTAT ACCESSORIES PART NUMBER DESCRIPTION THERMOSTATS USED WITH TSTATXXCNV10‡ Thermostat Conversion Kit (4 to 5 wire) --- 10 pack All Carrier branded thermostats TX ---LBP01 Large Decorative Backplate... -
Page 5: Accessory Usage Guideline
ACCESSORY USAGE GUIDELINE REQUIRED FOR REQUIRED FOR LOW --- AMBIENT REQUIRED FOR LONG LINE SEA COAST COOLING APPLICATIONS APPLICATIONS* ACCESSORY APPLICATIONS (Below 55°F/12.8_C) (Over 80 ft./24.38 m) (Within 2 miles/3.22 km) Ball Bearing Fan Motor Yes{ Compressor Start Assist Capacitor and Relay Crankcase Heater Evaporator Freeze Thermostat Hard Shut--- Off TXV... - Page 6 Accessory Description and Usage (Listed Alphabetically) (Continued) 10. Outdoor Air Temperature Sensor 14. Time- -Delay Relay Designed for use with Bryant Thermostats listed in this An SPST delay relay which briefly continues operation of indoor publication. This device enables the thermostat to display the blower motor to provide additional cooling after the compressor outdoor temperature.
-
Page 7: Electrical Data
ELECTRICAL DATA MIN WIRE FUSE** UNIT SIZE --- OPER VOLTS* COMPR WIRE LENGTH LENGTH SIZE† V/PH or CKT VOLTAGE, SIZE† ft. (m)‡ ft. (m)‡ SERIES 60° C 75° C 60° C 75° C AMPS 018--- B 48.0 11.7 67 (20.4) 64 (19.5) 024--- B 58.3... - Page 10 Wall...
-
Page 11: Combination Ratings
COMBINATION RATINGS AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4765908 113ANC018---B †CAP**1814A** 17,700 11.0 13.0 3040598 113ANC018---B †CAP**1814A**+TDR 17,700 11.0 13.0 3040600 113ANC018---B CAP**1814A** 313*AV024045 17,800 12.2 14.5 3040599 113ANC018---B CAP**1814A** 315(A,J)AV036070 17,500 12.0 14.0 4734042 113ANC018---B CAP**1814A** 925*A30040E14***... - Page 12 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4734051 113ANC018---B CNPV*2414A** 925*A30040E14*** 17,700 11.8 14.2 4765891 113ANC018---B CNPV*2414A** 986*A30040V14*** 18,000 12.0 14.5 3040610 113ANC018---B CNPV*2414A**+TDR 18,000 11.2 13.2 3040615 113ANC018---B CNPV*2417A** 315(A,J)AV048090 17,900 12.2 14.5 3613602 113ANC018---B...
- Page 13 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3099109 113ANC024---B CAP**2417A** 353(A,B)AV036080 22,600 12.0 14.5 3099107 113ANC024---B CAP**2417A** 353AAV036040 22,600 12.0 14.5 3040643 113ANC024---B CAP**2417A** 355(A,C)AV042060 22,800 12.0 14.0 3808328 113ANC024---B CAP**2417A** 355BAV042060 22,800 12.0 14.0 4130264...
- Page 14 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4734086 113ANC024---B CNPH*2417A** 987*A42080V17*** 22,200 11.8 14.2 4734087 113ANC024---B CNPH*2417A** 987*A60100V21*** 22,600 11.8 14.2 4734088 113ANC024---B CNPH*2417A** 987*A66120V24*** 22,600 11.8 14.2 4255273 113ANC024---B CNPH*2417A** OVLAAB036098 22,600 11.7 14.0 4130285...
- Page 15 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4255275 113ANC024---B CNPH*3117A** OVLAAB036098 23,400 12.0 14.5 4130293 113ANC024---B CNPH*3117A** OVMAAB036098 23,400 12.0 14.5 4130294 113ANC024---B CNPH*3117A** OVMAAB042112 23,200 12.0 14.5 3689919 113ANC024---B CNPH*3117A**+TDR 23,000 11.0 13.0 3040653 113ANC024---B...
- Page 16 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4734081 113ANC024---B CNPV*3117A** 987*A42060V17*** 23,000 12.0 14.5 4734082 113ANC024---B CNPV*3117A** 987*A42080V17*** 23,000 12.0 14.5 4255272 113ANC024---B CNPV*3117A** OVLAAB036098 23,400 12.0 14.5 4130281 113ANC024---B CNPV*3117A** OVMAAB036098 23,400 12.0 14.5 4130282...
- Page 17 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4255269 113ANC024---B CSPH*3012A** OVLAAB036098 23,000 11.7 14.0 4130301 113ANC024---B CSPH*3012A** OVMAAB036098 23,000 11.7 14.0 4130302 113ANC024---B CSPH*3012A** OVMAAB042112 22,800 12.0 14.5 3040703 113ANC024---B CSPH*3012A**+TDR 23,000 10.7 13.0 3867308 113ANC024---B...
- Page 18 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4734128 113ANC030---B CAP**3619A** 987*A42060V17*** 28,600 11.8 14.2 4734129 113ANC030---B CAP**3619A** 987*A42080V17*** 28,800 11.8 14.2 4734130 113ANC030---B CAP**3619A** 987*A60100V21*** 29,000 12.0 14.5 3689877 113ANC030---B CAP**3619A**+TDR 29,200 11.0 13.0 3040742 113ANC030---B...
- Page 19 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3689979 113ANC030---B CNPH*3117A** 353(A,B)AV036060 29,400 12.0 14.5 3689980 113ANC030---B CNPH*3117A** 353(A,B)AV036080 29,400 12.0 14.5 3689981 113ANC030---B CNPH*3117A** 353(A,B)AV048080 29,400 12.0 14.5 3689978 113ANC030---B CNPH*3117A** 353AAV036040 29,400 12.0 14.5 3689886...
- Page 20 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3613640 113ANC030---B CNPV*3017A** 353(A,B)AV036040 29,000 12.0 14.5 3099140 113ANC030---B CNPV*3017A** 353(A,B)AV036060 29,000 12.0 14.5 3099141 113ANC030---B CNPV*3017A** 353(A,B)AV036080 29,000 12.0 14.5 3099142 113ANC030---B CNPV*3017A** 353(A,B)AV048080 29,000 12.0 14.0 3099139...
- Page 21 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3751097 113ANC030---B CNPV*3621A** 355BAV060100 28,600 12.0 14.0 4130370 113ANC030---B CNPV*3621A** 359BAV036040 28,800 11.5 13.5 4130371 113ANC030---B CNPV*3621A** 359BAV036060 28,800 11.5 13.5 4130372 113ANC030---B CNPV*3621A** 359BAV060080 29,000 12.0 14.0 4734148...
- Page 22 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4130358 113ANC030---B CSPH*3012A** OVLAAB048112 29,000 11.7 14.0 4130356 113ANC030---B CSPH*3012A** OVMAAB036098 28,800 11.5 13.5 4130357 113ANC030---B CSPH*3012A** OVMAAB042112 29,000 12.0 14.0 3040788 113ANC030---B CSPH*3012A**+TDR 29,000 11.0 13.0 3040814 113ANC030---B...
- Page 23 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3099165 113ANC036---B CAP**3617A** 353(A,B)AV036080 34,000 11.7 14.0 3099166 113ANC036---B CAP**3617A** 353(A,B)AV048080 34,400 11.7 14.0 3099163 113ANC036---B CAP**3617A** 353AAV036040 34,400 11.7 14.0 3040832 113ANC036---B CAP**3617A** 355(A,C)AV042060 34,200 11.7 14.0 3808335...
- Page 24 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3689876 113ANC036---B CAP**4823A** 359BAV060080 35,200 11.5 14.0 4774146 113ANC036---B CAP**4823A** 986*A48100V21*** 35,000 11.8 14.2 3689875 113ANC036---B CAP**4823A**+TDR 35,200 11.0 13.0 4774117 113ANC036---B CAP**4824A** 986*A48100V21*** 35,200 11.8 14.2 4773633 113ANC036---B...
- Page 25 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3689973 113ANC036---B CNPH*4321A** 353(A,B)AV060100 35,200 12.0 14.5 3689969 113ANC036---B CNPH*4321A** 353AAV036040 35,200 12.0 14.5 3689849 113ANC036---B CNPH*4321A** 355(A,C)AV042060 35,200 12.0 14.5 3689850 113ANC036---B CNPH*4321A** 355(A,C)AV042080 35,200 12.0 14.5 3689851...
- Page 26 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4130452 113ANC036---B CNPV*3717A** 359BAV036040 35,000 11.0 13.5 4130453 113ANC036---B CNPV*3717A** 359BAV036060 35,400 11.5 14.0 4130399 113ANC036---B CNPV*3717A** 368RAN036105 35,400 11.7 14.0 4130398 113ANC036---B CNPV*3717A** 374RAN036105 34,800 11.7 14.0 4734196...
- Page 27 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3099194 113ANC036---B CSPH*3612A** 353(A,B)AV036060 34,400 11.7 14.0 3099195 113ANC036---B CSPH*3612A** 353(A,B)AV036080 34,400 11.7 14.0 3099196 113ANC036---B CSPH*3612A** 353(A,B)AV048080 34,400 11.7 14.0 3099197 113ANC036---B CSPH*3612A** 353(A,B)AV060100 34,400 11.7 14.0 3099193...
- Page 28 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3752154 113ANC036---B FX4DN(B,F)043 35,000 11.5 14.0 3752155 113ANC036---B FX4DN(B,F)049 35,400 12.0 14.5 3867776 113ANC036---B FY5BNF036 34,000 11.0 13.0 4208578 113ANC036---B FY5BNF036+TXV 34,000 11.0 13.5 3867778 113ANC036---B FY5BNF042 34,000 11.0...
- Page 29 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4734266 113ANC042---B CAP**4821A** 925*A42060E17*** 40,500 11.1 13.5 4734267 113ANC042---B CAP**4821A** 925*A48080E17*** 41,000 11.1 13.5 4734268 113ANC042---B CAP**4821A** 925*A48100E21*** 40,500 11.3 13.7 4766046 113ANC042---B CAP**4821A** 986*A42060V17*** 41,000 11.1 13.5 4766057...
- Page 30 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4130487 113ANC042---B CNPH*4221A** OVMAAB042112 40,000 10.7 13.2 3043331 113ANC042---B CNPH*4221A**+TDR 40,500 10.5 13.0 3689820 113ANC042---B CNPH*4321A** 313*AV048070 41,500 11.0 13.5 3689821 113ANC042---B CNPH*4321A** 313*AV048090 41,500 11.5 14.0 3689822 113ANC042---B...
- Page 31 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4766054 113ANC042---B CNPH*4821A** 986*A42060V17*** 41,000 11.2 13.5 4766065 113ANC042---B CNPH*4821A** 986*A48080V17*** 41,000 11.4 13.7 4766079 113ANC042---B CNPH*4821A** 986*A48100V21*** 41,500 11.4 14.0 4766089 113ANC042---B CNPH*4821A** 986*A66120V24*** 41,500 11.7 14.2 4734339...
- Page 32 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3043324 113ANC042---B CNPV*4821A** 313*AV060110 41,500 11.5 14.0 3043322 113ANC042---B CNPV*4821A** 315(A,J)AV060110 41,000 11.5 13.5 3099220 113ANC042---B CNPV*4821A** 353(A,B)AV060100 40,500 11.0 14.0 3043319 113ANC042---B CNPV*4821A** 355(A,C)AV042080 41,000 11.2 13.5 3043320...
- Page 33 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4734343 113ANC042---B CSPH*4212A** 987*A42060V17*** 40,500 11.1 13.5 4734344 113ANC042---B CSPH*4212A** 987*A42080V17*** 40,500 11.3 13.7 4734345 113ANC042---B CSPH*4212A** 987*A60100V21*** 41,000 11.4 13.7 4734346 113ANC042---B CSPH*4212A** 987*A66120V24*** 41,000 11.5 14.0 4130503...
- Page 34 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3043405 113ANC048---B CAP**4817A**+TDR 45,000 10.7 13.0 3043410 113ANC048---B CAP**4821A** 313*AV048090 46,000 11.2 13.5 3043411 113ANC048---B CAP**4821A** 313*AV060110 46,000 11.5 13.5 3043409 113ANC048---B CAP**4821A** 315(A,J)AV060110 46,000 11.2 13.5 3099247 113ANC048---B...
- Page 35 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3043448 113ANC048---B CNPH*4821A** 315(A,J)AV048090 46,000 11.2 13.5 3043449 113ANC048---B CNPH*4821A** 315(A,J)AV060110 46,000 11.2 13.5 3043450 113ANC048---B CNPH*4821A** 315(A,J)AV066135 46,000 11.5 13.5 3043451 113ANC048---B CNPH*4821A** 315(A,J)AV066155 46,000 11.7 13.5 3099254...
- Page 36 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 4766110 113ANC048---B CNPH*6124A** 986*A48100V21*** 46,500 11.4 13.7 4766122 113ANC048---B CNPH*6124A** 986*A66120V24*** 47,000 11.5 14.0 4734403 113ANC048---B CNPH*6124A** 987*A60100V21*** 46,500 11.4 13.7 4734404 113ANC048---B CNPH*6124A** 987*A66120V24*** 46,500 11.5 14.0 4130538...
- Page 37 COMBINATION RATINGS (CONT.) AHRI Ref. No. Model Number Indoor Model Furnace Model Capacity SEER 3043477 113ANC048---B CSPH*4812A** 313*AV060135 46,000 11.5 13.5 3043471 113ANC048---B CSPH*4812A** 315(A,J)AV048090 46,000 11.2 13.2 3043472 113ANC048---B CSPH*4812A** 315(A,J)AV060110 46,000 11.2 13.5 3043473 113ANC048---B CSPH*4812A** 315(A,J)AV066135 46,000 11.5 13.5 3043474...
- Page 38 1. In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in performance. Use either the accessory Time---Delay Relay KAATD0101TDR or a furnace equipped with TDR. Most Bryant furnaces are equipped with TDR.
-
Page 60: Condenser Only Ratings
CONDENSER ONLY RATINGS* CONDENSER ENTERING AIR TEMPERATURES ° F (° C) ° F (° C) 55 (12.78) 65 (18.33) 75 (23.89) 85 (29.44) 95 (35.0) 105 (40.56) 115 (46.11) 125 (51.67) 113ANC018--- B 16.90 15.90 15.00 14.00 12.90 11.90 10.80 9.70 68.50 77.80... - Page 61 CONDENSER ONLY RATINGS* (CONT.) CONDENSER ENTERING AIR TEMPERATURES ° F (° C) ° F (° C) 55 (12.78) 65 (18.33) 75 (23.89) 85 (29.44) 95 (35.0) 105 (40.56) 115 (46.11) 125 (51.67) 113ANC042--- B 38.30 36.20 34.00 31.90 29.80 27.70 25.50 23.20 75.60...
- Page 62 — Refer to section of this literature identifying accessories and descriptions for specific features and available enhancements. E2011 Bryant Heating & Cooling Systems D 7310 W. Morris St. D Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 10/11 Catalog No. PDS113ANC ---04 Replaces: PDS113ANC--- 03 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
