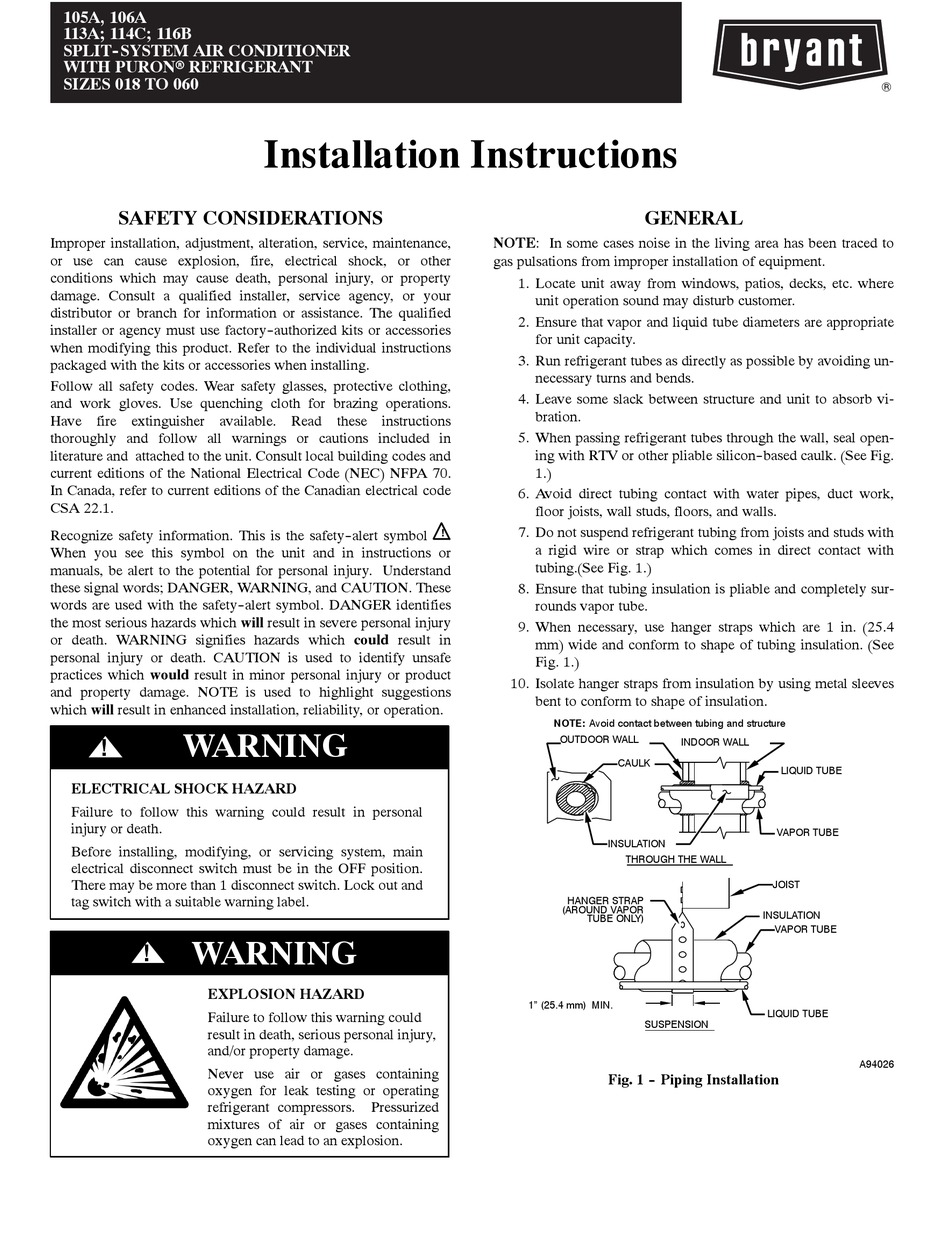

105A, 106A
113A; 114C; 116B
SPLIT- - SYSTEM AIR CONDITIONER
WITH PURONr REFRIGERANT
SIZES 018 TO 060

SAFETY CONSIDERATIONS

Improper installation, adjustment, alteration, service, maintenance,
or use can cause explosion, fire, electrical shock, or other
conditions which may cause death, personal injury, or property
damage. Consult a qualified installer, service agency, or your
distributor or branch for information or assistance. The qualified
installer or agency must use factory- -authorized kits or accessories
when modifying this product. Refer to the individual instructions
packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses, protective clothing,
and work gloves. Use quenching cloth for brazing operations.
Have fire extinguisher available. Read these instructions
thoroughly and follow all warnings or cautions included in
literature and attached to the unit. Consult local building codes and
current editions of the National Electrical Code (NEC) NFPA 70.
In Canada, refer to current editions of the Canadian electrical code
CSA 22.1.
Recognize safety information. This is the safety- -alert symbol
When you see this symbol on the unit and in instructions or
manuals, be alert to the potential for personal injury. Understand
these signal words; DANGER, WARNING, and CAUTION. These
words are used with the safety- -alert symbol. DANGER identifies
the most serious hazards which will result in severe personal injury
or death. WARNING signifies hazards which could result in
personal injury or death. CAUTION is used to identify unsafe
practices which would result in minor personal injury or product
and property damage. NOTE is used to highlight suggestions
which will result in enhanced installation, reliability, or operation.
WARNING
!
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal
injury or death.
Before installing, modifying, or servicing system, main
electrical disconnect switch must be in the OFF position.
There may be more than 1 disconnect switch. Lock out and
tag switch with a suitable warning label.
WARNING
!
EXPLOSION HAZARD
Failure to follow this warning could
result in death, serious personal injury,
and/or property damage.
Never use air or gases containing
oxygen for leak testing or operating
refrigerant compressors.
mixtures of air or gases containing
oxygen can lead to an explosion.

Installation Instructions

! !
Pressurized
GENERAL
NOTE: In some cases noise in the living area has been traced to
gas pulsations from improper installation of equipment.
1. Locate unit away from windows, patios, decks, etc. where
unit operation sound may disturb customer.
2. Ensure that vapor and liquid tube diameters are appropriate
for unit capacity.
3. Run refrigerant tubes as directly as possible by avoiding un-
necessary turns and bends.
4. Leave some slack between structure and unit to absorb vi-
bration.
5. When passing refrigerant tubes through the wall, seal open-
ing with RTV or other pliable silicon- -based caulk. (See Fig.
1.)
6. Avoid direct tubing contact with water pipes, duct work,
floor joists, wall studs, floors, and walls.
7. Do not suspend refrigerant tubing from joists and studs with
a rigid wire or strap which comes in direct contact with
tubing.(See Fig. 1.)
8. Ensure that tubing insulation is pliable and completely sur-
rounds vapor tube.
9. When necessary, use hanger straps which are 1 in. (25.4
mm) wide and conform to shape of tubing insulation. (See
Fig. 1.)
10. Isolate hanger straps from insulation by using metal sleeves
bent to conform to shape of insulation.
NOTE:
Avoid contact between tubing and structure
OUTDOOR WALL
CAULK
INSULATION
THROUGH THE WALL
HANGER STRAP
(AROUND VAPOR
TUBE ONLY)
1" (25.4 mm) MIN.
SUSPENSION
Fig. 1 - - Piping Installation
INDOOR WALL
LIQUID TUBE
VAPOR TUBE
JOIST
INSULATION
VAPOR TUBE
LIQUID TUBE
A94026

Advertisement

Table of Contents
loading

Summary of Contents for Bryant 105A

  • Page 1: Installation Instructions

    105A, 106A 113A; 114C; 116B SPLIT- - SYSTEM AIR CONDITIONER WITH PURONr REFRIGERANT SIZES 018 TO 060 Installation Instructions SAFETY CONSIDERATIONS GENERAL Improper installation, adjustment, alteration, service, maintenance, NOTE: In some cases noise in the living area has been traced to or use can cause explosion, fire, electrical shock, or other gas pulsations from improper installation of equipment.
  • Page 2: Installation

    For proper unit operation, check refrigerant charge using charging On rooftop applications, locate unit at least 6 in. (152.4 mm) above information located on control box cover and/or in the Check roof surface. Charge section of this instruction. Operating Ambient IMPORTANT: Maximum liquid- -line size is 3/8- -in.
  • Page 3 There are no buried- -line applications greater than 36- -in. (914.4 Install Liquid- - Line Filter Drier Indoor mm) allowed. CAUTION If refrigerant tubes or indoor coil are exposed to atmosphere, they must be evacuated to 500 microns to eliminate contamination and moisture in the system.
  • Page 4 not rubbing against each other or any sheet metal or wires. Pay Units with Indoor Piston close attention to feeder tubes, making sure wire ties on feeder Units installed with indoor pistons require charging by the tubes are secure and tight. superheat method.
  • Page 5 Table 2 – Rating Plate (required) Subcooling Temperatures R --- 410A Required Liquid Line Temperature _F (_C) Measure Liquid Pressure (_C) (_C) (_C) (_C) (_C) (_C) (psig)
  • Page 6 Table 3 – Superheat Charging - - AC Only EVAPORATOR ENTERING AIR TEMPERATURE (_F WB) OUTDOOR TEMP (_F) — — — — — — — — — — — — — — — — — — — — — — —...
  • Page 7: Make Electrical Connections

    Make Electrical Connections Final Wiring Check IMPORTANT: Check factory wiring and field wire connections Be sure field wiring complies with local and national fire, safety, to ensure terminations are secured properly. Check wire routing to and electrical codes, and voltage to system is within limits shown on unit rating plate.
  • Page 8: Check Charge

    (charge unit to nameplate subcooling). Unit 15 ft. (4.57 m) Line Set Charge lb (kg) Size 113A 114CNA 114CNC 105A 4.10 (1.86) 4.77 (2.16) 4.5 (2.04) 4.87 (2.21) 4.22 (1.91) 4.20 (1.91) 4.20 (1.91) 4.60 (2.09)
  • Page 9 Table 6 – Accessory Usage REQUIRED FOR REQUIRED FOR LOW --- AMBIENT REQUIRED FOR LONG LINE SEA COAST ACCESSORY COOLING APPLICATIONS APPLICATIONS* APPLICATIONS (Below 55F/12.8_C) (Within 2 miles/3.22 km) Ball Bearing Fan Motor Yes{ Compressor Start Assist Capacitor and Relay Crankcase Heater Evaporator Freeze Thermostat Hard Shut--- Off TXV...
  • Page 10 S Observe all warnings, cautions, and bold text. Catalog No. II114CNA ---CNC ---03 Bryant Heating & Cooling Systems 7310 W. Morris St. Indianapolis, IN 46231 Edition Date: 09/15 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
