Linksys WRP200 User Manual

Linksys WRP200 User Manual

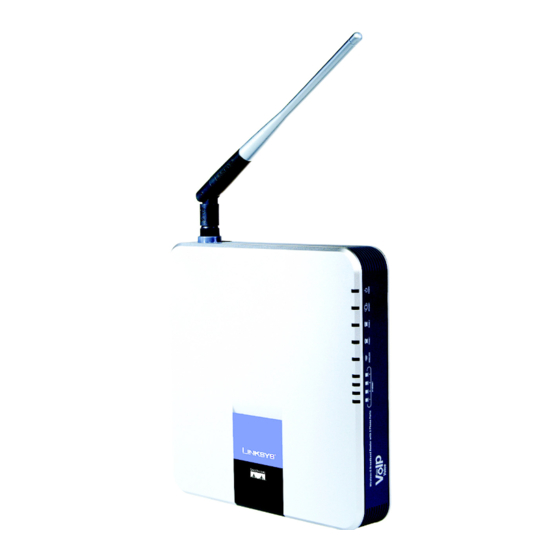

Wireless-g broadband router with 2 phone ports
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
A Division of Cisco Systems, Inc.
2.4
GHz
Wireless-G
802.11g

User Guide

Broadband Router
Voice
with 2 Phone Ports
WRP200
Model No.

Advertisement

Table of Contents
loading

Related Manuals for Linksys WRP200

Summary of Contents for Linksys WRP200

  • Page 1: User Guide

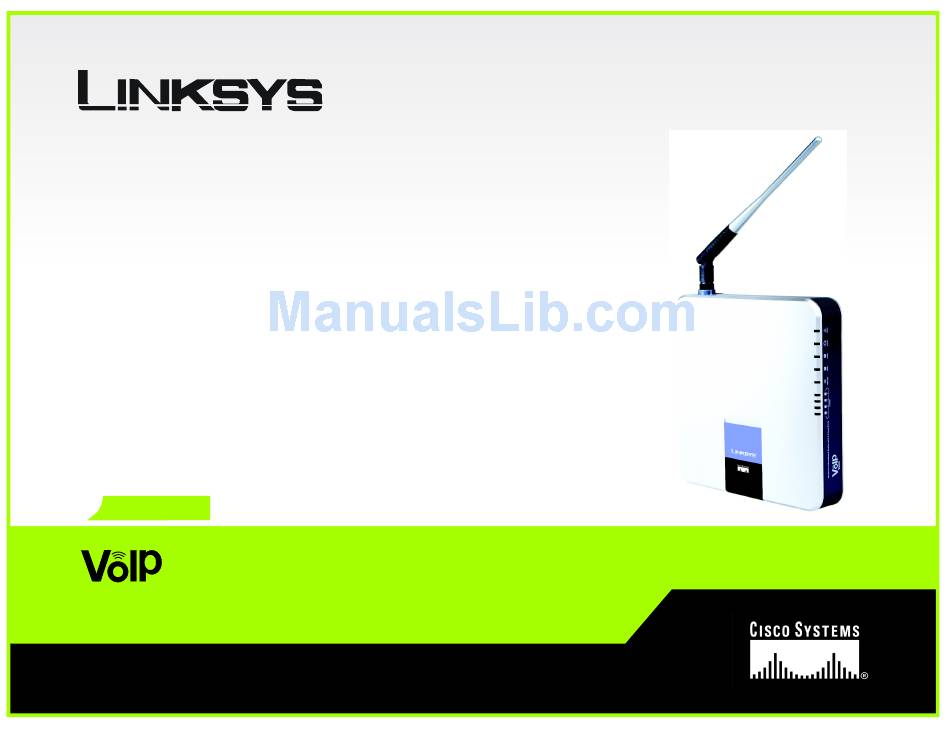

    ® A Division of Cisco Systems, Inc. Wireless-G 802.11g User Guide Broadband Router Voice with 2 Phone Ports WRP200 Model No.
